Super X11SSQ, Intel® 7th/6th Gen. i3/i5/i7, DVI+HDMi, HD Audio, 2x GB LAN,6x SATA3+R,D4(64GB),mATX
Starting atContact Sales
Key Features 1. Single socket H4 (LGA 1151) supports Intel® 6th Gen. Core i7/i5/i3 series, Intel® Celeron® and Intel® Pentium® processors 2. Intel® Q170 Express chipset 3. Up to 64GB DDR4 2133MHz Non-ECC Unbuffered UDIMM; 4 DIMM slots 4. 1 PCI-E 3.0 x16, 2 PCI-E 3.0 x4, 1 PCI-E 3.0 x1, M.2 PCIex2 M Key 2242/2280, PCIex4 w/ open slots 5. 1x GbE LAN w/ Intel® i210-AT, 1x GbE LAN w/ Intel® PHY i219LM 6. 6x SATA3 (6Gbps) via Q170; RAID 0, 1, 5, 10 Intel RST 7. HDMI, DP, DVI-D, 1 eDP, Intel HD Graphics, 3x independent displays 8. 1x SATA DOM, 4x COM ports, TPM header, ALC 888S HD Audio 7.1 9. 4x USB 3.0 (2 rear + 2 via header) 8x USB 2.0 (4 rear + 4 via headers)

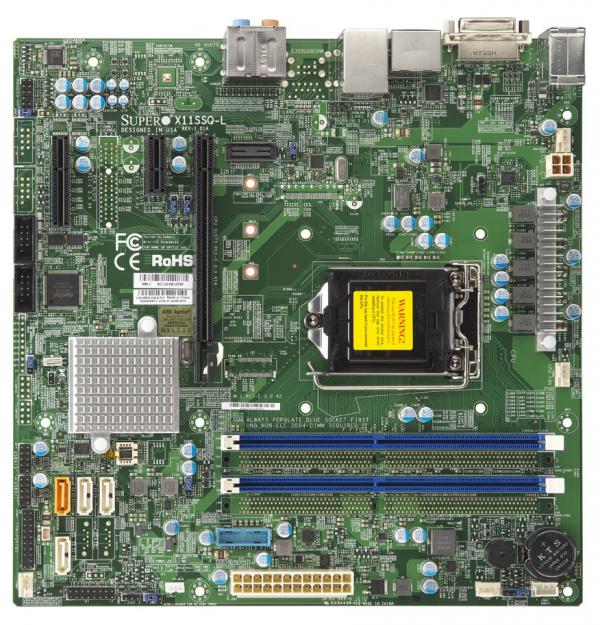

Super X11SSQ-L, Intel® 7th/6th Gen. i3/i5/i7, DVI+HDMi, HD Audio, 2x GB LAN,4x SATA3+R,D4(32GB),mATX
Starting atContact Sales
Key Features Single socket H4 (LGA 1151) supports Intel® 7th/6th Gen. Core i7/i5/i3 series, Intel® Celeron® and Intel® Pentium® Intel® H110 Chipset Up to 32GB Unbuffered Non-ECC UDIMM DDR4 2133MHz; 2 DIMM slots Expansion slots: 1 PCI-E 3.0 x16 1 PCI-E 2.0 x4 w/ open slots 1 PCI-E 2.0 x1 Intel® i219LM GbE LAN 4 SATA3 (6Gbps) via H110, Intel® RST HDMI, DP, DVI-D Intel HD Graphics 2 Independent Displays 1 SATA DOM, 2 COM ports, TPM header, ALC 888S HD Audio 7.1 4 USB 3.0 (2 rears + 2 via headers) 6 USB 2.0 (2 rears + 4 via headers)

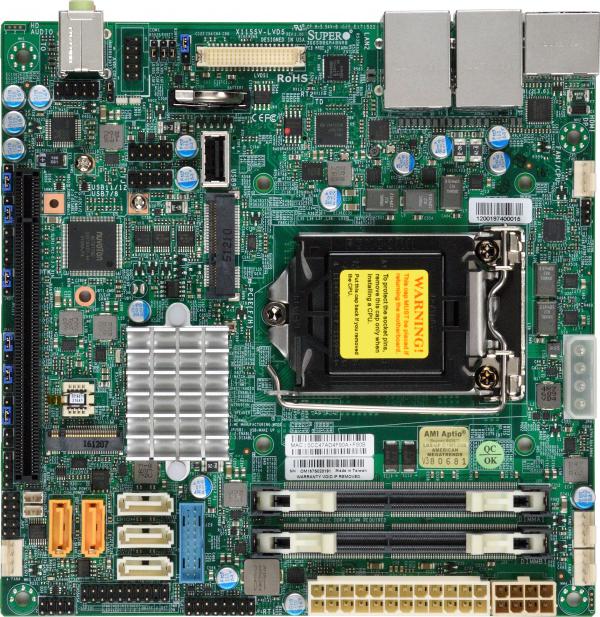

Super X11SSV-LVDS,Intel® 7th/6th Gen i3/i5/i7,Video,HD Audio+HDMi,2xGB LAN,5xSATA3+R,D4(32GB),12V DC
Starting atContact Sales
Key Features Single socket H4 (LGA 1151) supports Intel® 7th/6th Gen. Core i7/i5/i3 series, Intel® Celeron® and Intel® Pentium® Intel® Q170 Express chipset Up to 32GB Unbuffered Non-ECC SO-DIMM DDR4 2400MHz; 2 DIMM slots 1 PCI-E 3.0 x16, Mini-PCI-E (mSATA support) M.2 PCI-E 3.0 x4 (SATA support), M Key 2242/80 Dual GbE LAN w/ Intel i219LM + i210AT 1 HDMI, 1 DP, 1 LVDS, Intel HD Graphics 3 independent displays 5 SATA3 (6Gbps) via Q170; RAID 0, 1, 5, 10 2 SATA DOM, 1 COM,TPM header, ALC 888S HD Audio AMT, vPro Supports 12V DC power input
Super X11SSV-Q, Intel® 7th/6th Gen i3/i5/i7,Video,HD Audio+HDMi,2x GB LAN,5x SATA3+R,D4(32GB),mATX
Starting atContact Sales
Key Features 1. Single socket H4 (LGA 1151) supports Intel® 6th Gen. Core i7/i5/i3 series, Intel® Celeron® and Intel® Pentium® processors 2. Intel® Q170 Express chipset 3. Up to 32GB Unbuffered Non-ECC UDIMM DDR4 2133MHz; 2 DIMM slots 4. 1x PCI-E 3.0 x16, Mini-PCIe with mSATA support, M.2 PCIe 3.0 x4 with SATA support, 2242/2280 5. 1x GbE LAN w/ Intel® i210-AT, 1x GbE LAN w/ Intel® PHY i219LM 6. 5x SATA3 (6Gbps) via Q170; RAID 0, 1, 5, 10 7. HDMI, DP, DVI-I, Intel HD Graphics, 3x independent displays 8. 2x SATA DOM, 2x COM ports, TPM header, ALC 888S HD Audio 9. 6x USB 3.0 (4 rear + 2 via header) 5x USB 2.0 (4 via headers + 1 Type A)

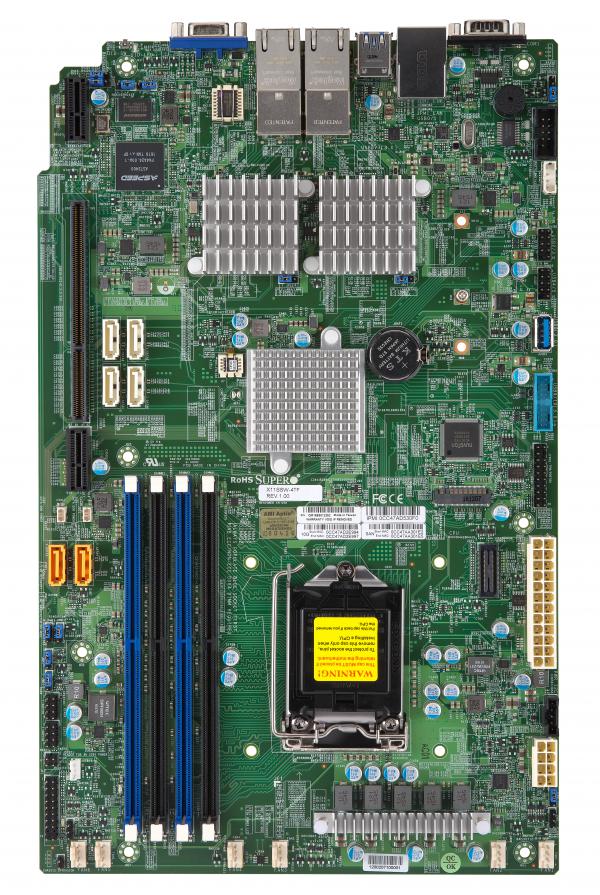

Super X11SSW-4TF, E3-1200v5 or i3, WIO, Video, 4x 10GB/X540, 6x SATA3+R, IPMI, D4(64GB)
Starting atContact Sales
Key Features Single socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v5, Intel® 6th Gen. Core¿ i3 series, Intel® Celeron® and Intel® Pentium® Intel® C236 chipset Up to 64GB Unbuffered ECC UDIMM DDR4 2133MHz; 4 DIMM slots Quad LAN w/ Intel® X540 10GBase-T Support Intel® VHD with selected CPU 6 SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10 I/O: 1 VGA, 2 COM, TPM header 5 USB 3.0 (2 rears, 2 via headers, 1 Type A), 6 USB 2.0 (2 rears, 4 via headers) 2 SuperDOM with built-in power M.2 NGFF connector
Super X11SSW-F, E3-1200v5 or i3, WIO, Video, 2x GB/i210 LAN, 6x SATA3+R, IPMI, D4(64GB)
Starting atContact Sales
Key Features 1. Single socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v5, Intel® 6th Gen. Core¿ i3 series, Intel® Celeron® and Intel® Pentium® 2. Intel® C236 chipset 3. Up to 64GB Unbuffered ECC UDIMM DDR4 2133MHz; 4x DIMM slots 4. Expansion slots: 1 PCI-E 3.0 x4 (in x16, Right Riser slot), 1 PCI-E 3.0 x16 (Left Riser slot) 5. Dual GbE LAN with Intel® i210-AT 6. 6x SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10 7. I/O: 1x VGA, 2x COM, TPM 1.2 header 8. 2x SuperDOM with built-in power 9. 5x USB 3.0 (2 rear + 2 via header + 1 Type A), 6x USB 2.0 (2 rear + 4 via headers) 10. M.2 NGFF connector

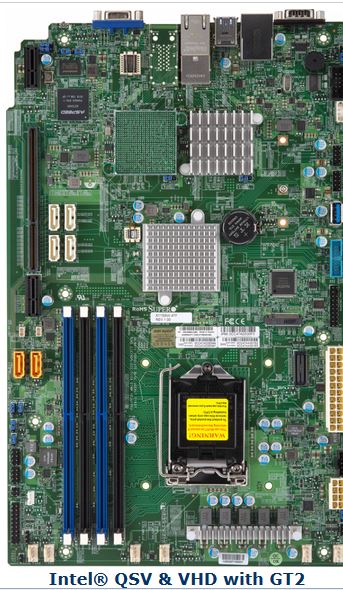

Super X11SSW-TF, E3-1200v5 or i3, WIO, Video, 2x 10GB/X540 LAN, 6x SATA3+R, IPMI, D4(64GB)
Starting atContact Sales
Key Features Single socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v5, Intel® 6th Gen. Core¿ i3 series, Intel® Celeron® and Intel® Pentium® Intel® C236 chipset Up to 64GB Unbuffered ECC UDIMM DDR4 2133MHz; 4 DIMM slots Intel® X540 Dual port 10GBase-T Support Intel® VHD with selected CPU 6 SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10 I/O: 1 VGA, 2 COM, TPM header 5 USB 3.0 (2 rears, 2 via headers, 1 Type A), 6 USB 2.0 (2 rears, 4 via headers) 2 SuperDOM with built-in power M.2 NGFF connector
Super X11SSZ-F, E3-1200v5 or i3/i5/i7, Video, HD Audio, 2x GB/i210, 4x SATA3+R,IPMI,DDR4(64GB),mATX
Starting atContact Sales
Key Features 1. Single socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v5, Intel® 6th Gen. Core¿ i7/i5/i3 series, Intel® Celeron® and Intel® Pentium® 2. Intel® C236 chipset 3. Up to 64GB DDR4 2133MHz ECC/non- ECC Unbuffered UDIMM; 4x DIMM slots 4. Expansion slots: 1 PCI-E 3.0 x16 (in x16), 2 PCI-E 3.0 x4 (in x8) 5. 1 GbE LAN with Intel® i210-AT 1 GbE LAN with Intel® PHY i219LM 6. 4x SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10 7. 2x DP, 1 DVI-I, 3x independent displays via Intel HD Graphics, VGA port for BMC 8. I/O: 1x SATA DOM, 2x COM, TPM 1.2 header, ALC 888S HD Audio 9. 4x USB 3.0 (2 rear + 2 via header) 9x USB 2.0 (2 rear + 6 via headers + 1 Type A) 10. Support 12V DC power 11. AMT 11.0
Super X11SSZ-QF, Pentium-i3/i5/i7, Video, HD Audio, 2x GB/i210, 4x SATA3+R,IPMI,DDR4(64GB),mATX
Starting atContact Sales
Key Features 1. Single socket H4 (LGA 1151) supports Intel® 6th Gen. Core i7/i5/i3 series, Intel® Celeron® and Intel® Pentium® processors 2. Intel® Q170 Express chipset 3. Up to 64GB DDR4 2133MHz Non-ECC Unbuffered UDIMM; 4 DIMM slots 4. 1x PCI-E 3.0 x16 (in x16), 2x PCI-E 3.0 x4 (in x8) 5. 1x GbE LAN w/ Intel® i210-AT, 1x GbE LAN w/ Intel® PHY i219LM 6. 4x SATA3 (6Gbps) via Q170; RAID 0, 1, 5, 10 7. 2x DP, 1 DVI-I, Intel HD Graphics, with 3x independent displays, VGA for BMC AST2400 8. 1x SATA DOM, 2x COM, TPM header, ALC 888S HD Audio front panel header 9. 4x USB 3.0 (2 rear + 2 via header) 9x USB 2.0 (2 rear + 6 via headers + 1 Type A)
Super X11SSZ-TLN4F, E3-1200v5 or i3/i5/i7,Video,HD Audio,2x 10GB/X550+2x GB,4x SATA3+R,IPMI,D4(64GB)
Starting atContact Sales
Key Features 1. Single socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v5, Intel® 6th Gen. Core¿ i7/i5/i3 series, Intel® Celeron® and Intel® Pentium® 2. Intel® C236 chipset 3. Up to 64GB DDR4 2133MHz ECC/non- ECC Unbuffered UDIMM; 4x DIMM slots 4. Expansion slots: 1x PCI-E 3.0 x16 (in x16), 2x PCI-E 3.0 x4 (in x8) 5. Dual 10GbE and dual GbE LAN ports 6. 4x SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10 7. 2x DP, 1 DVI-I, 3x independent displays via Intel HD Graphics, VGA port for BMC 8. I/O: 1x SATA DOM, 2x COM, TPM 1.2 header, ALC 888S HD Audio 9. 4x USB 3.0 (2 rear + 2 via header) 9x USB 2.0 (2 rear + 6 via headers + 1 Type A) 10. Support 12V DC power 11. AMT 11.0
Super X11SSi-LN4F, E3-1200v5 or i3, 3x PCI-e, Video, 4x GB/i210 LAN, 6x SATA3+R, IPMI, D4(64GB), ATX
Starting atContact Sales
Key Features 1. Single socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v5, Intel® 6th Gen. Core¿ i3 series, Intel® Celeron® and Intel® Pentium® 2. Intel® C236 chipset 3. Up to 64GB Unbuffered ECC UDIMM DDR4 2133MHz; 4x DIMM slots 4. Expansion slots: 1 PCI-E 3.0 x8 (in x16), 1 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8) 5. Quad GbE LAN with Intel® i210-AT 6. 6x SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10 7. I/O: 1x VGA, 2x COM, TPM 1.2 header 8. 2x SuperDOM with built-in power 9. 5x USB 3.0 (2 rear + 2 via header + 1 Type A), 6x USB 2.0 (2 rear + 4 via headers) 10. M.2 NGFF connector
Tyan S5542WGM2NR CX S5542 E3-1200V6 V5 C232 LGA1151 DDR4 PCIE
Starting atContact Sales
12" x 9.6" ATX Form Factor 4 U-DDR4 DIMM Slots C232 PCH 2 onboard GbE LAN 3 PCIe Gen3 Slots 6 SATA 6Gb/s and 8 SAS 12Gb/s Ports IPMI 2.0 with Dedicated Management Port
Tyan Tempest EX S5545 (S5545AG2NR) LGA1151/ Intel Q170 PCH/ SATA3/ V&A&2GbE/ MicroATX Motherboard
Starting atContact Sales
Mfr Part Number: S5545AG2NR CPU: LGA1151 Supports 7th/6th Generation Intel Core i7/ i5/ i3 Processors Supports up to 95W TDP Chipset: Intel Q170 PCH Memory: 4x DDR4-2400/2133 DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 64GB Slots: 1x PCI-Express 3.0 x16 Slot, 1x PCI-Express 3.0 x8 (w/ x4 link) Slot, 1x PCI-Express 3.0 x1 Slot SATA: 6x SATA3 Ports, Supports RAID 0, 1, 5, 10 Video: Intel Processor Graphics (pGFX) Audio: Realtek ALC892-GR 7.1-Channel High Definition Audio CODEC LAN: 2x I210-AT Gigabit Ethernet Controllers Ports: 7x USB 3.0 Ports (4 rear, 2 via cable, 1 Type-A), 4x USB 2.0 Ports (2 rear, 2 via cable), 2x Display Ports, 1x DVI-D Port, 2x RJ45 LAN Ports, Audio Jacks Form Factor: MicroATX, 9.6 x 9.6 in / 243.8 x 243.8 mm RoHS Compliant
