Supermicro X11SDV-12C-TLN2F, D-2141i/8C/8T, PCI-e, Video, 2x 10GB/X557, 8x SATA3+R, IPMI,DDR4(256GB)
Starting atContact Sales
Key Features Intel® Xeon® Processor D-2166NT, 12-Core, 24 Threads, 85W System on Chip Up to 256GB Registered ECC RDIMM or 512GB ECC LRDIMM, DDR4-2666MHz in 4 DIMM slots 1 PCI-E 3.0 x8 1 PCI-E 3.0 x4 NVMe Internal Port via OCuLink Dual LAN with 10GBase-T with Intel® X557 Up to 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10 4 SATA ports via OCuLink (or PCIE3.0 x4 for NVMe) 2 USB 3.0 ports (rear) 2 USB 2.0 ports (via header) 12V DC or ATX Power Input
Supermicro X11SDV-12C-TP8F,D-2146NT/TDP,PCI-e,Video,4xGB/2x10GB+2x10G/SFP+,12xSATA3+R,IPMI,D4(256GB)
Starting atContact Sales
Key Features Intel® Xeon® Processor D-2166NT, CPU TDP support 85W System on Chip Up to 256GB Registered ECC RDIMM, DDR4-2133MHz; Up to 512GB LRDIMM LRDIMM, in 4 DIMM slots 1 PCI-E 3.0 x8, 1 PCI-E 3.0 x16 M.2 Interface: 1 PCI-E 3.0 x4 and 1 SATA/PCI-E 3.0 x2 M.2 Form Factor: 2242/2280 M.2 Key: M-Key, B-Key U.2 Interface: 2 PCI-E 3.0 x4, 2 PCI-E 3.0 NVMe x4 Internal Port(s) 1 VGA D-Sub Connector port SoC controller for 12 SATA3 (6 Gbps) ports; RAID 0,1,5,10 Quad LAN with Intel® Ethernet Controller I350-AM4 Dual LAN with 10G SFP+ LAN via SoC Dual LAN with 10Gbase-T

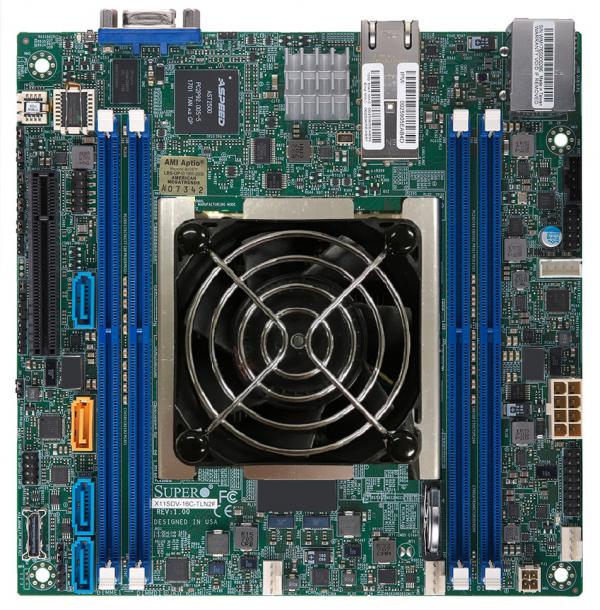

Supermicro X11SDV-16C+-TLN2F, D-2141i/16C/32T, PCI-e, Video,2x 10GB/X557,8x SATA3+R,IPMI,DDR4(512GB)
Starting atContact Sales
Key Features Intel® Xeon® Processor D-2183IT, 16-Core, 32 Threads, 100W System on Chip Up to 256GB Registered ECC RDIMM or 512GB ECC LRDIMM, DDR4-2400MHz in 4 DIMM slots 1 PCI-E 3.0 x8 1 PCI-E 3.0 x4 NVMe Internal Port via OCuLink Dual LAN with 10GBase-T with Intel® X557 Up to 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10 4 SATA ports via OCuLink (or PCIE3.0 x4 for NVMe) 2 USB 3.0 ports (rear) 2 USB 2.0 ports (via header) 12V DC or ATX Power Input
Supermicro X11SDV-16C-TLN2F, D-2141i/8C/8T, PCI-e, Video, 2x 10GB/X557, 8x SATA3+R, IPMI,DDR4(256GB)
Starting atContact Sales
Key Features Intel® Xeon® Processor D-2183IT, 16-Core, 32 Threads, 100W System on Chip Up to 256GB Registered ECC RDIMM or 512GB ECC LRDIMM, DDR4-2666MHz in 4 DIMM slots 1 PCI-E 3.0 x8 1 PCI-E 3.0 x4 NVMe Internal Port via OCuLink Dual LAN with 10GBase-T with Intel® X557 Up to 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10 4 SATA ports via OCuLink (or PCIE3.0 x4 for NVMe) 2 USB 3.0 ports (rear) 2 USB 2.0 ports (via header) 12V DC or ATX Power Input

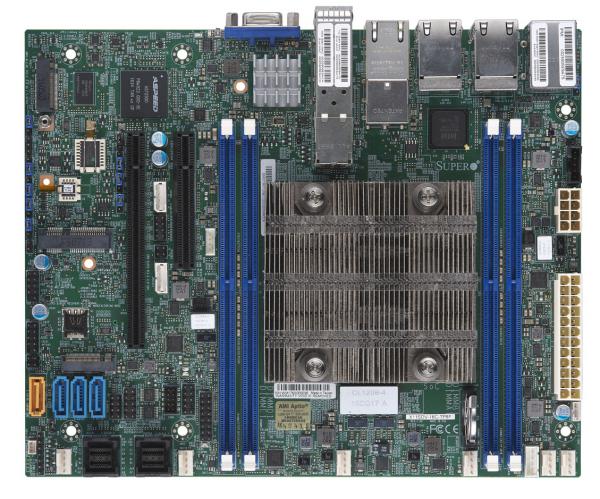

Supermicro X11SDV-16C-TP8F,D-2146NT/TDP,PCI-e,Video,4xGB/2x10GB+2x10G/SFP+,12xSATA3+R,IPMI,D4(256GB)
Starting atContact Sales
Key Features Intel® Xeon® Processor D-2183IT, CPU TDP support 100W System on Chip Up to 256GB Registered ECC RDIMM, DDR4-2400MHz; Up to 512GB LRDIMM LRDIMM, in 4 DIMM slots 1 PCI-E 3.0 x8, 1 PCI-E 3.0 x16 M.2 Interface: 1 PCI-E 3.0 x4 and 1 SATA/PCI-E 3.0 x2 M.2 Form Factor: 2242/2280 M.2 Key: M-Key, B-Key U.2 Interface: 2 PCI-E 3.0 x4, 2 PCI-E 3.0 NVMe x4 Internal Port(s) 1 VGA D-Sub Connector port SoC controller for 12 SATA3 (6 Gbps) ports; RAID 0,1,5,10 Quad LAN with Intel® Ethernet Controller I350-AM4 Dual LAN with 10G SFP+ LAN via SoC Dual LAN with 10Gbase-T

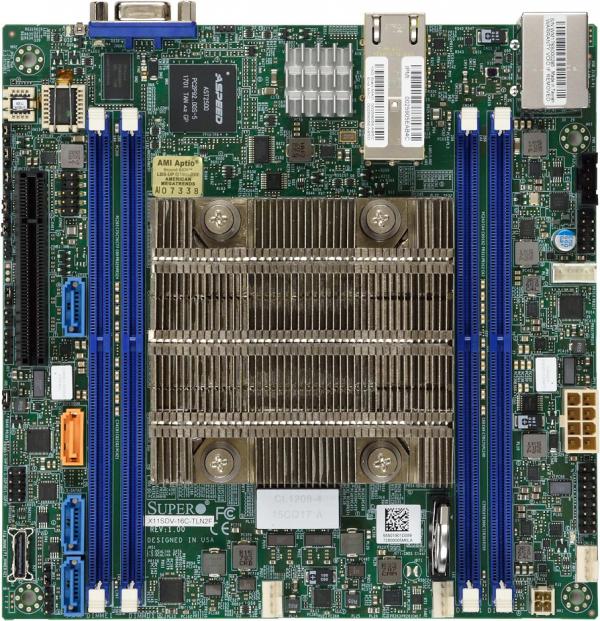

Supermicro X11SDV-4C-TLN2F, D-2123iT/4C/8T, PCI-e, Video, 2x 10GB/X557, 8x SATA3+R, IPMI,DDR4(256GB)
Starting atContact Sales
Key Features Intel® Xeon® Processor D-2123IT, 4-Core, 8 Threads, 60W System on Chip Up to 256GB Registered ECC RDIMM or 512GB ECC LRDIMM, DDR4-2666MHz in 4 DIMM slots 1 PCI-E 3.0 x8 1 PCI-E 3.0 x4 NVMe Internal Port via OCuLink Dual LAN with 10GBase-T with Intel® X557 Up to 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10 4 SATA ports via OCuLink (or PCIE3.0 x4 for NVMe) 2 USB 3.0 ports (rear) 2 USB 2.0 ports (via header) 12V DC or ATX Power Input
Supermicro X11SDV-8C+-TLN2F, D-2141i/8C/16T, PCI-e, Video, 2x 10GB/X557, 8x SATA3+R,IPMI,DDR4(512GB)
Starting atContact Sales
Key Features Intel® Xeon® Processor D-2141I, 8-Core, 16 Threads, 65W System on Chip Up to 256GB Registered ECC RDIMM or 512GB ECC LRDIMM, DDR4-2133MHz in 4 DIMM slots 1 PCI-E 3.0 x8 1 PCI-E 3.0 x4 NVMe Internal Port via OCuLink Dual LAN with 10GBase-T with Intel® X557 Up to 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10 4 SATA ports via OCuLink (or PCIE3.0 x4 for NVMe) 2 USB 3.0 ports (rear) 2 USB 2.0 ports (via header) 12V DC or ATX Power Input
Supermicro X11SDV-8C-TLN2F, D-2141i/8C/8T, PCI-e, Video, 2x 10GB/X557, 8x SATA3+R, IPMI,DDR4(256GB)
Starting atContact Sales
Key Features Intel® Xeon® Processor D-2141I, 8-Core, 16 Threads, 65W System on Chip Up to 256GB Registered ECC RDIMM or 512GB ECC LRDIMM, DDR4-2666MHz in 4 DIMM slots 1 PCI-E 3.0 x8 1 PCI-E 3.0 x4 NVMe Internal Port via OCuLink Dual LAN with 10GBase-T with Intel® X557 Up to 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10 4 SATA ports via OCuLink (or PCIE3.0 x4 for NVMe) 2 USB 3.0 ports (rear) 2 USB 2.0 ports (via header) 12V DC or ATX Power Input

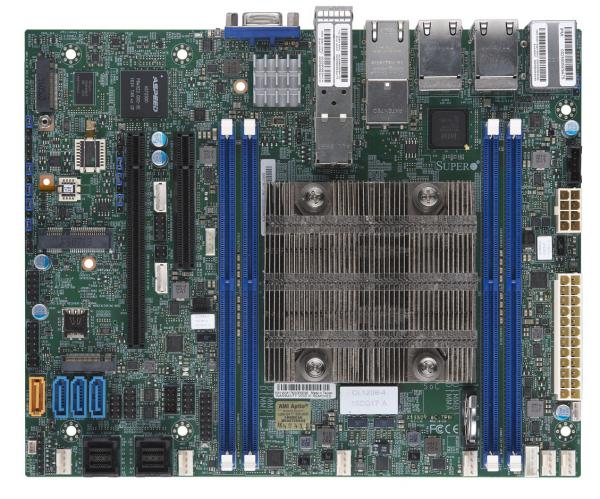

Supermicro X11SDV-8C-TP8F,D-2146NT/TDP,PCI-e,Video,4xGB/2x10GB+2x10G/SFP+,12x SATA3+R,IPMI,D4(256GB)
Starting atContact Sales
Key Features Intel® Xeon® Processor D-2146NT, CPU TDP support 80W System on Chip Up to 256GB Registered ECC RDIMM, DDR4-2133MHz; Up to 512GB LRDIMM LRDIMM, in 4 DIMM slots 1 PCI-E 3.0 x8, 1 PCI-E 3.0 x16 M.2 Interface: 1 PCI-E 3.0 x4 and 1 SATA/PCI-E 3.0 x2 M.2 Form Factor: 2242/2280 M.2 Key: M-Key, B-Key U.2 Interface: 2 PCI-E 3.0 x4, 2 PCI-E 3.0 NVMe x4 Internal Port(s) 1 VGA D-Sub Connector port SoC controller for 12 SATA3 (6 Gbps) ports; RAID 0,1,5,10 Quad LAN with Intel® Ethernet Controller I350-AM4 Dual LAN with 10G SFP+ LAN via SoC Dual LAN with 10Gbase-T
