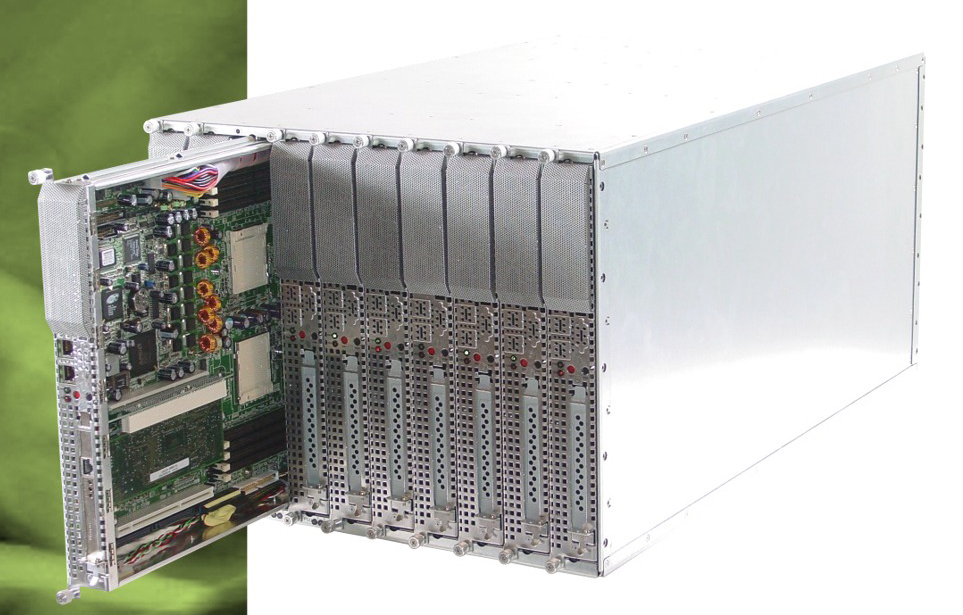

AIC RBS8A , 8U, 10 x M/B trays, 10 x 350W P.S, 120W Redundant P.S for the system fans
Starting atContact Sales
AIC RMC5E2-PI-XPE, 5U RM, 24x HS+2x Int IDE Bays, w/2+1 650W EPS
Starting atContact Sales
Material: Heavy-duty cold-rolled steel with bright chromate finishing inside Dimension: 19" (W) x25.4" (D) x 8.25" (H) Cooling: 2x120mm Hot-swap Blowers + 2x60mm fans Power Supply: 950W 3+1 or 650W 2+1 EPS-12V redundant Power Supplies PCI Extension: 7 full-size Slots Controls: Power on/off and system reset + 2xUSB + RJ45 Console Indicators: 1xPower + 2xHDD + 2xLAN LEDs System Boards: 12¿ x 13¿ ATX or SSI EEB 3.0 Server Boards Drive Bay: 24x hot-swappable SATA,P/SATA or SCSI + 1xSlim CD + 1x3.5" + 1x5.25" Exposed + 2xInternal HDD drive bays Temperature: 0 °C(32 F) - 50 °C(122 F) Humidity: 5% - 95% non-condensing
AIC RMC5E2-PI-XPS, 5U RM, 24x HS+2x Int SCSI Bays, w/2+1 650W EPS
Starting atContact Sales
Material: Heavy-duty cold-rolled steel with bright chromate finishing inside Dimension: 19" (W) x25.4" (D) x 8.25" (H) Cooling: 2x120mm Hot-swap Blowers + 2x60mm fans Power Supply: 950W 3+1 or 650W 2+1 EPS-12V redundant Power Supplies PCI Extension: 7 full-size Slots Controls: Power on/off and system reset + 2xUSB + RJ45 Console Indicators: 1xPower + 2xHDD + 2xLAN LEDs System Boards: 12¿ x 13¿ ATX or SSI EEB 3.0 Server Boards Drive Bay: 24x hot-swappable SATA,P/SATA or SCSI + 1xSlim CD + 1x3.5" + 1x5.25" Exposed + 2xInternal HDD drive bays Temperature: 0 °C(32 F) - 50 °C(122 F) Humidity: 5% - 95% non-condensing
AIC RMC5E2-PI-XPSS, 5U RM, 24x HS+2x Int SATA Bays, w/2+1 650W EPS
Starting atContact Sales
Material: Heavy-duty cold-rolled steel with bright chromate finishing inside Dimension: 19" (W) x25.4" (D) x 8.25" (H) Cooling: 2x120mm Hot-swap Blowers + 2x60mm fans Power Supply: 950W 3+1 or 650W 2+1 EPS-12V redundant Power Supplies PCI Extension: 7 full-size Slots Controls: Power on/off and system reset + 2xUSB + RJ45 Console Indicators: 1xPower + 2xHDD + 2xLAN LEDs System Boards: 12¿ x 13¿ ATX or SSI EEB 3.0 Server Boards Drive Bay: 24x hot-swappable SATA,P/SATA or SCSI + 1xSlim CD + 1x3.5" + 1x5.25" Exposed + 2xInternal HDD drive bays Temperature: 0 °C(32 F) - 50 °C(122 F) Humidity: 5% - 95% non-condensing
AIC RMC5E2-QI-XPE, 5U RM, 24x HS+2x Int IDE Bays, w/3+1 950W EPS
Starting atContact Sales
Material: Heavy-duty cold-rolled steel with bright chromate finishing inside Dimension: 19" (W) x25.4" (D) x 8.25" (H) Cooling: 2x120mm Hot-swap Blowers + 2x60mm fans Power Supply: 950W 3+1 or 650W 2+1 EPS-12V redundant Power Supplies PCI Extension: 7 full-size Slots Controls: Power on/off and system reset + 2xUSB + RJ45 Console Indicators: 1xPower + 2xHDD + 2xLAN LEDs System Boards: 12¿ x 13¿ ATX or SSI EEB 3.0 Server Boards Drive Bay: 24x hot-swappable SATA,P/SATA or SCSI + 1xSlim CD + 1x3.5" + 1x5.25" Exposed + 2xInternal HDD drive bays Temperature: 0 °C(32 F) - 50 °C(122 F) Humidity: 5% - 95% non-condensing
AIC RMC5E2-QI-XPS, 5U RM, 24x HS+2x Int SCSI Bays, w/3+1 950W EPS
Starting atContact Sales
Material: Heavy-duty cold-rolled steel with bright chromate finishing inside Dimension: 19" (W) x25.4" (D) x 8.25" (H) Cooling: 2x120mm Hot-swap Blowers + 2x60mm fans Power Supply: 950W 3+1 or 650W 2+1 EPS-12V redundant Power Supplies PCI Extension: 7 full-size Slots Controls: Power on/off and system reset + 2xUSB + RJ45 Console Indicators: 1xPower + 2xHDD + 2xLAN LEDs System Boards: 12¿ x 13¿ ATX or SSI EEB 3.0 Server Boards Drive Bay: 24x hot-swappable SATA,P/SATA or SCSI + 1xSlim CD + 1x3.5" + 1x5.25" Exposed + 2xInternal HDD drive bays Temperature: 0 °C(32 F) - 50 °C(122 F) Humidity: 5% - 95% non-condensing
AIC RMC5E2-QI-XPSM, 5U RM, 24x HS+2x Int SATA Bays, w/3+1 950W EPS
Starting atContact Sales
Material: Heavy-duty cold-rolled steel with bright chromate finishing inside Dimension: 19" (W) x25.4" (D) x 8.25" (H) Cooling: 2x120mm Hot-swap Blowers + 2x60mm fans Power Supply: 950W 3+1 or 650W 2+1 EPS-12V redundant Power Supplies PCI Extension: 7 full-size Slots Controls: Power on/off and system reset + 2xUSB + RJ45 Console Indicators: 1xPower + 2xHDD + 2xLAN LEDs System Boards: 12¿ x 13¿ ATX or SSI EEB 3.0 Server Boards Drive Bay: 24x hot-swappable SATA,P/SATA or SCSI + 1xSlim CD + 1x3.5" + 1x5.25" Exposed + 2xInternal HDD drive bays Temperature: 0 °C(32 F) - 50 °C(122 F) Humidity: 5% - 95% non-condensing
AIC RMC5E2-QI-XPSS, 5U RM, 24x HS+2x Int SATA Bays, w/3+1 950W EPS
Starting atContact Sales
Material: Heavy-duty cold-rolled steel with bright chromate finishing inside Dimension: 19" (W) x25.4" (D) x 8.25" (H) Cooling: 2x120mm Hot-swap Blowers + 2x60mm fans Power Supply: 950W 3+1 or 650W 2+1 EPS-12V redundant Power Supplies PCI Extension: 7 full-size Slots Controls: Power on/off and system reset + 2xUSB + RJ45 Console Indicators: 1xPower + 2xHDD + 2xLAN LEDs System Boards: 12¿ x 13¿ ATX or SSI EEB 3.0 Server Boards Drive Bay: 24x hot-swappable SATA,P/SATA or SCSI + 1xSlim CD + 1x3.5" + 1x5.25" Exposed + 2xInternal HDD drive bays Temperature: 0 °C(32 F) - 50 °C(122 F) Humidity: 5% - 95% non-condensing

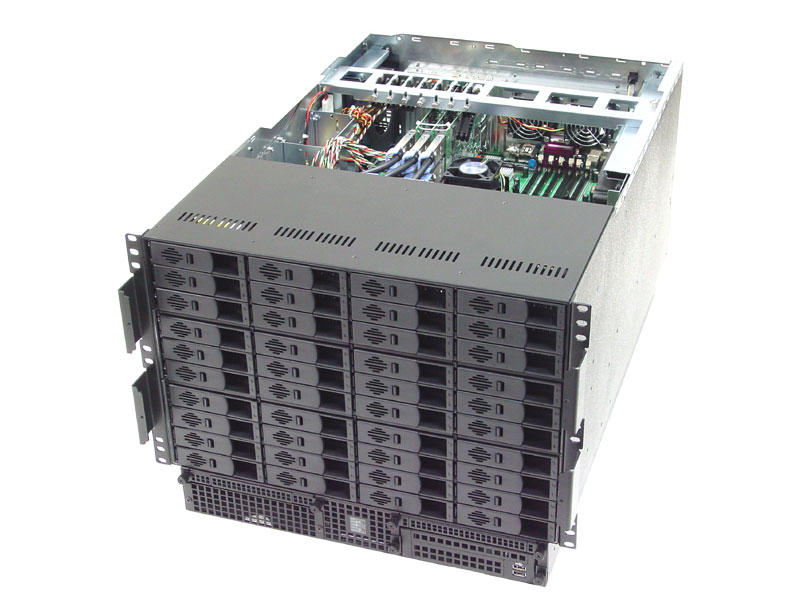

AIC RMC8E, 8U RM, 40x HS SATA(Multi-Lane BP)+2x 5.25"/1x 3.5" Slim Bays, 1350W(3+1) P.S
Starting atContact Sales
Material: Heavy-duty cold-rolled steel. Inside: zinc-plated with bright chromate, Outside: texture-coated Dimension: 19"(W) x 27"(D) x 12.25"(H) Cooling: 5 x 120mm hot-swap blower + 2 x 60 x 38mm easy-swap fans Power Supply: 1300W 3+1 hot-swap redundant power supply PCI Extension: 7 full-length slots Controls: Power on/off and system reset, and Dual USB Indicators: Power, LAN and HDD LED's System Boards: 12"(W) x 13"(D) M/B, or 16" x 13" Quad processor MB Drive Bay: 2 x 5.25" slim + 1 x 3.5" slim + 1 x 3.5" + 1 x 5.25" + 40 x Hot-swap SATA/SCSI + 2 x Hot-swap (rear facing) SATA OS drive bays Temperature: 0°C(32°F)~ 50°C(122°F) Humidity: 5%~95% non-condensing

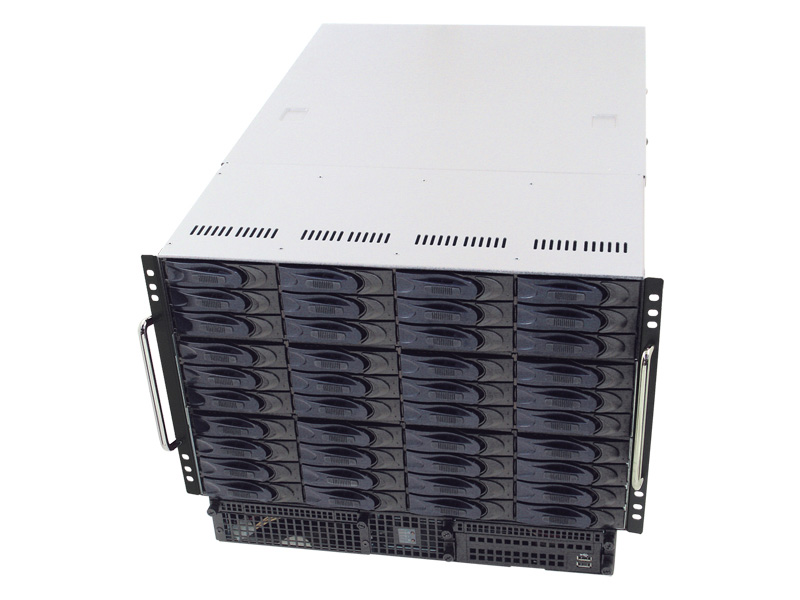

AIC RMC8E2-RI-XPSM, 8U RM, 40x HS+2x HS/Rear Facing SATA Bays, w/3+1 1350W EPS
Starting atContact Sales
AIC RMC8E2-RI-XPSM, 8U RM, 40x HS+2x HS/Rear Facing SATA Bays, w/3+1 1300W EPS: Dimension: 19"(W) x 27"(D) x 14 "(H) Drive Bays: 2 x slim CD + 1 x slim FDD + 3.5" + 5.25" + 40 x hot-swap SATA/SCSI + 2 x hot-swap (rear facing) SATA OS drive bays Power Supply: 1350W 3+1 redundant power supplies Motherboard: Dual AMD Opteron or Dual Intel Nocona Capable Storage: 10TB
AIC RSC-8ED, 8U RM, 40x HS+2x HS/Rear Facing SAS/SATA Bays, 1350W(3+1) P.S
Starting atContact Sales
Features & Benefits RSC-8ED-0 is designed for Enterprise Storage, Disk-to-disk Backup or Tape Virtualization Applications. It supports 3ware® SATA Multilane backplane and dual-processor Boards. Optional Quad-processor versions are available for Tyan® S4882¿ and Iwill® QK8S¿ server boards.
Antec 5U Rackmount, 20 Slots, 2x400W
Starting atContact Sales
5U Rackmount, ATX full size, 20 Card Slot, 400W Redundant Power supply
Antec 5U Rackmount, 7 Slots, 2x400W
Starting atContact Sales
5U Rackmount, ATX full size 7 Card Slot, Swappable Power Supply

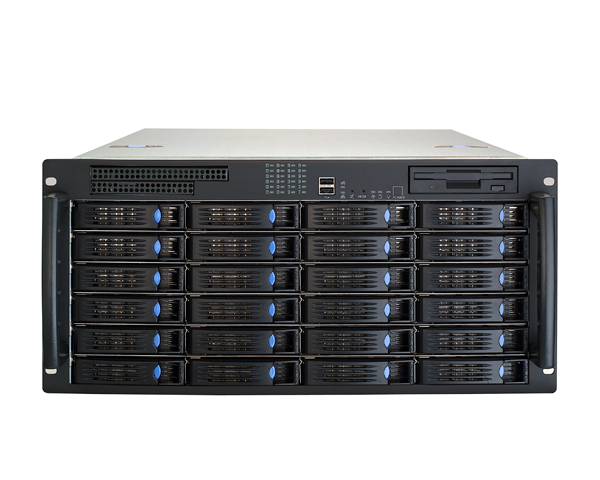

Chenbro RM51924-ML, 5U RM, 24x HS SATA/1x Slim CD & FDD Ext Bays, 1350W(2+1) P.S
Starting atContact Sales
* Removable M/B carrier for easy cabling and installation * Internal 1 x 3.5" or 2 x 2.5" HDDs with Chenbro storage kit SK41203 * User-friendly design for easy installation Removable M/B carrier Screwless fans Screwless hot-swap trays Screwless top cover * Outstanding thermal solution Hot-swap 5 x 80 mm upper middle fans Hot-swap 3 x 80 mm lower middle fans Up to 2 x 80 mm rear fans Redundant 2 + 1 or 3 + 1 PSU * Compatible backplanes available for cost-saving Optional Mini-SAS backplane Optional SATAII/SAS backplane * Application references -Best recommended Corporate File Server Data Retention and Archives Data Warehousing System DB/File Server Media/Streaming Server Security & Surveillance System Video-on-Demand -Selectable solution Application Server (ERP/Groupware) Digital Image Capture

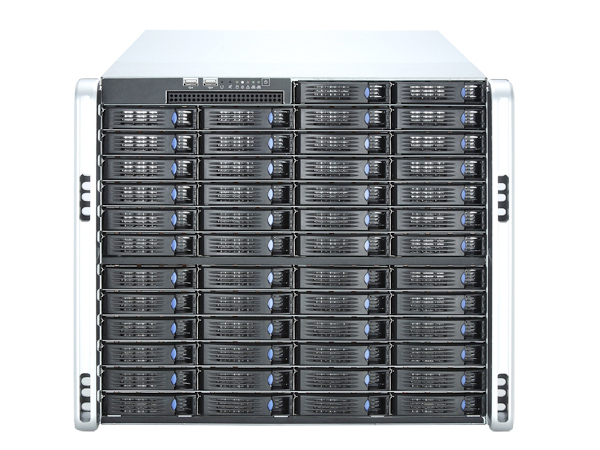

Chenbro RM91250-ML, 9U RM, 50x HS SAS/SATA/1x Slim CD Ext Bays, 1620W(2+1) P.S
Starting atContact Sales
* Unprecedented chassis in market * Up to 50 HDDs capacity Front 2 x SATAII/SAS HDDs for OS Support Extended ATX (16¿ x 13¿) Quad M/B * Anti-shock mechanism with high performance middle fans Innovative fan bar with rubbers Enforcing card holder * Optimized layout for front access slim ODD and I/O * User-friendly design for easy installation Relative screw to each backplane module Screwless 4 x 80 mm hot-swap middle fans Easy-assembly fan bar Easy-to-carry handle * Compatible with Chenbro universal SAS expander & RAID card solution * Compatible backplanes with Chenbro chassis for cost-saving Mini-SAS module backplane * Application references -Best recommended Corporate File Server Data Retention and Archives Data Warehousing System DB/File Server Media/Streaming Server Security & Surveillance System Video-on-Demand -Selectable solution Application Server (ERP/Groupware) Digital Image Capture

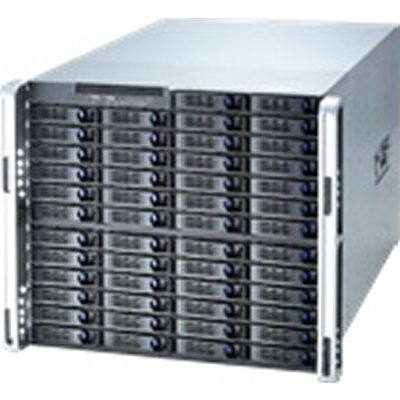

Chenbro RM91250M2-R1620G, 9U RM, SAS Exp, 50x HS SAS/SATA/1x Slim CD Ext Bays, 1620W(2+1) P.S
Starting atContact Sales
Features & Benefits · Unprecedented chassis, ideal for broadcasting business · Fully utilized space to support 50 x 3.5" hot-swap HDDs · Support up to MEB(16" x 13") Quad M/B · Easy-assembly fan bar with anti-vibration design · Relative screw to each backplane module for easy assembly · Optional Chenbro SAS expanders for cost-saving solutions
CiDesign SR524-SCSI, 5U, 24 Bays SCSI U320, 2 Channel, 900W 2+1 Redundant P.S
Starting atContact Sales
The 5U 24-bay SR 524 rack mountable storage enclosure is designed for storage subsystem and supports up to twenty-four hot-swappable hard disk drives. The server model allows support for an ATX and SSI EEB 3.0 compliant server board 12.0" x 13.0" in size. The storage model allows for an internal mount storage controller or external mount 5 1/4" RAID or NAS controller.
CiDesign SR525-SATA, 5U RM, 24x HS SATA Bays, 930W(2+1) P.S
Starting atContact Sales
The 5U 24-bay SR 524 rack mountable storage enclosure is designed for storage subsystem and supports up to twenty-four hot-swappable hard disk drives. The server model allows support for an ATX and SSI EEB 3.0 compliant server board 12.0" x 13.0" in size. The storage model allows for an internal mount storage controller or external mount 5 1/4" RAID or NAS controller.
CiDesign SR525-SCSI, 5U RM, 24x HS SCSI Bays, 3x CHs, 930W(2+1) P.S
Starting atContact Sales
The 5U 24-bay SR 524 rack mountable storage enclosure is designed for storage subsystem and supports up to twenty-four hot-swappable hard disk drives. The server model allows support for an ATX and SSI EEB 3.0 compliant server board 12.0" x 13.0" in size. The storage model allows for an internal mount storage controller or external mount 5 1/4" RAID or NAS controller.
CiDesign SR850, 8U RM, 50x HS SAS/SATA Bays, mini SAS, 1500W(1+1) P.S
Starting atContact Sales
The 8U SR 850 rack mountable storage enclosure is designed for storage server system and supports up to 50 hot-swappable hard disk drives. The server model supports Intel® Dual/Quad core Xeon or AMD® Quad Opteron compliant server board 13.0" x 16.0" size. The storage model supports an external mount 5 1/4" RAID . Dimensions 14" (H) x 19" (W) x 29" (D) No. of Hard Drive Supports up to 50 hot-swappable HDDs ( SCSI, SATA ll 3Gb/s or SAS interface ) Power Support Up to 3000W redundant power suppply (2 X 1500W) Ventilation 8 hot-swappable fans (80mm x 80mm x 25mm ) Environment Ambient Temperature: Operating: +5°C to +35°C Non-operating: -40°C to +70°C Relative Humidity: Non-operating: 95% at +30°C Non-condensing
