AIC RMC3K2-PI-XPSS, 3U RM, 12x HS SATA/Int Bays, 1x Slim CD & FDD, 650W P.S
Starting atContact Sales
Material: Heavy-duty cold-rolled steel Dimension: 19"(W) x 27"(D) x 5.25"(H) Cooling: 2 x 40mm + 3 x 80mm + 2 x 60mm hot-swap fans Power Supply: 460W Single, 650W HRP Power Supply PCI Extension: 7 full-height and full-length slots Controls: Power on/off and system reset, and dual USB Indicators: Power and HDD LED's System Boards: 12"(D) x 13"(D) E-ATX/SSI EEB 3.5 compliant M/B Drive Bay: 12 x SCSI or SATA hot-swap bays + 1 x slim CD + 1 x FDD + 1 x 5.25" exposed bays + 2 x 2.5" internal HDD bay Temperature: 0°C (32°F) ~ 50°F (122°F) Humidity: 5%~95% non-condensing
AIC RMC3N2-0-XP, 3U RM/Short, 6x 2.5"/2x 3.5" Exposed+1x Int Bays, w/o P.S
Starting atContact Sales
Material: Heavy-duty cold-rolled steel with bright chromate finishing Dimension: 19" (W) x21" (D) x 5.25" (H) Cooling: 2x60 ball-bearing fans PCI Extension: 7 Full length slots with maximum 3.9" in height Air Filter: Removable and washable Controls: Power on/off and system reset Indicators: Power & HDD LEDs System Boards: 12" (W) x 13" (D) ATX M/B Speaker: 0.4W built-in Drive Bay: 6x5.25" + 2x3.5" exposed bays + 1x3.5" internal HDD Temperature: 0 °C(32 F) - 50 °C(122 F) Power Supply: 300W
AIC RMC3N2-4-XP, 3U RM/Short, 6x 2.5"/2x 3.5" Exposed+1x Int Bays, 300W P.S
Starting atContact Sales
Material: Heavy-duty cold-rolled steel with bright chromate finishing Dimension: 19" (W) x21" (D) x 5.25" (H) Cooling: 2x60 ball-bearing fans PCI Extension: 7 Full length slots with maximum 3.9" in height Air Filter: Removable and washable Controls: Power on/off and system reset Indicators: Power & HDD LEDs System Boards: 12" (W) x 13" (D) ATX M/B Speaker: 0.4W built-in Drive Bay: 6x5.25" + 2x3.5" exposed bays + 1x3.5" internal HDD Temperature: 0 °C(32 F) - 50 °C(122 F) Power Supply: 300W

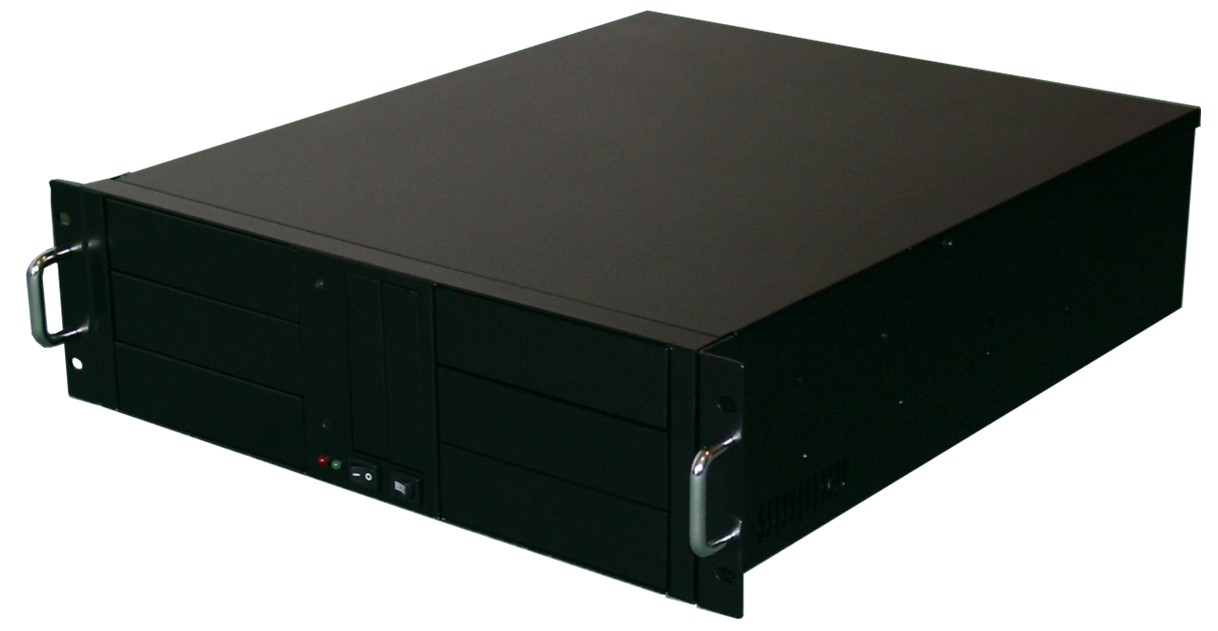

AIC RMC3N2-7-XP, 3U RM/Short, 6x 2.5"/2x 3.5" Exposed+1x Int Bays, 400W P.S
Starting atContact Sales
Material: Heavy-duty cold-rolled steel with bright chromate finishing Dimension: 19" (W) x21" (D) x 5.25" (H) Cooling: 2x60 ball-bearing fans PCI Extension: 7 Full length slots with maximum 3.9" in height Air Filter: Removable and washable Controls: Power on/off and system reset Indicators: Power & HDD LEDs System Boards: 12" (W) x 13" (D) ATX M/B Speaker: 0.4W built-in Drive Bay: 6x5.25" + 2x3.5" exposed bays + 1x3.5" internal HDD Temperature: 0 °C(32 F) - 50 °C(122 F) Power Supply: 400W
AIC RMC3N2-8-XP, 3U RM/Short, 6x 2.5"/2x 3.5" Exposed+1x Int Bays, 2x 300W P.S
Starting atContact Sales
Material: Heavy-duty cold-rolled steel with bright chromate finishing Dimension: 19" (W) x21" (D) x 5.25" (H) Cooling: 2x60 ball-bearing fans PCI Extension: 7 Full length slots with maximum 3.9" in height Air Filter: Removable and washable Controls: Power on/off and system reset Indicators: Power & HDD LEDs System Boards: 12" (W) x 13" (D) ATX M/B Speaker: 0.4W built-in Drive Bay: 6x5.25" + 2x3.5" exposed bays + 1x3.5" internal HDD Temperature: 0 °C(32 F) - 50 °C(122 F) Power Supply: 2x350W
AIC RMC3N2-9i-XP, 3U RM/Short, 6x 2.5"/2x 3.5" Exposed+1x Int Bays, 460W P.S
Starting atContact Sales
Material: Heavy-duty cold-rolled steel with bright chromate finishing Dimension: 19" (W) x21" (D) x 5.25" (H) Cooling: 2x60 ball-bearing fans PCI Extension: 7 Full length slots with maximum 3.9" in height Air Filter: Removable and washable Controls: Power on/off and system reset Indicators: Power & HDD LEDs System Boards: 12" (W) x 13" (D) ATX M/B Speaker: 0.4W built-in Drive Bay: 6x5.25" + 2x3.5" exposed bays + 1x3.5" internal HDD Temperature: 0 °C(32 F) - 50 °C(122 F) Power Supply: 460W
AIC RMC3N2-G-XP, 3U RM/Short, 6x 2.5"/2x 3.5" Exposed+1x Int Bays, 2x 350W P.S
Starting atContact Sales
Material: Heavy-duty cold-rolled steel with bright chromate finishing Dimension: 19" (W) x21" (D) x 5.25" (H) Cooling: 2x60 ball-bearing fans PCI Extension: 7 Full length slots with maximum 3.9" in height Air Filter: Removable and washable Controls: Power on/off and system reset Indicators: Power & HDD LEDs System Boards: 12" (W) x 10.5" (D) ATX M/B Speaker: 0.4W built-in Drive Bay: 6x5.25" + 2x3.5" exposed bays + 1x3.5" internal HDD Temperature: 0 °C(32 F) - 50 °C(122 F) Humidity: 5% - 95% non-condensing Technical Drawing and Photos
AIC RMC3Q2--Ki-XPE, 3U RM, 9x HS IDE/2x 2.25" Int Bays, 1x Slim CD & FDD, 2x 460W P.S
Starting atContact Sales
AIC RMC3Q2-0-XPE, 3U RM, 9x HS IDE/2x 2.25" Int Bays, 1x Slim CD & FDD, w/o P.S
Starting atContact Sales
Support 12"(W) x 13" (D) ATX motherboards 400W Power Supply, 9x 3.5" Hot Swappable bays for IDE HDD's (SCA backplanes and hot-swap trays included), Dimensions: 19"W x 25.6"D x 5.25"H
AIC RMC3Q2-0-XPS 3U RM, 9x HS SCSI/2x 2.25" Int Bays, 1x Slim CD & FDD, w/o P.S
Starting atContact Sales
Support 12"(W) x 13" (D) ATX motherboards 400W Power Supply, 9x 3.5" Hot Swappable bays for IDE HDD's (SCA backplanes and hot-swap trays included), Dimensions: 19"W x 25.6"D x 5.25"H
AIC RMC3Q2-7-XPE, 3U RM, 9x HS IDE/2x 2.25" Int Bays, 1x Slim CD & FDD, 400W P.S
Starting atContact Sales
Support 12"(W) x 13" (D) ATX motherboards 400W Power Supply, 9x 3.5" Hot Swappable bays for IDE HDD's (SCA backplanes and hot-swap trays included), Dimensions: 19"W x 25.6"D x 5.25"H
AIC RMC3Q2-7-XPS, 3U RM, 9x HS SCSI/2x 2.25" Int Bays, 1x Slim CD & FDD, 400W P.S
Starting atContact Sales
Support 12"(W) x 13" (D) ATX motherboards 400W Power Supply w/PFC 15 x 3.5" Hot Swappable bays for 1.0" SCA LVD HDD's (SCA backplanes and hot-swap trays included) Front panel power and reset switch, keyboard connnector Internal: 4 x 80mm (middle) + 2 x 60mm (rear) air-bearing fans External: 4 x 60mm air-bearing fans Lockable front door for anti-dust and running security Dimensions: 19"W x 25.6"D x 5.25"H 7-slot full height and length
AIC RMC3Q2-7-XPSS, 3U RM, 9x HS SATA/2x 2.25" Int Bays, 1x Slim CD & FDD, 400W P.S
Starting atContact Sales
Material: Heavy-duty cold-rolled steel. Inside: zinc-plated, Outside: texture-coated Dimension: 19"(W) x 25.6"(D) x 5.25"(H) Cooling: 4x 80mm air-bearing fans (middle) + 2x 60mm air-bearing fans (rear) + 3x 60mm air-bearing fans on the front panel Power Supply: 400W, 460W, 350W HRP, 460W HRP Power Supply PCI Extension: 7 full-height and full-length slots Air Filter: Removable and washable Controls: Power on/off and system reset. keyboard connector. Lockable front door for anti-dust and running security Indicators: Power and HDD LED's System Boards: 12"(D) x 13"(D) ATX M/B Speaker: 0.4W built-in Drive Bay: 9 x 3.5" hot-swap drive bays for 1" SCA, IDE or SATA (SCA, IDE or SATA backplanes and hot-swap trays included) + 1 x 5.25" slim CD-ROM and 1 x 3.5" FDD bays + 2 x 2.5" notebook size HDDs Temperature: 0°C (32°F) ~ 50°F (122°F) Humidity: 5%~95% non-condensing
AIC RMC3Q2-9i-XPE, 3U RM, 9x HS IDE/2x 2.25" Int Bays, 1x Slim CD & FDD, 460W P.S
Starting atContact Sales
Support 12"(W) x 13" (D) ATX motherboards 435W Power Supply, 9x 3.5" Hot Swappable bays for IDE HDD's (SCA backplanes and hot-swap trays included), Dimensions: 19"W x 25.6"D x 5.25"H
AIC RMC3Q2-9i-XPS, 3U RM, 9x HS SCSI/2x 2.25" Int Bays, 1x Slim CD & FDD, 460W P.S
Starting atContact Sales
Support 12"(W) x 13" (D) ATX motherboards 435W Power Supply w/PFC 15 x 3.5" Hot Swappable bays for 1.0" SCA LVD HDD's (SCA backplanes and hot-swap trays included) Front panel power and reset switch, keyboard connnector Internal: 4 x 80mm (middle) + 2 x 60mm (rear) air-bearing fans External: 4 x 60mm air-bearing fans Lockable front door for anti-dust and running security Dimensions: 19"W x 25.6"D x 5.25"H 7-slot full height and length
AIC RMC3Q2-9i-XPSS, 3U RM, 9x HS SATA/2x 2.25" Int Bays, 1x Slim CD & FDD, 460W P.S
Starting atContact Sales
Material: Heavy-duty cold-rolled steel. Inside: zinc-plated, Outside: texture-coated Dimension: 19"(W) x 25.6"(D) x 5.25"(H) Cooling: 4x 80mm air-bearing fans (middle) + 2x 60mm air-bearing fans (rear) + 3x 60mm air-bearing fans on the front panel Power Supply: 400W, 460W, 350W HRP, 460W HRP Power Supply PCI Extension: 7 full-height and full-length slots Air Filter: Removable and washable Controls: Power on/off and system reset. keyboard connector. Lockable front door for anti-dust and running security Indicators: Power and HDD LED's System Boards: 12"(D) x 13"(D) ATX M/B Speaker: 0.4W built-in Drive Bay: 9 x 3.5" hot-swap drive bays for 1" SCA, IDE or SATA (SCA, IDE or SATA backplanes and hot-swap trays included) + 1 x 5.25" slim CD-ROM and 1 x 3.5" FDD bays + 2 x 2.5" notebook size HDDs Temperature: 0°C (32°F) ~ 50°F (122°F) Humidity: 5%~95% non-condensing
AIC RMC3Q2-G-XPE, 3U RM, 9x HS IDE/2x 2.25" Int Bays, 1x Slim CD & FDD, 2x 350W P.S
Starting atContact Sales
Material: Heavy-duty cold-rolled steel. Inside: zinc-plated, Outside: texture-coated Dimension: 19"(W) x 25.6"(D) x 5.25"(H) Cooling: 4x 80mm air-bearing fans (middle) + 2x 60mm air-bearing fans (rear) + 3x 60mm air-bearing fans on the front panel Power Supply: 400W, 460W, 350W HRP, 460W HRP Power Supply PCI Extension: 7 full-height and full-length slots Air Filter: Removable and washable Controls: Power on/off and system reset. keyboard connector. Lockable front door for anti-dust and running security Indicators: Power and HDD LED's System Boards: 12"(D) x 13"(D) ATX M/B Speaker: 0.4W built-in Drive Bay: 9 x 3.5" hot-swap drive bays for 1" SCA, IDE or SATA (SCA, IDE or SATA backplanes and hot-swap trays included) + 1 x 5.25" slim CD-ROM and 1 x 3.5" FDD bays + 2 x 2.5" notebook size HDDs Temperature: 0°C (32°F) ~ 50°F (122°F) Humidity: 5%~95% non-condensing
AIC RMC3Q2-G-XPS, 3U RM, 9x HS SCSI/2x 2.25" Int Bays, 1x Slim CD & FDD, 2x 350W P.S
Starting atContact Sales
Material: Heavy-duty cold-rolled steel. Inside: zinc-plated, Outside: texture-coated Dimension: 19"(W) x 25.6"(D) x 5.25"(H) Cooling: 4x 80mm air-bearing fans (middle) + 2x 60mm air-bearing fans (rear) + 3x 60mm air-bearing fans on the front panel Power Supply: 400W, 460W, 350W HRP, 460W HRP Power Supply PCI Extension: 7 full-height and full-length slots Air Filter: Removable and washable Controls: Power on/off and system reset. keyboard connector. Lockable front door for anti-dust and running security Indicators: Power and HDD LED's System Boards: 12"(D) x 13"(D) ATX M/B Speaker: 0.4W built-in Drive Bay: 9 x 3.5" hot-swap drive bays for 1" SCA, IDE or SATA (SCA, IDE or SATA backplanes and hot-swap trays included) + 1 x 5.25" slim CD-ROM and 1 x 3.5" FDD bays + 2 x 2.5" notebook size HDDs Temperature: 0°C (32°F) ~ 50°F (122°F) Humidity: 5%~95% non-condensing
AIC RMC3Q2-G-XPSS, 3U RM, 9x HS SATA/2x 2.25" Int Bays, 1x Slim CD & FDD, 2x 350W P.S
Starting atContact Sales
Material: Heavy-duty cold-rolled steel. Inside: zinc-plated, Outside: texture-coated Dimension: 19"(W) x 25.6"(D) x 5.25"(H) Cooling: 4x 80mm air-bearing fans (middle) + 2x 60mm air-bearing fans (rear) + 3x 60mm air-bearing fans on the front panel Power Supply: 400W, 460W, 350W HRP, 460W HRP Power Supply PCI Extension: 7 full-height and full-length slots Air Filter: Removable and washable Controls: Power on/off and system reset. keyboard connector. Lockable front door for anti-dust and running security Indicators: Power and HDD LED's System Boards: 12"(D) x 13"(D) ATX M/B Speaker: 0.4W built-in Drive Bay: 9 x 3.5" hot-swap drive bays for 1" SCA, IDE or SATA (SCA, IDE or SATA backplanes and hot-swap trays included) + 1 x 5.25" slim CD-ROM and 1 x 3.5" FDD bays + 2 x 2.5" notebook size HDDs Temperature: 0°C (32°F) ~ 50°F (122°F) Humidity: 5%~95% non-condensing
AIC RMC3Q2-Ki-XPS, 3U RM, 9x HS SCSI/2x 2.25" Int Bays, 1x Slim CD & FDD, 2x 460W P.S
Starting atContact Sales
Support 12"(W) x 13" (D) ATX motherboards 435W Power Supply w/PFC 15 x 3.5" Hot Swappable bays for 1.0" SCA LVD HDD's (SCA backplanes and hot-swap trays included) Front panel power and reset switch, keyboard connnector Internal: 4 x 80mm (middle) + 2 x 60mm (rear) air-bearing fans External: 4 x 60mm air-bearing fans Lockable front door for anti-dust and running security Dimensions: 19"W x 25.6"D x 5.25"H 7-slot full height and length
