SuperBlade MBE-628E-816, 28x HS DP X10 Blades, Up to 2x GEM Switches,2x CMM/KVM,6U RM,1600W(8x PWS )
Starting atContact Sales
Space Optimization Housed within a 19" industry-standard rack, MicroBlade servers reduce server footprint in the data center. Power, cooling and networking devices are aggregated in the rear of the chassis which optimizes the required amount of space. Up to 28 Blade (112 nodes) can be installed in a 6U chassis. Compared to the 20U of rack space that twenty 1U servers would normally require as individual servers, the MicroBlade provides more than 50% density savings with 6272 Avoton cores per 42U rack. Cable Reduction The MicroBlade server chassis enclosure greatly simplifies the cabling by aggregating cabling of servers together. Up to 99% of network, power, and KVM cabling required for ten 1U servers are reduced by moving to blade servers in a single chassis. These cabling reductions continue across networking, SAN connectivity, and management controllers. Reducing the number of cables speeds up the deployment of servers and helps reduce troubleshooting issues by presenting fewer physical connections to the servers.
SuperBlade MBE-628E-820, 28x HS DP X10 Blades, Up to 2x GEM Switches,2x CMM/KVM,6U RM,2000W(8x PWS)
Starting atContact Sales
Space Optimization Housed within a 19" industry-standard rack, MicroBlade servers reduce server footprint in the data center. Power, cooling and networking devices are aggregated in the rear of the chassis which optimizes the required amount of space. Up to 28 Blade (112 nodes) can be installed in a 6U chassis. Compared to the 20U of rack space that twenty 1U servers would normally require as individual servers, the MicroBlade provides more than 50% density savings with 6272 Avoton cores per 42U rack. Cable Reduction The MicroBlade server chassis enclosure greatly simplifies the cabling by aggregating cabling of servers together. Up to 99% of network, power, and KVM cabling required for ten 1U servers are reduced by moving to blade servers in a single chassis. These cabling reductions continue across networking, SAN connectivity, and management controllers. Reducing the number of cables speeds up the deployment of servers and helps reduce troubleshooting issues by presenting fewer physical connections to the servers.
SuperBlade MBE-628E-820D,28x HS DP X10 Blades, Up to 2x GEM Switches,2x CMM/KVM,6U RM,2000W(8x PWS)
Starting atContact Sales
Space Optimization Housed within a 19" industry-standard rack, MicroBlade servers reduce server footprint in the data center. Power, cooling and networking devices are aggregated in the rear of the chassis which optimizes the required amount of space. Up to 28 Blade (112 nodes) can be installed in a 6U chassis. Compared to the 20U of rack space that twenty 1U servers would normally require as individual servers, the MicroBlade provides more than 50% density savings with 6272 Avoton cores per 42U rack. Cable Reduction The MicroBlade server chassis enclosure greatly simplifies the cabling by aggregating cabling of servers together. Up to 99% of network, power, and KVM cabling required for ten 1U servers are reduced by moving to blade servers in a single chassis. These cabling reductions continue across networking, SAN connectivity, and management controllers. Reducing the number of cables speeds up the deployment of servers and helps reduce troubleshooting issues by presenting fewer physical connections to the servers.

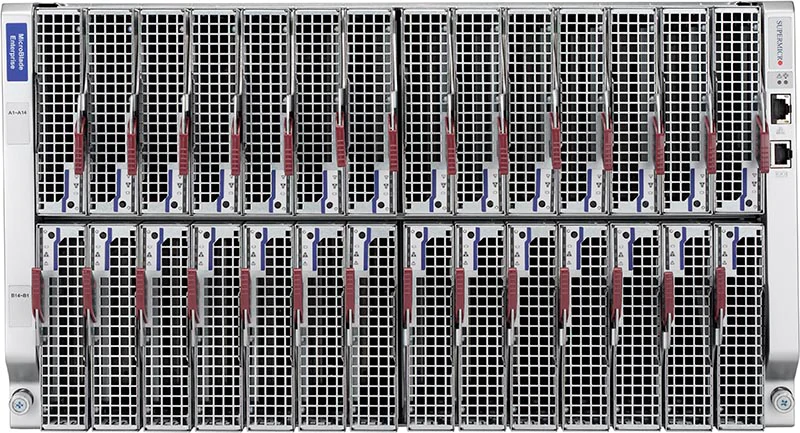

SuperBlade MBE-628E-822, 28x HS DP X10 Blades, Up to 2x GEM Switches,2x CMM/KVM,6U RM,2200W(8x PWS)
Starting atContact Sales
Server Blade Up to 28 hot-swap server blades Node Support Intel® E3 and E5 based server blades LED Power LED, Fault LED GbE Switch / Pass-Through Module Up to 2 hot-swap MBM-GEM-004, MBM-GEM-001, MBM-XEM-001, or MBM-XEM-002 switches Switch modules are not included in the enclosure Management Module Up to 2 hot-swap Chassis Management Modules (CMM) providing remote KVM and IPMI 2.0 functionalities Management module not included in the enclosure Power Supplies 8 PWS-2K21A-BR hot-swap high-efficiency 2200W, N+1 or N+N redundant power supplies Cooling Design 8 cooling fans Dimensions (HxWxD) 10.43" x 17.67" x 34.45" (265mm x 449mm x 875mm)
SuperBlade MBE-628EB-422,28xHS DP X10 Blade,Up to 2xGEM Switches,2xCMM/KVM,6U RM,4x2200W+4x1200W BBP
Starting atContact Sales
Server Blade Up to 28 hot-swap server blades Node Support Intel® E3 and E5 based server blades LED Power LED, Fault LED GbE Switch / Pass-Through Module Up to 2 hot-swap MBM-GEM-004, MBM-GEM-001, MBM-XEM-001, or MBM-XEM-002 switches Switch modules are not included in the enclosure Management Module Up to 2 hot-swap Chassis Management Modules (CMM) providing remote KVM and IPMI 2.0 functionalities Management module not included in the enclosure Power Supplies 4 PWS-2K21A-BR hot-swap high-efficiency 2200W, N+1 or N+N redundant power supplies 4 1200W BBP Support Cooling Design 8 cooling fans

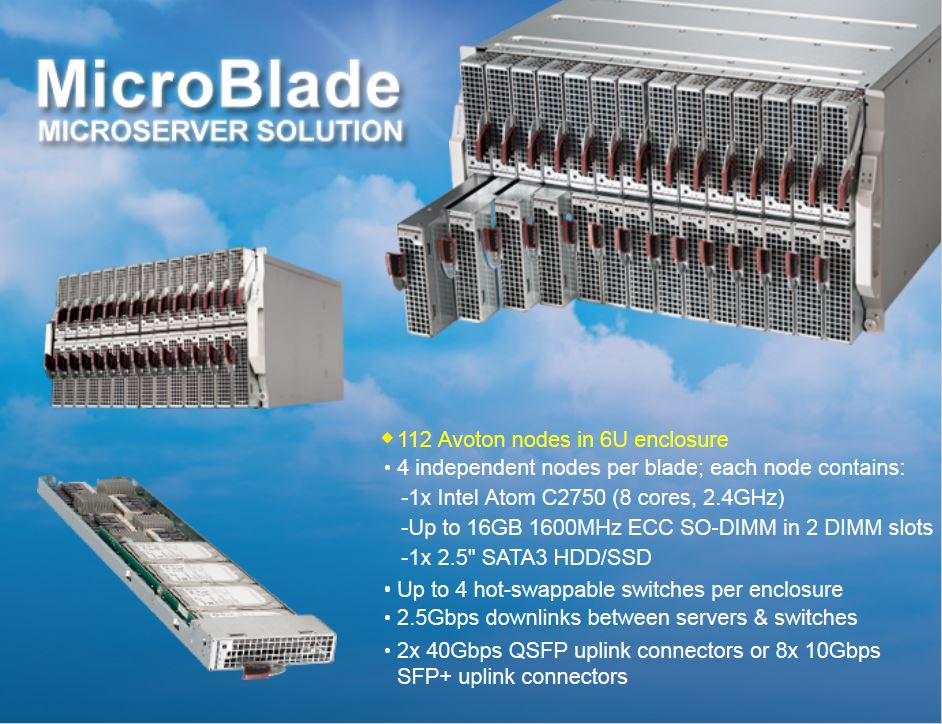

SuperBlade MBE-628L-416, 28x HS UP X10 Blades, Up to 4x GbE Switches,1x CMM/KVM,6U RM,1600W(4x PWS )
Starting atContact Sales
MicroBlade - Enclosure Space Optimization Housed within a 19" industry-standard rack, MicroBlade servers reduce server footprint in the data center. Power, cooling and networking devices are aggregated in the rear of the chassis which optimizes the required amount of space. Up to 28 Blade (112 nodes) can be installed in a 6U chassis. Compared to the 20U of rack space that twenty 1U servers would normally require as individual servers, the MicroBlade provides more than 50% density savings with 6272 Avoton cores per 42U rack. Cable Reduction The MicroBlade server chassis enclosure greatly simplifies the cabling by aggregating cabling of servers together. Up to 99% of network, power, and KVM cabling required for ten 1U servers are reduced by moving to blade servers in a single chassis. These cabling reductions continue across networking, SAN connectivity, and management controllers. Reducing the number of cables speeds up the deployment of servers and helps reduce troubleshooting issues by presenting fewer physical connections to the servers.
SuperBlade MBE-628L-816, 28x HS UP X10 Blades, Up to 4x GEM Switches,2x CMM/KVM,6U RM,1600W(8x PWS )
Starting atContact Sales
Space Optimization Housed within a 19" industry-standard rack, MicroBlade servers reduce server footprint in the data center. Power, cooling and networking devices are aggregated in the rear of the chassis which optimizes the required amount of space. Up to 28 Blade (112 nodes) can be installed in a 6U chassis. Compared to the 20U of rack space that twenty 1U servers would normally require as individual servers, the MicroBlade provides more than 50% density savings with 6272 Avoton cores per 42U rack. Cable Reduction The MicroBlade server chassis enclosure greatly simplifies the cabling by aggregating cabling of servers together. Up to 99% of network, power, and KVM cabling required for ten 1U servers are reduced by moving to blade servers in a single chassis. These cabling reductions continue across networking, SAN connectivity, and management controllers. Reducing the number of cables speeds up the deployment of servers and helps reduce troubleshooting issues by presenting fewer physical connections to the servers.
SuperBlade SBE-414E-222, 14x HS Server Blades, 1x CMM, 2x 10G/1G Switch, 4U RM,2x 2200W Titanium P.S
Starting atContact Sales
Enclosure SBE-414E: *Processor Blade: Up to 14 2-socket blade servers, *LED: Power LED, Fault LED, *Ethernet Switch: 2x 10G/1G Ethernet switches, *Management Module: One CMM for remote system management with software, Management module not included in the enclosure, *Power Supplies: Up to four hot-swap 2200W Titanium power supplies, Battery Backup Enabled (SBE-414EB-222 SKU only), *Cooling Design: Up to 2 cooling fans and PWS modules, *Dimensions (HxWxD): 7" x 17.6" x 32".
SuperBlade SBE-414E-420D, 14x HS Server Blades, 1x CMM, 2x 10G/1G Switch, 4U RM,4x 2200W DC P.S
Starting atContact Sales
Enclosure SBE-414E: *Processor Blade: Up to 14 2-socket blade servers, *LED: Power LED, Fault LED, *Ethernet Switch: 2x 10G/1G Ethernet switches, *Management Module: One CMM for remote system management with software, Management module not included in the enclosure, *Power Supplies: Up to four hot-swap 2200W Titanium power supplies, Battery Backup Enabled (SBE-414EB-222 SKU only), *Cooling Design: Up to 2 cooling fans and PWS modules, *Dimensions (HxWxD): 7" x 17.6" x 32".
SuperBlade SBE-414E-422, 14x HS Server Blades, 1x CMM, 2x 10G/1G Switch, 4U RM,4x 2200W Titanium P.S
Starting atContact Sales
Enclosure SBE-414E: *Processor Blade: Up to 14 2-socket blade servers, *LED: Power LED, Fault LED, *Ethernet Switch: 2x 10G/1G Ethernet switches, *Management Module: One CMM for remote system management with software, Management module not included in the enclosure, *Power Supplies: Up to four hot-swap 2200W Titanium power supplies, Battery Backup Enabled (SBE-414EB-222 SKU only), *Cooling Design: Up to 2 cooling fans and PWS modules, *Dimensions (HxWxD): 7" x 17.6" x 32".
SuperBlade SBE-610J-422, 10x HS 1 or 2-Socket Blades, 2x CMMs, 4x 25G/10G/1G Switch, 6U RM, 4x2200W
Starting atContact Sales
Enclosure SBE-610J Processor Blade Up to 10 1-socket blade servers Up to 10 2-socket blade servers LED Power LED, Fault LED 25G Switch 2x 25G Ethernet switches Ethernet Switch 2x 10G/1G Ethernet switches Management Module One CMM for remote system management with software Management module not included in the enclosure Power Supplies Up to eight hot-swap 2200W Titanium power supplies Cooling Design Up to 8 cooling fans and PWS modules Dimensions (HxWxD) 10.5" x 17.6" x 32" Available Models SBE-610J-822 - Enclosure with eight 2200W Titanium (96% efficiency) power supplies SBE-610J-622 - Enclosure with six 2200W Titanium (96% efficiency) power supplies + 2 cooling fans SBE-610J-422 - Enclosure with four 2200W Titanium (96% efficiency) power supplies + 4 cooling fans SBE-610JB-422 - Enclosure with four 2200W Titanium (96% efficiency) power supplies + four 1200W BBP
SuperBlade SBE-610J-622, 10x HS 1 or 2-Socket Blades, 2x CMMs, 4x 25G/10G/1G Switch, 6U RM, 6x2200W
Starting atContact Sales
Enclosure SBE-610J Processor Blade Up to 10 1-socket blade servers Up to 10 2-socket blade servers LED Power LED, Fault LED 25G Switch 2x 25G Ethernet switches Ethernet Switch 2x 10G/1G Ethernet switches Management Module One CMM for remote system management with software Management module not included in the enclosure Power Supplies Up to eight hot-swap 2200W Titanium power supplies Cooling Design Up to 8 cooling fans and PWS modules Dimensions (HxWxD) 10.5" x 17.6" x 32" Available Models SBE-610J-822 - Enclosure with eight 2200W Titanium (96% efficiency) power supplies SBE-610J-622 - Enclosure with six 2200W Titanium (96% efficiency) power supplies + 2 cooling fans SBE-610J-422 - Enclosure with four 2200W Titanium (96% efficiency) power supplies + 4 cooling fans SBE-610JB-422 - Enclosure with four 2200W Titanium (96% efficiency) power supplies + four 1200W BBP

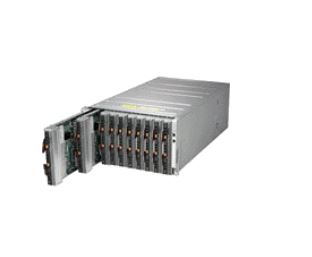

SuperBlade SBE-610J-822, 10x HS 1 or 2-Socket Blades, 2x CMMs, 4x 25G/10G/1G Switch, 6U RM, 8x2200W
Starting atContact Sales
Enclosure SBE-610J Processor Blade Up to 10 1-socket blade servers Up to 10 2-socket blade servers LED Power LED, Fault LED 25G Switch 2x 25G Ethernet switches Ethernet Switch 2x 10G/1G Ethernet switches Management Module One CMM for remote system management with software Management module not included in the enclosure Power Supplies Up to eight hot-swap 2200W Titanium power supplies Cooling Design Up to 8 cooling fans and PWS modules Dimensions (HxWxD) 10.5" x 17.6" x 32" Available Models SBE-610J-822 - Enclosure with eight 2200W Titanium (96% efficiency) power supplies SBE-610J-622 - Enclosure with six 2200W Titanium (96% efficiency) power supplies + 2 cooling fans SBE-610J-422 - Enclosure with four 2200W Titanium (96% efficiency) power supplies + 4 cooling fans SBE-610JB-422 - Enclosure with four 2200W Titanium (96% efficiency) power supplies + four 1200W BBP
SuperBlade SBE-610J2-422,5 or 10xHS FH 1 or 2-Socket Blades,2xCMMs,4x25G/10G/1G Switch,6U RM,4x2200W
Starting atContact Sales
Processor Blade Up to 10 hot-swappable full-height single-width 1-socket or 2-socket blade servers Up to 5 hot-swappable full-height double-width 1-socket or 2-socket blade servers LED Power LED, Fault LED Networking Ethernet Switch ¿ Up to 4x modules For compatibility, see the Blade Matrix or contact your Supermicro representative Switch Modules must be purchased separately Management Module 2 CMMs for remote system management with software Management Module(s) must be purchased separately Power Supplies Up to 8 hot-plug 2200/3000W Titanium power supplies Cooling Design Up to 8 cooling fans in PWS modules Dimensions (HxWxD) 10.5" x 17.6" x 32" Available Models SBE-610J2-830 - Up to 8 hot-swappable 3000W Titanium (96% efficiency) power supplies
SuperBlade SBE-610J2-430,5 or 10xHS FH 1 or 2-Socket Blades,2xCMMs,4x25G/10G/1G Switch,6U RM,4x3000W
Starting atContact Sales
Processor Blade Up to 10 hot-swappable full-height single-width 1-socket or 2-socket blade servers Up to 5 hot-swappable full-height double-width 1-socket or 2-socket blade servers LED Power LED, Fault LED Networking Ethernet Switch ¿ Up to 4x modules For compatibility, see the Blade Matrix or contact your Supermicro representative Switch Modules must be purchased separately Management Module 2 CMMs for remote system management with software Management Module(s) must be purchased separately Power Supplies Up to 8 hot-plug 2200/3000W Titanium power supplies Cooling Design Up to 8 cooling fans in PWS modules Dimensions (HxWxD) 10.5" x 17.6" x 32" Available Models SBE-610J2-830 - Up to 8 hot-swappable 3000W Titanium (96% efficiency) power supplies
SuperBlade SBE-610J2-622,5 or 10xHS FH 1 or 2-Socket Blades,2xCMMs,4x25G/10G/1G Switch,6U RM,6x2200W
Starting atContact Sales
Processor Blade Up to 10 hot-swappable full-height single-width 1-socket or 2-socket blade servers Up to 5 hot-swappable full-height double-width 1-socket or 2-socket blade servers LED Power LED, Fault LED Networking Ethernet Switch ¿ Up to 4x modules For compatibility, see the Blade Matrix or contact your Supermicro representative Switch Modules must be purchased separately Management Module 2 CMMs for remote system management with software Management Module(s) must be purchased separately Power Supplies Up to 8 hot-plug 2200/3000W Titanium power supplies Cooling Design Up to 8 cooling fans in PWS modules Dimensions (HxWxD) 10.5" x 17.6" x 32" Available Models SBE-610J2-830 - Up to 8 hot-swappable 3000W Titanium (96% efficiency) power supplies

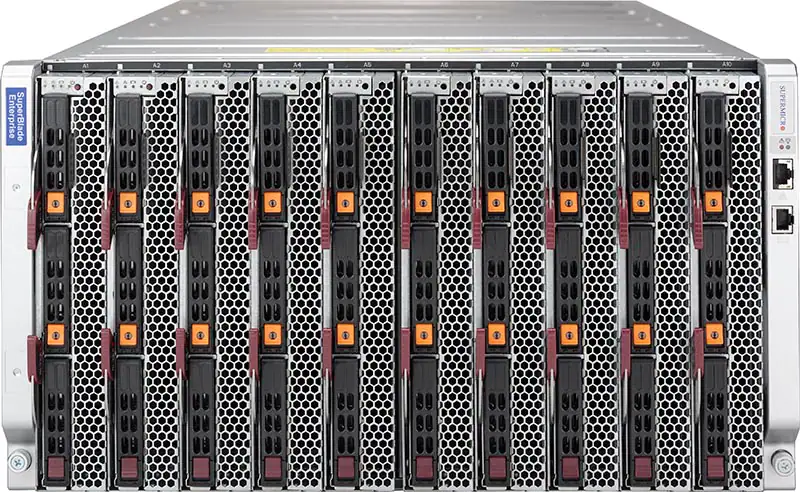

SuperBlade SBE-610J2-630,5 or 10xHS FH 1 or 2-Socket Blades,2xCMMs,4x25G/10G/1G Switch,6U RM,6x3000W
Starting atContact Sales
Processor Blade Up to 10 hot-swappable full-height single-width 1-socket or 2-socket blade servers Up to 5 hot-swappable full-height double-width 1-socket or 2-socket blade servers LED Power LED, Fault LED Networking Ethernet Switch ¿ Up to 4x modules For compatibility, see the Blade Matrix or contact your Supermicro representative Switch Modules must be purchased separately Management Module 2 CMMs for remote system management with software Management Module(s) must be purchased separately Power Supplies Up to 8 hot-plug 2200/3000W Titanium power supplies Cooling Design Up to 8 cooling fans in PWS modules Dimensions (HxWxD) 10.5" x 17.6" x 32" Available Models SBE-610J2-830 - Up to 8 hot-swappable 3000W Titanium (96% efficiency) power supplies
SuperBlade SBE-610J2-822,5 or 10xHS FH 1 or 2-Socket Blades,2xCMMs,4x25G/10G/1G Switch,6U RM,8x2200W
Starting atContact Sales
Processor Blade Up to 10 hot-swappable full-height single-width 1-socket or 2-socket blade servers Up to 5 hot-swappable full-height double-width 1-socket or 2-socket blade servers LED Power LED, Fault LED Networking Ethernet Switch ¿ Up to 4x modules For compatibility, see the Blade Matrix or contact your Supermicro representative Switch Modules must be purchased separately Management Module 2 CMMs for remote system management with software Management Module(s) must be purchased separately Power Supplies Up to 8 hot-plug 2200/3000W Titanium power supplies Cooling Design Up to 8 cooling fans in PWS modules Dimensions (HxWxD) 10.5" x 17.6" x 32" Available Models SBE-610J2-830 - Up to 8 hot-swappable 3000W Titanium (96% efficiency) power supplies
SuperBlade SBE-610J2-830,5 or 10xHS FH 1 or 2-Socket Blades,2xCMMs,4x25G/10G/1G Switch,6U RM,8x3000W
Starting atContact Sales
Processor Blade Up to 10 hot-swappable full-height single-width 1-socket or 2-socket blade servers Up to 5 hot-swappable full-height double-width 1-socket or 2-socket blade servers LED Power LED, Fault LED Networking Ethernet Switch ¿ Up to 4x modules For compatibility, see the Blade Matrix or contact your Supermicro representative Switch Modules must be purchased separately Management Module 2 CMMs for remote system management with software Management Module(s) must be purchased separately Power Supplies Up to 8 hot-plug 2200/3000W Titanium power supplies Cooling Design Up to 8 cooling fans in PWS modules Dimensions (HxWxD) 10.5" x 17.6" x 32" Available Models SBE-610J2-830 - Up to 8 hot-swappable 3000W Titanium (96% efficiency) power supplies
SuperBlade SBE-614E-422, 14x HS Server Blades, 1x CMM, 2x 10G/1G Switch, 6U RM,4x 2200W Titanium P.S
Starting atContact Sales
Enclosure SBE-614E: *Processor Blade: Up to 14 1-socket blade servers, Up to 14 2-socket blade servers, *LED: Power LED, Fault LED, *Ethernet Switch: 2x 10G/1G Ethernet switches, *Management Module: One CMM for remote system management with software, Management module not included in the enclosure, *Power Supplies: Up to eight hot-swap 2200W Titanium power supplies, Battery Backup Enabled (SBE-614EB-422 SKU only), *Cooling Design: Up to 8 cooling fans and PWS modules, *Dimensions (HxWxD): 10.5" x 17.6" x 32".
