SuperBlade SBA-4114S-C2N,Front I/O,1xEPYC7003,Video,2x25G LAN,2xHS 2.5" NVMe/SAS3(3108),IPMI,D4(2TB)
Starting atContact Sales
Key Features 1. 100 CPUs per 42U Rack 2. Single AMD EPYC¿ 7003/7002 Series Processor (7003 Series Processor drop-in support requires BIOS version 2.0 or newer) 3. TDP up to 280W 4. 8 DIMMs; up to 2TB 3DS ECC DDR4-3200MHz LRDIMM 5. 2 Hot-plug 2.5" NVMe/SAS3/SATA3 drive bays; 2 PCI-E x4 M.2 6. Dual 25G onboard 7. IPMI 2.0, KVM over IP, Virtual Media over LAN 8. Graphics: Aspeed AST2500 BMC
SuperBlade SBA-4114S-T2N,Front I/O,1xEPYC7003,Video,2x25G LAN,2xHS 2.5" NVMe/SATA3 Bays,IPMI,D4(2TB)
Starting atContact Sales
Key Features 1. 100 CPUs per 42U Rack 2. Single AMD EPYC¿ 7003/7002 Series Processor (7003 Series Processor drop-in support requires BIOS version 2.0 or newer) 3. TDP up to 280W 4. 8 DIMMs; up to 2TB 3DS ECC DDR4-3200MHz LRDIMM 5. 2 Hot-plug 2.5" NVMe/SATA3 drive bays; 2 PCI-E x4 M.2 6. Dual 25G onboard 7. IPMI 2.0, KVM over IP, Virtual Media over LAN 8. Graphics: Aspeed AST2500 BMC
SuperBlade SBA-4114SG,Front I/O,1xEPYC7003,2xPCIe4(x16),Video,2x25G LAN,1xNVMe/SATA M.2,IPMI,D4(2TB)
Starting atContact Sales
Key Features 1. 100 CPUs per 42U Rack 2. Single AMD EPYC¿ 7002 Series Processor 3. TDP up to 280W 4. 8 DIMMs; up to 2TB 3DS ECC DDR4-3200MHz LRDIMM 5. 1 NVMe/SATA M.2 2 PCI-E 4.0 x16 6. Dual 25G onboard 7. IPMI 2.0, KVM over IP, Virtual Media over LAN 8. Graphics: Aspeed AST2500 BMC
SuperBlade SBA-4119S-C2N,1xAMD EPYC7002,Video,2x25G via CX4, 2x HS 2.5" NVMe/SAS3(3108),IPMI,D4(2TB)
Starting atContact Sales
Key Features 1. 100 CPUs per 42U Rack 2. Single AMD EPYC¿ 7002 Series Processor 3. TDP up to 280W 4. 8 DIMMs; up to 2TB 3DS ECC DDR4-3200MHz LRDIMM 5. 2 Hot-plug 2.5" NVMe/SAS3/SATA3 drive bays; 2 PCI-E x4 M.2 6. Dual 25G onboard 7. IPMI 2.0, KVM over IP, Virtual Media over LAN 8. Graphics: Aspeed AST2500 BMC
SuperBlade SBA-4119S-T2N,1xAMD EPYC7002,2xPCIe,Video,2x25G via CX4,2xHS 2.5" NVMe/SATA3,IPMI,D4(2TB)
Starting atContact Sales
Key Features 1. 100 CPUs per 42U Rack 2. Single AMD EPYC¿ 7002 Series Processor 3. TDP up to 280W 4. 8 DIMMs; up to 2TB 3DS ECC DDR4-3200MHz LRDIMM 5. 2 Hot-plug 2.5" NVMe/SATA3 drive bays; 2 PCI-E x4 M.2 6. Dual 25G onboard 7. IPMI 2.0, KVM over IP, Virtual Media over LAN 8. Graphics: Aspeed AST2500 BMC
SuperBlade SBA-4119SG,1xAMD EPYC7002,2xPCIe4.0(x16),Video,2x25G via CX4,1xNVMe/SATA M.2,IPMI,D4(2TB)
Starting atContact Sales
Key Features 1. 100 CPUs per 42U Rack 2. Single AMD EPYC¿ 7002 Series Processor 3. TDP up to 280W 4. 8 DIMMs; up to 2TB 3DS ECC DDR4-3200MHz LRDIMM 5. 1 NVMe/SATA M.2 2 PCI-E 4.0 x16 6. Dual 25G onboard 7. IPMI 2.0, KVM over IP, Virtual Media over LAN 8. Graphics: Aspeed AST2500 BMC
SuperBlade SBA-7121M-T1, 2x Opt/QC, Video, 2x GB Lan, 2x Int 3.5" SATA, InfiniBand, IPMI, DDR2(64GB)
Starting atContact Sales
Key Features 1. Two Quad-Core / Dual-Core AMD Opteron¿ 2300/2200 Series (Socket F) 2. Up to 64GB DDR2 667/533 SDRAM 3. Intel® 82571EB Dual-port Gigabit Ethernet Controller 4. 2 x 3.5" Hot-swap SATA Drive Trays 5. ATI ES1000 16MB Graphics
SuperBlade SBA-7141M-T, 4x Opt/QC, Video, 2x GB Lan, 1x Int 2.5" SATA, InfiniBand, IPMI, DDR2(128GB)
Starting atContact Sales
SuperBlade¿ Module The innovative SuperBlade¿ touts enhanced system computing density leveraged from years of rackmount server design experience. Applying Supermicro's application-optimized engineering philosophy, each SuperBlade¿ module delivers true server functionality including up to two Quad-Core Intel® Xeon® processors, 1333MHz FSB, up to 32GB FBD memory, optional InfiniBand mezzanine HCA, and support both SATA or SAS hard drives. To protect customer's investment, each blade module is fully upgradeable for future CPUs. The common system architecture ensures each blade is fully inter-changeable as well.
SuperBlade SBM-GEP-T20, Int 20x 1-Gbps to Blades/Ext 20x 1-Gbps Uplink Ports, Pass-Through Module
Starting atContact Sales
SuperBlade SBM-GEP-T20, Int 20x 1-Gbps to Blades/Ext 20x 1-Gbps Uplink Ports, Pass-Through Module
SuperBlade SBi-161-DT2, 2x LGA771/QC, Video, 2x GB Lan, 2x HS 2.5" SAS/SATA, CMM, FBDDR2(32GB)
Starting atContact Sales
SuperBlade SBi-161-DT2 Modules: *Processor Capacity: Dual 771-pin LGA Sockets, Quad-Core Intel® Xeon®Processor 5300, Dual-Core Intel® Xeon®Processor 5100/5000 sequence. *Processors per 42U Rack: 120. *Chipset: Intel® 5000P (Blackford) chipset. *Eight 240-pin DIMM sockets Supports up to 32 GB 667 / 533MHz DDR2 ECC FB-DIMM memory. *Hard Disk Drive: Two hot-plug 2.5" SATA or SAS hard disk drives. *InfiniBand Support: 4x DDR(20Gb/s) InfiniBand mezzanine HCA. *Ethernet Support: Intel 82563EB dual-port gigabit Ethernet controller. *Management: Chassis management module(CMM)provides IPMI2.0 functionalities. *Graphics: ATI ES1000 with 16MB of Sdram. *LED Indicators: Power LED, UID/KVM LED, Networking LED, Fault LED. *10~35 C non-condensing. *Dimensions(HxWxD): 11.32"x1.67"x18.5"
SuperBlade SBi-161-DT3, 2x LGA771/QC, Video, 2x GB Lan, 2x HS 3.5" SAS/SATA, CMM, FBDDR2(32GB)
Starting atContact Sales
SuperBlade SBi-161-DT3 Modules: *Processor Capacity: Dual 771-pin LGA Sockets, Quad-Core Intel® Xeon®Processor 5300, Dual-Core Intel® Xeon®Processor 5100/5000 sequence. *Processors per 42U Rack: 120. *Chipset: Intel® 5000P (Blackford) chipset. *Eight 240-pin DIMM sockets Supports up to 32 GB 667 / 533MHz DDR2 ECC FB-DIMM memory. *Hard Disk Drive: Two hot-plug 3.5" SATA or SAS hard disk drives. *InfiniBand Support: 4x DDR(20Gb/s) InfiniBand mezzanine HCA. *Ethernet Support: Intel 82563EB dual-port gigabit Ethernet controller. *Management: Chassis management module(CMM)provides IPMI2.0 functionalities. *Graphics: ATI ES1000 with 16MB of Sdram. *LED Indicators: Power LED, UID/KVM LED, Networking LED, Fault LED. *10~35 C non-condensing. *Dimensions(HxWxD): 11.32"x1.67"x18.5"
SuperBlade SBi-4119MG-X, E-2100/LGA1151,3x PCIe, Video, 2x 10GB/X710,1x NVMe/SATA M.2,IPMI,D4(128GB)
Starting atContact Sales
Key Features 1. 100 CPUs per 42U Rack 2. Single socket H4 (LGA 1151) supports Intel® Xeon® processor E-2100 series 3. Intel® C246 chipset 4. 1 NVMe/SATA M.2, 1 SATA DOM, 1 PCI-E 3.0 x16, 2 PCI-E 3.0 x8 5. Up to 128GB ECC UDIMM, up to DDR4-2666MHz; 4 DIMM slots 6. Dual port 10G onboard 7. IPMI 2.0, KVM over IP, Virtual Media over LAN 8. Graphics: Aspeed AST2500 BMC

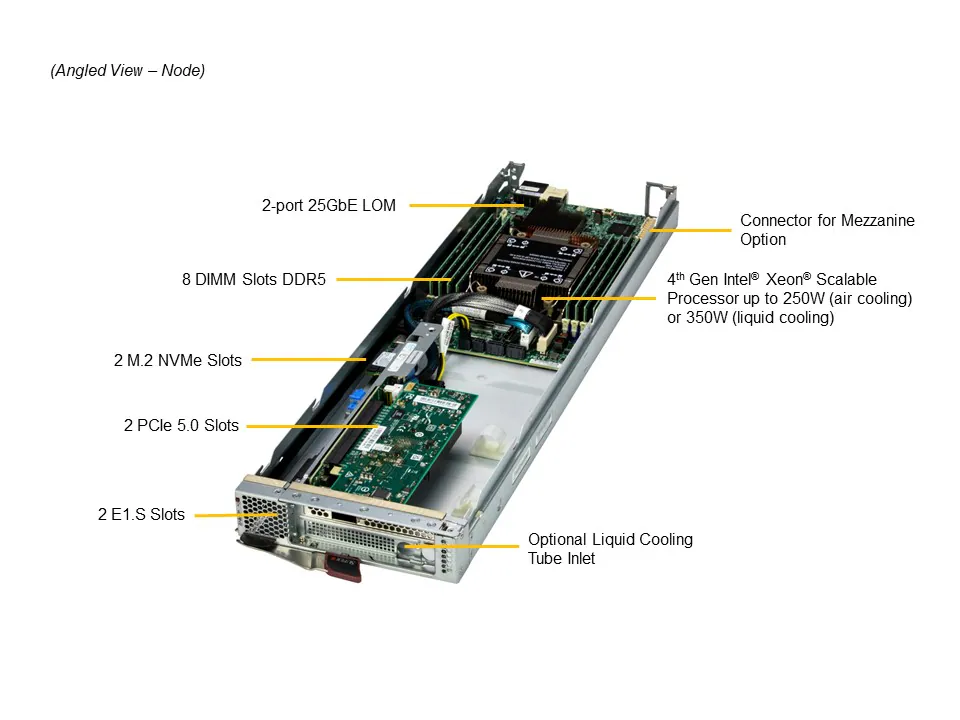

SuperBlade SBi-411E-1G,1xLGA-4677,Video,2xPCIe5,2xE1.S Slots,2x25GB,2xM.2,IPMI,D5(1TB),8U/20 Blades
Starting atContact Sales
Key Applications - Enterprise data center - FSI - AI/ML Key Features 1. 100 servers per 42U Rack 2. Single socket E (LGA-4677) supports 4th Gen Intel® Xeon® Scalable processors 3. Intel® C741 chipset 4. 8 DDR5 DIMM slots, 1DPC with 4800MHz ECC RDIMM 5. Support up to 8 drives per blade 6. Dual-port 25G Ethernet (LOM), additional 200G/100G InfiniBand or dual-port 25G Ethernet via mezzanine card 7. 2 low profile network cards support, e.g. 400G NDR InfiniBand card or 2 HHHL GPUs 8. Liquid cooling solution is available* * Please contact your Supermicro sales rep for more info. Note: Complete system should include at least 1 CPU, 1 DIMM, & 1 HDD/SSD.
SuperBlade SBi-411E-5G,1xLGA-4677,Video,2xPCIe5,2xE1.S Slots,2x25GB,2xM.2,IPMI,D5(1TB),8U/10 Blades
Starting atContact Sales
Key Applications - Enterprise data center - FSI - AI/ML Key Features 1. 100 servers per 42U Rack 2. Single socket E (LGA-4677) supports 4th Gen Intel® Xeon® Scalable processors 3. Intel® C741 chipset 4. 8 DDR5 DIMM slots, 1DPC with 4800MHz ECC RDIMM 5. Support up to 8 drives per blade 6. Dual-port 25G Ethernet (LOM), additional 200G/100G InfiniBand or dual-port 25G Ethernet via mezzanine card 7. 2 low profile network cards support, e.g. 400G NDR InfiniBand card or 2 HHHL GPUs 8. Liquid cooling solution is available* * Please contact your Supermicro sales rep for more info. Note: Complete system should include at least 1 CPU, 1 DIMM, & 1 HDD/SSD.

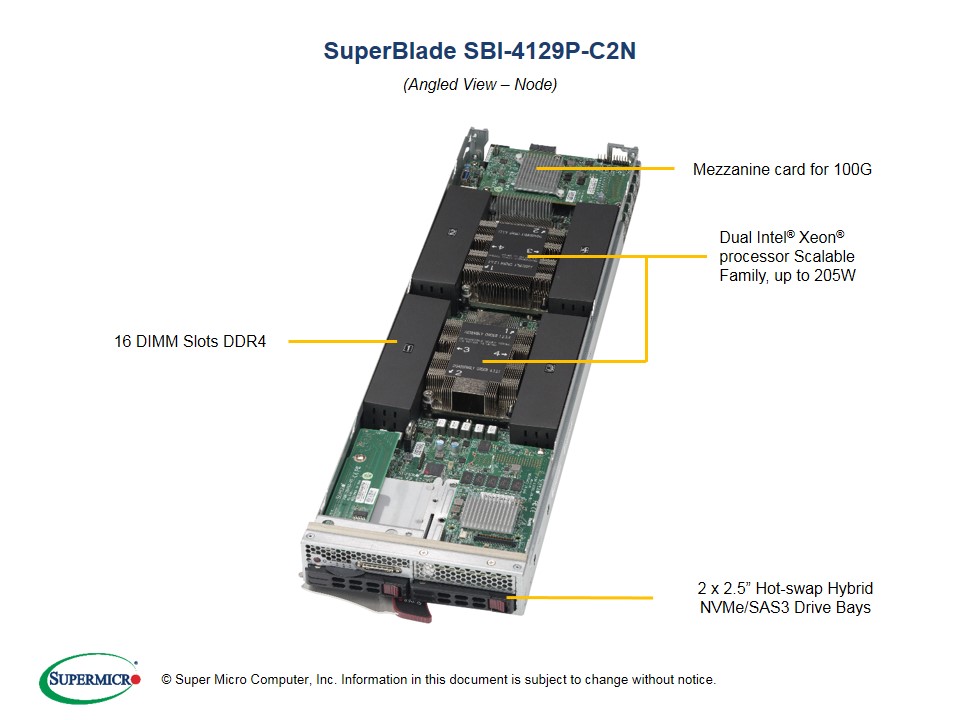

SuperBlade SBi-4129P-C2N, 2x LGA3647, Video,2x 10GB LAN,2x HS 2.5" NVMe/SAS3/SATA3 Bays,IPMI,D4(2TB)
Starting atContact Sales
Key Features 1. 200 CPUs per 42U Rack 2. Dual socket P (LGA 3647) supports Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s 3. Intel® C622 chipset 4. 2 Hot-plug 2.5" NVMe/SAS3/SATA3 drive bays; 4 PCI-E x4 M.2 (via Mezzanie Card) 5. 16 DDR4 LRDIMM/RDIMM slots 6. Dual 10G onboard and high speed network options (via 25G/100G EDR /Omni-Path Mezzanine card) 7. IPMI 2.0, KVM over IP, Virtual Media over LAN 8. Graphics: Aspeed AST2500 BMC

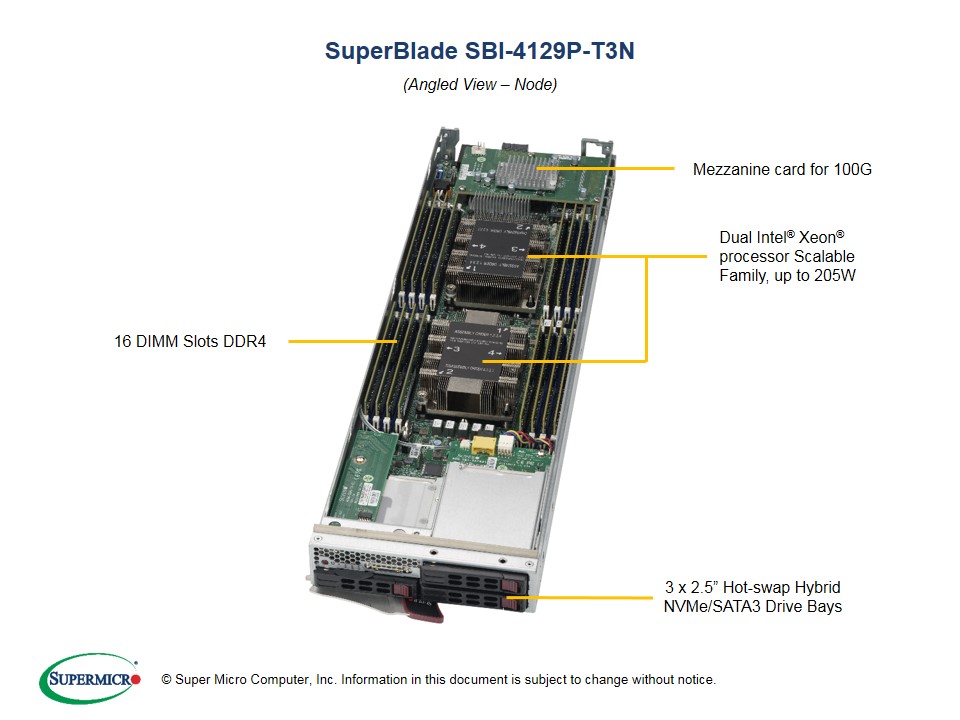

SuperBlade SBi-4129P-T3N, 2x LGA3647, Video,2x 10GB LAN,2x HS 2.5" NVMe + 1x SATA3 Bays,IPMI,D4(2TB)
Starting atContact Sales
Key Features 1. 200 CPUs per 42U Rack 2. Dual socket P (LGA 3647) supports Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s 3. Intel® C622 chipset 4. 2 Hot-plug 2.5" NVMe + 1 SATA3 drive bays or 3 SATA3 drive bays; 4 PCI-E x4 M.2 (via Mezzanie Card) 5. 16 DDR4 LRDIMM/RDIMM slots 6. Dual 10G onboard and high speed network options (via 25G/100G EDR /Omni-Path Mezzanine card) 7. IPMI 2.0, KVM over IP, Virtual Media over LAN 8. Graphics: Aspeed AST2500 BMC
SuperBlade SBi-420P-1C2N,2x LGA-4189,Video,2x25GB LAN,2x HS 2.5" NVMe/SAS3,1x NVMe M.2,IPMI,D4(4TB)
Starting atContact Sales
Blade SBI-420P-1C2N (Complete System Only): Key Applications - Data center - High-performance Computing (HPC) Key Features 1. 200 CPUs per 42U Rack 2. Dual socket P+ (LGA-4189) supports 3rd Gen Intel® Xeon® Scalable processors 3. Intel® C621A chipset 4. 16 DIMMs; up to 4TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM 5. 2 Hot-plug 2.5" NVMe/SAS3/SATA3 drive bays; 1 NVMe M.2 6. Dual 25G onboard Ethernet 7. IPMI 2.0, KVM over IP, Virtual Media over LAN 8. Graphics: Aspeed AST2600 9. Cooling: Passive CPU heatsink CPU1: SNK-P1044V CPU2: SNK-P0077V
SuperBlade SBi-420P-1T3N,2x LGA-4189,Video,2x25GB LAN,3x HS 2.5" NVMe/SATA3,1x NVMe M.2,IPMI,D4(4TB)
Starting atContact Sales
Blade SBI-420P-1T3N (Complete System Only): Key Applications - Data center - High-performance Computing (HPC) Key Features 1. 200 CPUs per 42U Rack 2. Dual socket P+ (LGA-4189) supports 3rd Gen Intel® Xeon® Scalable processors 3. Intel® C621A chipset 4. 16 DIMMs; up to 4TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM 5. 2 Hot-plug 2.5" NVMe/SATA3 drive bays; 1 Hot-Plug 2.5" SATA3 drive bay, 1 NVMe M.2 6. Dual 25G onboard Ethernet 7. IPMI 2.0, KVM over IP, Virtual Media over LAN 8. Graphics: Aspeed AST2600 9. Cooling: Passive CPU heatsink CPU1: SNK-P1044V CPU2: SNK-P0077V
SuperBlade SBi-420P-4T2N,2xLGA-4189,Video,2x25GB LAN,2x HS 2.5" NVMe/SATA3,1xNVMe M.2,IPMI,D4(512GB)
Starting atContact Sales
Blade SBI-420P-4T2N (Complete System Only): Key Applications - Data center - High-performance Computing (HPC) Key Features 1. 280 CPUs per 42U Rack 2. Dual socket P+ (LGA-4189) supports 3rd Gen Intel® Xeon® Scalable processors 3. Intel® C621A chipset 4. 16 DIMMs; up to 512GB ECC VLP DDR4-3200MHz RDIMM 5. 2 Hot-plug 2.5" NVMe/SATA3 drive bays; 1 NVMe M.2 6. Dual 25G onboard Ethernet 7. IPMI 2.0, KVM over IP, Virtual Media over LAN 8. Graphics: Aspeed AST2600 9. Cooling: Passive CPU heatsink CPU1: SNK-P1044V CPU2: SNK-P0077V

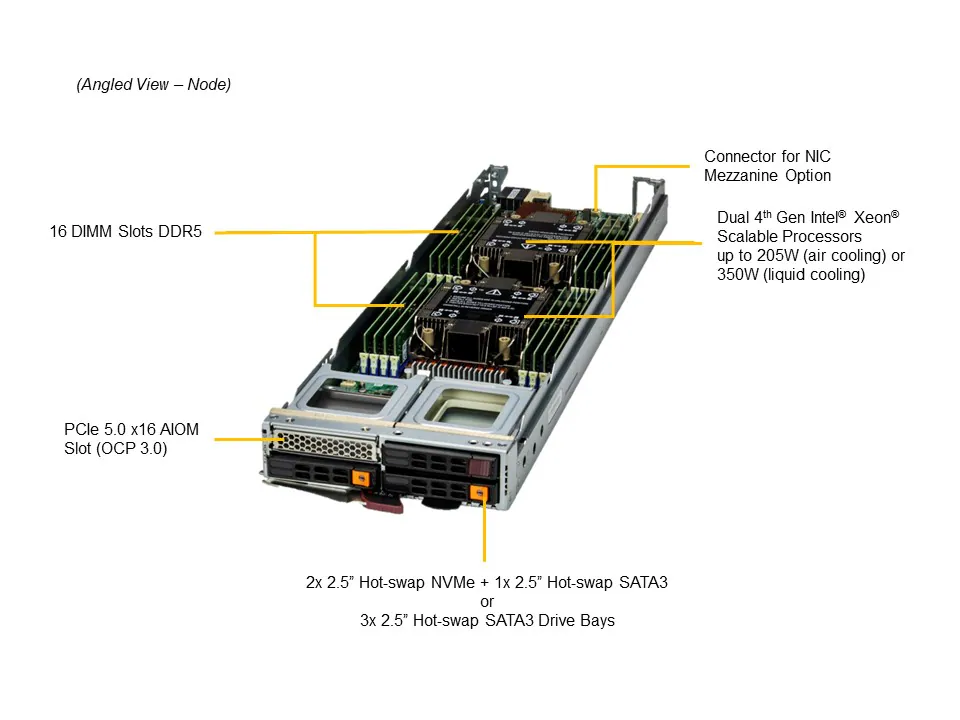

SuperBlade SBi-421E-1T3N,2xLGA-4677,Video,2x25GB,3xHS 2.5" NVMe/SATA,M.2,IPMI,D5(4TB),8U/20x Blades
Starting atContact Sales
Key Applications - Enterprise data center - EDA, Cloud - High-performance Computing (HPC) Key Features 1. 100 servers per 42U Rack 2. Dual socket E (LGA-4677) supports 4th Gen Intel® Xeon® Scalable processors 3. Intel® C741 chipset 4. 16 DDR5 DIMM slots, 1DPC with 4800MHz ECC RDIMM 5. Support up to 8 drives per blade 6. Dual-port 25G Ethernet (LOM), additional 200G/100G InfiniBand or dual-port 25G Ethernet via mezzanine card 7. OCP 3.0 network card support, e.g. 400G NDR InfiniBand card* 8. Liquid cooling solution is available* * Please contact your Supermicro sales rep for more info.
