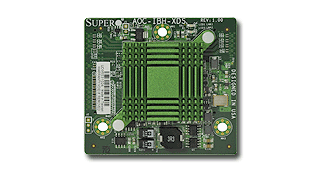

SuperBlade AOC-IBH-XDS, Mezzanine HCA, Single 4x DDR 20Gbps ports, Support both IB & 10G
Starting atContact Sales
InfiniBand Mezanine HCA Cards For any blade to access the InfiniBand module, it must have an InfiniBand mezzanine HCA card installed on its mainboard. The AOC-IBH-001, AOC-IBH-002, AOC-IBH-003 and AOC-IBH-XDD mezzanine cards provide this 20-Gbps connectivity (4x DDR) through the backplane to the InfiniBand switch module. The AOC-IBH-003 and AOC-IBH-XDD can alternatively be used for 10-Gbps Ethernet connectivity when used in concert with the SBM-XEM-002 10-Gbps Pass-through module.

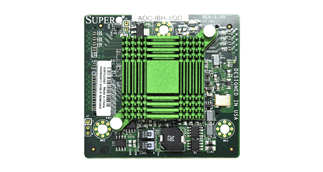

SuperBlade AOC-IBH-XQD, Mezzanine HCA, InfiniBand Two 4x QDR 40Gbps/One or Two 10-Gbps
Starting atContact Sales
SuperBlade AOC-IBH-XQD InfiniBand Two 4x QDR 40Gbps/One or Two 10-Gbps Mezzanine HCA

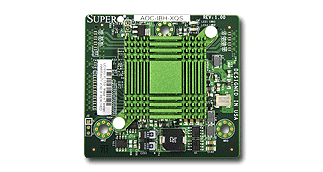

SuperBlade AOC-IBH-XQS, Mezzanine HCA, InfiniBand Single port 4x QDR 40Gbps
Starting atContact Sales
Single Port, Low Latency InfiniBand Adapter Cards For SuperBlade AOC-IBH-XQS This InfiniBand mezzanine card for the SuperBlade delivers low-latency and high-bandwidth for performance-driven server and storage clustering applications in Enterprise Data Centers, High-Performance Computing, and Embedded environments. Clustered data bases, parallelized applications, transactional services and high-performance embedded I/O applications will achieve significant performance improvements resulting in reduced completion time and lower cost per operation. AOC-IBH-XQS simplifies network deployment by consolidating clustering, communications, storage, and management I/O and by providing enhanced performance in virtualized server environments. In addition to this outstanding InfiniBand capability, the AOC-IBH-XQS can be configured alternatively as 10-Gigabit Ethernet NIC when used with the Supermicro SBM-XEM-002 10-Gigabit Pass-Through module.
SuperBlade AOC-OPH-WFR-O, Omni-path mezzanine card, 100Gbps link speed
Starting atContact Sales
SuperBlade AOC-OPH-WFR-O, Omni-path mezzanine card, 100Gbps link speed
SuperBlade AOC-XEH-B2S-O
Starting atContact Sales
SuperBlade AOC-XEH-B2S-O

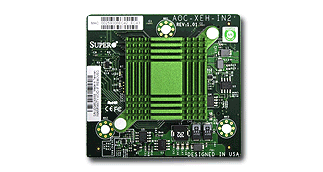

SuperBlade AOC-XEH-iN2, Dual Port 10G Ethernet AOC for Blade
Starting atContact Sales
AOC-XEH-iN2 This 10-Gigabit Ethernet mezzanine card for the SuperBlade delivers cost-effective high-bandwidth for performance-driven server and storage clustering applications in Enterprise Data Centers, High-Performance Computing, and Embedded environments. Clustered data bases, parallelized applications, transactional services and high-performance embedded I/O applications will achieve significant performance improvements resulting in reduced completion time and lower cost per operation. AOC-XEH-iN2 simplifies network deployment by consolidating clustering, communications, storage, and management I/O and by providing enhanced performance in virtualized server environments. It operates as a 10-Gigabit Ethernet NIC when used with either the Supermicro SBM-XEM-002 10-Gigabit Pass-Through module or with the Supermicro 10-Gigabit Ethernet Blade switch SBM-XEM-X10SM.
SuperBlade GEM-001 GB Ethernet Switch, BCM5345M, 10x 1-Gbps Up+DownLink, 21 Gbps non-blocking
Starting atContact Sales
Gigabit Ethernet Switch GEM001 Chipset Broadcom BCM5345M Internal Ports Ten 1-Gbps downlink ports for LAN interfaces of the server blades (capable of 14 internal ports) External Uplink Ports Ten 1-Gbps uplink RJ-45 ports Type Layer-2 switch Bandwidth 21 Gbps non-blocking Trunking Link aggregation support Jumbo Frame Support Up to 9k bytes Remote Management Browser-based management Protocols Spanning Tree, Rapid Spanning Tree, and Multiple Spanning Tree protocols (802.1D/1s/1w) OS Firmware upgradeable
SuperBlade GEM-002 GB Ethernet Pass-Through Module, 14x 1-Gbps Up+DownLink Ports
Starting atContact Sales
Pass-Through The Gigabit Ethernet Pass-through Module (part ID SBM-GEM-002) is a non-configurable pass through module that includes fourteen 1-Gb/s external uplink (RJ45) ports and fourteen internal 1-Gb/s downlink ports for the SuperBlade®'s LAN interfaces. This module also has two internal Ethernet paths to the CMM(s) for viewing module temperature and voltage (but not for configuration since all connections are fixed).

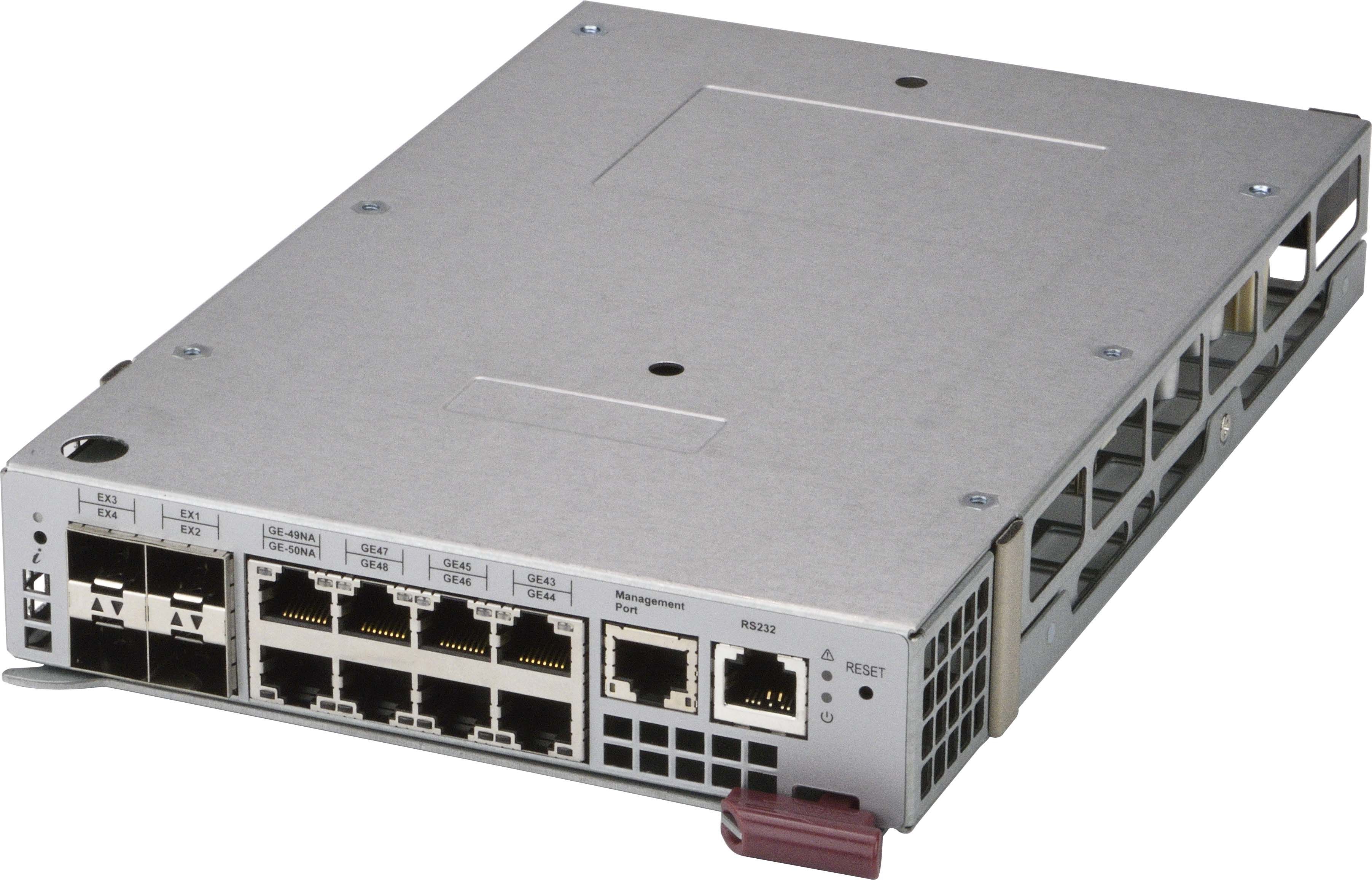

SuperBlade GEM-004,GB Ethernet Switch, BCM56151, 4x 10Gb/SFP+ & 8x 1Gb Uplinks, 28x 1Gb DownLink,
Starting atContact Sales
SuperBlade GEM-004,GB Ethernet Switch, BCM56151, 4x 10Gb/SFP+ & 8x 1Gb Uplinks, 28x 1Gb DownLink,
SuperBlade GEM-X2C+, 1/10 Gigabit Ethernet Switch Module, 20x 1-Gbps(Downlink)/3x 10-Gbps(Uplink)
Starting atContact Sales
SBM-GEM-X2C/+* (TwinBlade¿) Internal Ports * Up to twenty 1-Gbps downlink ports for LAN interfaces of the server blades External Uplink Ports * Three 10-Gbps uplink ports (Two CX4, stackable & One SFP+) * Two 1-Gbps RJ-45 uplink ports Type * Layer-2 / 3 switch Switching Capacity * 112Gbps Trunking * Link aggregation support (802.3ad-full) Jumbo Frame Support * Up to 9k bytes Remote Management * Browser-based management / CLI Protocols * STP, RSTP, MSTP, IGMP snooping, 802.1x OS * Firmware upgradeable Download * CLI Manual [ Download ] * Firmware [ Download ] - Release 1.0.7-4
SuperBlade GEM-X3S+, 1/10 Gigabit Ethernet Switch w/SFP+, 20x 1-Gbps(Downlink)/3x 10-Gbps(Uplink)
Starting atContact Sales
Internal Ports Up to twenty 1-Gbps downlink ports for LAN interfaces of the server blades External Uplink Ports Three 10-Gbps SFP+ uplink ports Four 1-Gbps RJ-45 uplink ports Type Layer-2 / 3 switch Switching Capacity 104 Gbps Trunking Link aggregation support (802.3ad-full) Jumbo Frame Support Up to 9k bytes Remote Management Browser-based management / CLI Protocols STP, RSTP, MSTP, IGMP snooping, 802.1x, LACP, DHCP, RIP/OSPF, ACL, QoS OS Firmware upgradeable Download CLI Manual [ Download ] Firmware [ Download ]
SuperBlade PWS-1K41-BR, 1400W Redundant Module(3+1), +12V/116A, 100~240VAC
Starting atContact Sales
SuperBlade PWS-1K41-BR: *1400W Output, *Redundant Module(3+1), *+12V: 116A(220~240VAC input), 100A(100-140VAC input), *5VSB, 16A, *PFC, *90%+ Peak Efficiency *100~240VAC Input AC Range, *Operating Conditions: Temp: -5 to 50 C, Humidity: 5 to 95%% RH, *Fan Type: 2x 90mm fanx - PFC0912DE-6L38(8000 RPM with PWM). *
SuperBlade PWS-1K62-BR, 1600W Redundant Module(3+1), +12V/167A, 200~240VAC
Starting atContact Sales
SuperBlade PWS-1K62-BR: *1600W Output, *Redundant Module(3+1), *+12V: 167A, *5VSB, 16A, *PFC, *90%+ Peak Efficiency *200~240VAC Input AC Range, *Operating Conditions: Temp: -5 to 50 C, Humidity: 5 to 95%% RH, *Fan Type: 4x 90mm fanx - PFB0912DHE-6X39(8000 RPM) - QFR0912UHE-6F78(8300 RPM). *
SuperBlade PWS-2K01-BR, 2000W Redundant Module(3+1), +12V/167A, 200~240VAC
Starting atContact Sales
SuperBlade PWS-2K01-BR: *2000W Output, *Redundant Module(3+1), *+12V: 167A, *5VSB, 16A, *PFC, *90%+ Peak Efficiency *200~240VAC Input AC Range, *Operating Conditions: Temp: -5 to 50 C, Humidity: 5 to 95%% RH, *Fan Type: 4x 90mm fanx - PFB0912DHE-6X39(8000 RPM) - QFR0912UHE-6F78(8300 RPM). *
SuperBlade PWS-2K51-BR, 2500W Redundant Module(3+1), +12V/208A, 200~240VAC
Starting atContact Sales
SuperBlade PWS-2K51-BR: *2500W Output, *Redundant Module(3+1), *+12V: 208A, *5VSB, 16A, *PFC, *90%+ Peak Efficiency *200~240VAC Input AC Range, *Operating Conditions: Temp: -5 to 50 C, Humidity: 5 to 95%% RH, *Fan Type: 4x 90mm fanx - PFC0912DE-6L38(8000 RPM with PWM) - QFR0912UHE-6K66(8300 RPM with PWM). *
SuperBlade SBM-IBP-D14, BLADE 4X DDR INFINIBAND PASS-THROUGH MODULE
Starting atContact Sales
SuperBlade SBM-IBP-D14, BLADE 4X DDR INFINIBAND PASS-THROUGH MODULE
SuperBlade SBM-IBS-001 InfiniBand Switch Module, Ten 4x DDR Int+Ten 4x DDR Ext Ports, IBML, 960Gbps
Starting atContact Sales
InfiniBand Switch Module The InfiniBand Switch Module (part ID SBM-IBS-001) is a switch-based, point-to-point bi-directional serial link system. It provides high-speed interconnectivity among the blade modules and to external InfiiniBand peripherals. The InfiniBand switch supports 4X DDR connections ¿ 20 gigabits per second ¿ the fastest currently offered in the industry.
SuperBlade SBM-IBS-E3616, 8U SuperBlade EDR 100G InfiniBand switch
Starting atContact Sales
InfiniBand Switch Module The InfiniBand Switch Module (part ID SBM-IBS-001) is a switch-based, point-to-point bi-directional serial link system. It provides high-speed interconnectivity among the blade modules and to external InfiiniBand peripherals. The InfiniBand switch supports 4X DDR connections ¿ 20 gigabits per second ¿ the fastest currently offered in the industry.
SuperBlade SBM-IBS-F3616M, 40Gb/56Gb InfiniBand Switch, 20x FDR10 Ports @ 40Gb,Sixteen 4x QDR w/QSFP
Starting atContact Sales
SuperBlade SBM-IBS-F3616M, 40Gb/56Gb InfiniBand Switch, 20x FDR10 Ports @ 40Gb,Sixteen 4x QDR w/QSFP
SuperBlade SBM-IBS-Q3616 InfiniBand Switch, 14/20 4x QDR(Down), 14/16 4x QDR(Up), 2.88Tbps Bandwidth
Starting atContact Sales
SBM-IBS-Q3618*/ SBM-IBS-Q3616*/ SBM-IBS-Q3616M* Switch Chip * Mellanox InfiniScale IV Internal Ports * Eighteen/Twenty 4x QDR downlink ports External Uplink Ports * Eighteen/Sixteen 4x QDR QSFP uplink ports Bandwidth * 4x QDR (40-Gbps) non-blocking architecture 2.88Tbps total switch bandwidth (36-Port)
