Product Overview

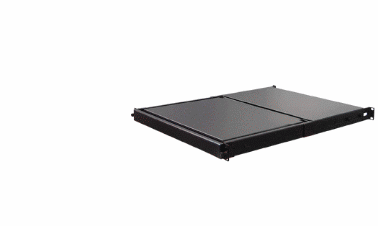

1U Rackmount 15" LCD Keyboard Drawer, PS/2 notebook keyboard & touch pad, Optional keyboard RKP115e, RKP115b, RKP115c & USB keyboard Features Unique mechanical design to maximize rack mountable space. Adjustable mounting brackets from 390mm to 740mm. (front to rear 19¿ mounts) Black anodized aluminium front panel Lightweight aluminum construction ¿ with a black anodize finish Two keyboard selections supporting multiple languages. Built-in on screen display controlled by integral membrane switches Standard D-sub 15-pin VGA input connector Lock out rails to prevent movement of the keyboard Front- access lock for security Supplied with 12V 5A remote power adapter (single power source) Rear rackmount bracket included.

Specifications

Model
RKP115E
Panel
15" LCD Panel
Display type
TFT/ LCD active matrix color
Resolution
1024 x 768
Response time
Tr=5ms/ Tf=20ms
Contrast ratio
400 : 1 typical
Brightness
250 cd/ m 2 typical
Pixel pitch
0.297mm (H) x 0.297mm (W)
Panel color
16.7 million display colors
Viewing angel
130° (Horiz.)/ 110° (Vert.)
Storage temp
-25°C to 60°C
Operating temp
0°C to 50°C
MTBF
35,000 hours
Power supply
110V 220V AC Input, 12V 5A Output
Dimension
43.9(W) x 4.45(H) x 60(D)cm
Weight (lbs):
40.00
