Product Overview
Key Features Intel® Xeon® processor E3-1585L v5, Single socket FCBGA 1440, 4-Core, 8 Threads, 45W Intel® C236 chipset Up to 64GB ECC Unbuffered SO-DIMM, DDR4 2133MHz; 4 DIMM slots Support Intel® Iris Pro Graphics P580 (GT4e) , for VHD and Quick Sync Video Expansion slots: 1 PCI-E 3.0 x8 (in x16), 1 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8) 6 SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10 2 SuperDOM with built-in power 5 USB 3.0 (2 rear, 1 Type A, 2 internal) M.2 NGFF connector
Specifications
Product SKUs

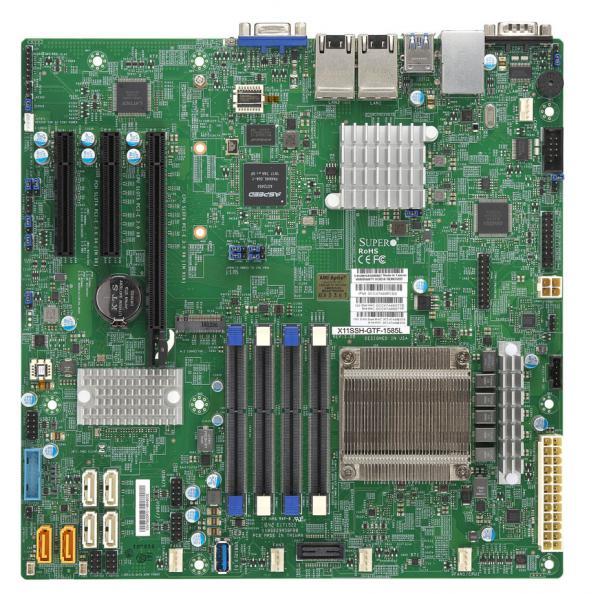

X11SSH-GF-1585L
Physical Stats
Form Factor: Micro-ATX Dimensions: 9.6" x 9.6" (24.38cm x 24.38cm)
Processor/Cache
CPU: Intel® Xeon® processor E3-1585L v5. Socket FCBGA1440 supported, CPU TDP support 45W
System Memory
Memory Capacity: 64GB Unbuffered ECC SO-DIMM, DDR4-2133MHz, in 4 DIMM slots Memory Type: 2133/1866/1
On-Board Devices
Chipset: Intel® C236 SATA: Intel® C236 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10 IPMI Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
LAN:RJ45 Shared IPMI LAN port USB: 8 USB 2.0 ports (2 rear + 6 via header(s)), 5 USB 3.0 ports (2 rear + 2 via header(s) + 1 Type A) Video Output 1 VGA port(s) Serial Port / Header: 2 COM Ports (1 rear, 1 header(s))
Expansion Slots
PCI-E:1 PCI-E 3.0 x8 (in x16 slot), 1 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8 slot) M.2: Interface: PCIe 3.0 x4 and SATA Form Factor: 2242, 2280, 22110
System BIOS
BIOS Type: 128Mb SPI Flash EEPROM with AMI BIOS BIOS Features: ACPI 1.0 / 2.0 / 3.0 / 4.0 SMBIOS 2.7.1 APM 1.2 DMI 2.3 UEFI 2.3.1 Hardware BIOS Virus protection USB Keyboard support RTC (Real Time Clock) Wakeup
Management
Software: Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SPM, SUM, SuperDoctor® 5, Watchdog Power Configurations: ACPI Power Management Power-on mode for AC power recovery
PC Health Monitoring
Voltage: +1.8V, +12V, +3.3V, +5V, +5V standby, 3.3V standby, 8 -fan status, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, VBAT FAN: 8x 4-pin fan headers (up to 8 fans), Fan speed control, Overheat LED indication,
Operating Environment
Operating Temperature Range: 0°C ~ 50°C (32°F ~ 122°F) Non-Operating Temperature Range: -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range: 8% - 90% (non-condensing) Non-Operating Relative Humidity Range: 5% - 95% (non-condensing)
