Product Overview

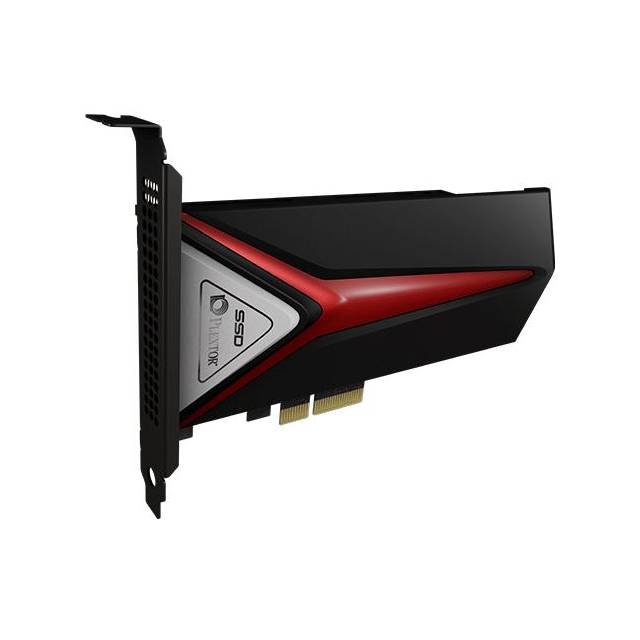

Mfr Part Number: PX-256M8PEY ¿Capacity: 256GB ¿Form Factor: Standardized PCl Express Card w/ Half-Height/Half-Length ¿Interface: PCI-Express 3.0 x 4 w/ NVM Express ¿NAND Flash: TOSHIBA 15nm Toggle MLC ¿Controller: Marvell 88SS1093 ¿DRAM Cache: 512MB LPDDR3 ¿Performance:◦Sequential Read Rate: Up to 2,000 MB/s ◦Sequential Write Rate: Up to 900 MB/s ◦Random Read Rate: Up to 210,000 IOPS ◦Random Write Rate: Up to 230,000 IOPS ¿Shock: 1500G @ 1 msec half-sine ¿Vibration: 7 ~ 800Hz, 2.17Grms (Operation) ¿MTBF: 2,400,000 hours ¿DC Requirement: DC 12V 2.0A (Max.) at PCIE Slot ¿Connectors: ◦Power: DC 12V PCI Express Slot ◦Data: PCI Express Slot ¿Operating System Supported: Windows 8.1/ 10, Linux OS ¿Certifications: UL, TUV, FCC, CE, BSMI, VCCI, RCM, KCC, EAC, ROHS, WHQL ¿Dimensions (WxLxH): 4.77 x 7.17 x 0.88 inch / 121.04 x 182.00 x 22.39 mm ¿Weight: 8.11 oz / 230.0 g (Max.)
