Product Overview

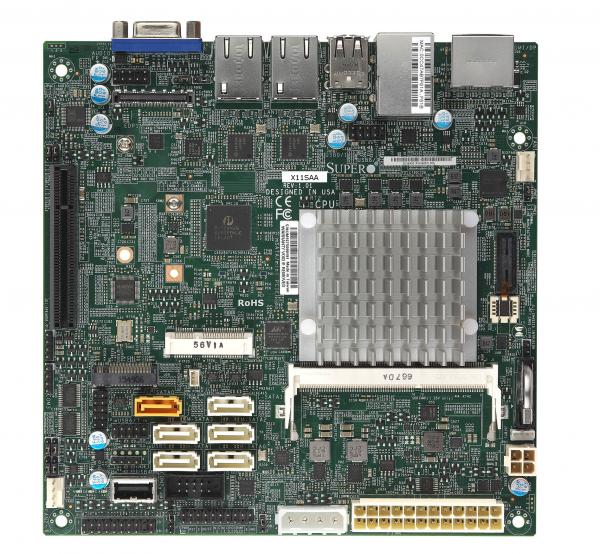

Key Features Intel® Pentium¿ Processor N4200 (6W, 4C) Intel® Goldmont microarchitecture 14nm System-on-Chip Up to 8GB 1866MHz DDR3L Non-ECC SO-DIMM in 1 sockets 1 PCI-E 2.0 x2 (in x8), 1 Mini-PCIe (mSATA support) and 2 SATA 3.0 1 M.2 M-key with SATA 4 SATA 3.0 (RAID 0, 1, 5, 10) 1 HDMI, 1 DP, 1 VGA or 1 eDP, Intel HD Graphic 3 independent displays Dual GbE LAN with Intel® i210-AT 2 USB 3.0 ports, 7 USB 2.0 ports, 3 COM ports, and 1 DOM connector 12V DC Input and ATX Power Source
Specifications
Product SKUs
X11SSA-F
Physical Stats
Form Factor: ATX, Dimensions: 12" x 9.6" (30.48cm x 24.38cm)
Processor/Cache
CPU: Intel® 7th/6th Generation Core i3 series Intel® Celeron® Intel® Pentium® Intel® Xeon® Processor E3-1200 v6/v5 series Socket H4 (LGA 1151) supported; CPU TDP support 80W Note :BIOS version 2.0 or above is required to support 7th Generation Intel® Core
System Memory
Memory Capacity: 64GB Unbuffered ECC UDIMM, DDR4-2400MHz, in 4 DIMM slots Memory Type: 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs DIMM Sizes :4GB, 8GB, 16GB Memory Voltage :1.2V Error Detection: Corrects single-bit err
On-Board Devices
Chipset: Intel® C236 SATA: Intel® C236 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10 IPMI: ASPEED AST2400 BMC Network Controllers : Dual Intel® Ethernet Controller I210-AT Graphics: Aspeed AT2400 BMC
Input / Output
USB: 6 USB 2.0 ports (2 rear, 4 via header(s) 5 USB 3.0 ports (2 rear, 2 via header(s), 1 Type A) Video Output: 1 VGA port(s) Serial Port / Header: 2 COM Ports (1 rear, 1 header(s)) TPM: TPM Header
Expansion Slots
PCI-E: 1 PCI-E 3.0 x8 1 PCI-E 3.0 x8 (in x16 slot) 1 PCI-E 3.0 x4 (in x8 slot) 4 - 5V PCI 32bit M.2: Interface: PCIe 3.0 x4 and SATA Form Factor: 2242, 2260, 2280, 22110
System BIOS
BIOS Type: 128Mb SPI Flash EEPROM with AMI BIOS BIOS Features: Plug and Play (PnP) APM 1.2 DMI 2.3 PCI 2.3 ACPI 1.0 / 2.0 / 3.0 / 4.0 USB Keyboard support Hardware BIOS Virus protection SMBIOS 2.7.1 UEFI 2.3.1 RTC (Real Time Clock) Wakeup
Operating Environment
Operating Temperature Range: 0°C ~ 60°C (32°F ~ 140°F)
Management
Software SuperDoctor® 5, Watchdog Power Configurations ACPI Power Management
PC Health Monitoring
Voltage: +1.8V, +12V, +3.3V, +5V, +5V standby, Monitors CPU voltages, System level control
