Product Overview
Key Features Intel® Pentium¿ Processor N4200 (6W, 4C) Intel® Goldmont microarchitecture 14nm System-on-Chip Up to 8GB 1866MHz DDR3L Non-ECC SO-DIMM in 1 sockets Dual GbE LAN with Intel® i210-AT 1 M.2 B-Key 2280, 1 Full size Mini-PCI-E, 1 SATA 3.0 1 HDMI, 1 VGA, 1 48-bit LVDS, Intel® HD Graphic 3 independent displays 1 USB 3.1 Gen2 Type-C port, 2 USB 3.0 ports, 4 USB 2.0 ports, 4 COM ports, 1 SATA 3.0, 8-bit GPIO, SMBus Supports on board TPM 2.0 Supports 12V DC power input
Specifications
Product SKUs

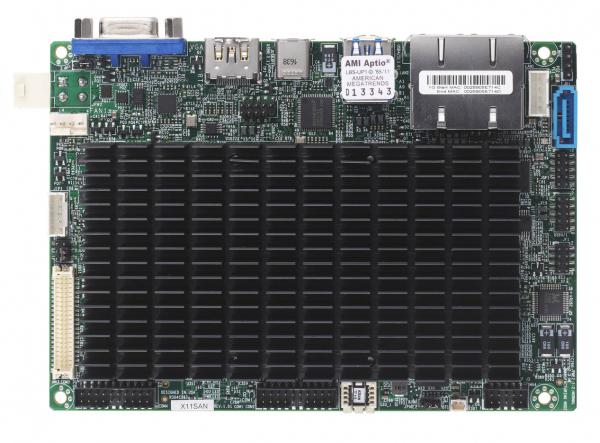

MBD-X11SAN ; X11SAN
Physical Stats
Form Factor :3.5" SBC Dimensions : 5.7" x 4.0" (14.6cm x 10.16cm)
Processor/Cache
CPU : Intel® Pentium¿ Processor N4200 Single Socket FCBGA1296 supported; CPU TDP support 6W
System Memory
Memory Capacity: Up to 8GB Unbuffered non-ECC SO-DIMM, DDR3-1866MHz, in 1 DIMM slots Memory Type : DDR3L up to 1866Mhz 8GB DIMM Sizes :2GB, 4GB, 8GB Memory Voltage: 1.35V
On-Board Devices
Chipset : System on Chip SATA : SoC controller for 1 SATA3 (6 Gbps) ports; Network Controllers: Dual LAN with Intel® Ethernet Controller I210-AT Audio : ALC 888S HD Audio Graphics Intel® HD Graphics
Input / Output
SATA : 1 SATA3 (6Gbps) port LAN: 2 RJ45 Gigabit Ethernet LAN ports USB:4 USB 2.0 ports (4 via header(s)) 2 USB 3.0 ports (2 rear) 1 USB 3.1 ports (1 Type C) Video Output: 1 VGA port(s), 1 LVDS port(s), 1 HDMI port(s) Serial Port / Header :4 COM Port
Expansion Slots
PCI-E;1 Full size Mini-PCIe (USB2.0 1,PCIe Gen2 x 1), 1 M.2 2280 B-Key for SATA or PCIe SSD (2242/3042 B-key M.2 module is supported by extender bracket) M.2 : Interface: SATA and PCIe 2.0 x1 and USB 2.0 Form Factor: B-Key 2280
System BIOS
BIOS Type : AMI UEFI BIOS Features : Plug and Play (PnP) DMI 2.3 ACPI 5.0 SMBIOS 2.7.1 UEFI 2.4
Management
Software: SuperDoctor® 5, Watchdog Power Configurations :+12V DC Power Input ACPI Power Management Control of power-on for recovery from AC power loss Force Power On by Jumper
PC Health Monitoring
Voltage :+1.35V, +12V, +3.3V, +5V, 3.3V standby, System level control, System temperature, VBAT, VCGI FAN: 1x 4-pin fan header (up to 1 fan) Fan speed control Low noise fan speed control PWM fan speed control System level control
Operating Environment
Operating Temperature Range : 0°C ~ 60°C (32°F ~ 140°F) Non-Operating Temperature Range :-40°C - 85°C (-40°F - 185°F) Operating Relative Humidity Range :8% - 90% (non-condensing) Non-Operating Relative Humidity Range:10% ~ 95% (non-condensing)
Management
Software: SuperDoctor® 5, Watchdog Power Configurations: +12V DC Power Input ACPI Power Management Control of power-on for recovery from AC power loss Force Power On by Jumper
Operating Environment
Operating Temperature Range: 0°C ~ 50°C (32°F ~ 122°F) Non-Operating Temperature Range: -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range: 8% - 90% (non-condensing) Non-Operating Relative Humidity Range: 5% - 95% (non-condensing)
