Product Overview
Key Features Up to 8GB 1866MHz DDR3L Non-ECC SO-DIMM in 1 socket Intel® Pentium¿ Processor N4200 (6W, 4C) Intel® Goldmont microarchitecture 14nm System-on-Chip Dual GbE LAN with Intel® i210-AT 1 M.2 B-Key 2280, 1 Full size Mini-PCI-E, 1 SATA 3.0 1 HDMI, 1 VGA, 1 48-bit LVDS, Intel® HD Graphic 3 independent displays 1 USB 3.1 Gen2 Type-C port, 2 USB 3.0 ports, 4 USB 2.0 ports, 4 COM ports, 1 SATA 3.0, 8-bit GPIO, SMBus Supports on board TPM 2.0 Supports 12V DC power input
Specifications
MBD

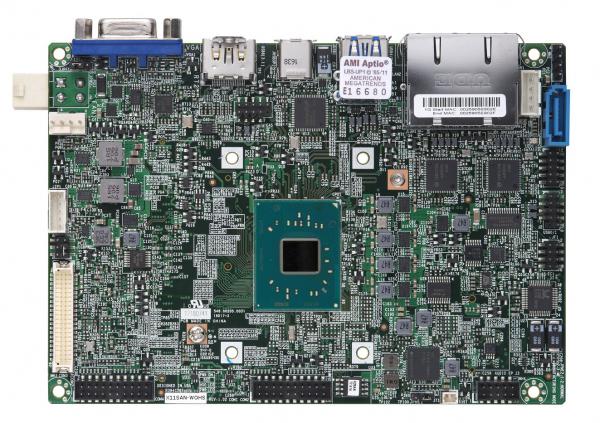

X11SAN-WOHS
PCI-Express
1 Full size Mini-PCI-E (USB2.0 1,PCI-E Gen2 x 1) 1 M.2 2280 B-Key for SATA or PCI-E SSD (2242/3042 B-key M.2 module is supported by extender bracket)
Physical Stats
3.5" SBC, 5.7" x 4.0" (14.6cm x 10.16cm)
Processor
Intel® Pentium¿ Processor N4200. Single Socket FCBGA1296 supported, CPU TDP support 6W
Cores / Cache
4 cores, 4 threads / 2MB L2 cache
Memory Capacity
Up to 8GB Unbuffered non-ECC SO-DIMM, DDR3-1866MHz, in 1 DIMM slot
Memory Type
DDR3L up to 1866Mhz 8GB
DIMM Sizes
2GB, 4GB, 8GB
Memory Voltage
1.35V
Chipset
System on Chip
M.2
M.2 Interface: SATA and PCI-E 2.0 x1 and USB 2.0 Form Factor: 2280 Key: B-Key
SATA
SoC controller for 1 SATA3 (6 Gbps) ports
Network Controllers
Dual LAN with Intel® Ethernet Controller I210-AT
Graphics
Intel® HD Graphics
LAN
2 RJ45 Gigabit Ethernet LAN ports
USB
4 USB 2.0 ports (4 headers), 2 USB 3.0 ports (2 rear), 1 USB 3.1 ports
Video Output
1 VGA port, 1 48-bit LVDS port, 1 HDMI port
Serial Port / Header
4 COM Ports (4 headers), (2 RS232, 2 RS232/422/485, RS-485 supports Auto flow control)
Others
1 HD Audio header (Mic-in/Headphone-out) 1 8-bit GPIO header 1 SMbus header 1 Panel backlight power header 1 Speaker 1 System Fan
