Key Features 7th Generation Intel® Core¿ i5-7300U Processor Up to 32GB Unbuffered Non-ECC SO-DIMM DDR4 2133MHz; 2 DIMM slots Dual GbE LAN w/ Intel i219LM + i210IT 1 M.2 B-Key 2280, 1 Full size Mini-PCI-E, 1 SATA 3.0 1 HDMI, 1 DP, 1 LVDS, Intel HD Graphics 3 independent displays 1 USB 3.1 Gen2 Type-C port, 2 USB 3.0 ports, 4 USB 2.0 ports, 4 COM ports, 1 SATA 3.0, 8-bit GPIO, SMBus Supports on board TPM 2.0 Support 12V DC power input (R/A Type Connector) Support HDMI 2.0
Specifications
MBD

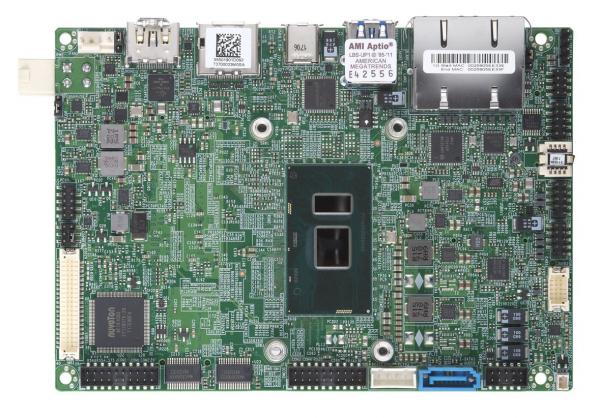

X11SSN-E-WOHS
PCI-Express
1 x Full size Mini-PCI-E with mSATA(USB2.0 x 1,PCI-E Gen3 x 1,SATA Gen3 x 1)
Physical Stats
3.5" SBC, 5.7" x 4.0" (14.6cm x 10.16cm)
Processor
7th Generation Intel® Core¿ i5-7300U Processor. Single Socket FCBGA1356 supported, CPU TDP support 15W
Cores / Cache
2 cores, 4 threads / 3MB cache
Memory Capacity
Up to 32GB Unbuffered non-ECC SO-DIMM, DDR4-2133MHz, in 2 DIMM slots
Memory Type
2133MHz Non-ECC DDR4 SDRAM 72-bit, 260-pin gold-plated SODIMMs
DIMM Sizes
4GB, 8GB, 16GB
Memory Voltage
1.2V
Chipset
System on Chip
M.2
M.2 Interface: SATA and PCI-E 3.0 x2 and USB 2.0 Form Factor: 2242, 2280, 3042 Key: B-Key M.2 2242/3042/2280 B-Key (USB2.0 x 1,PCI-E Gen3 x 2,SATA Gen3 x 1)
SATA
1 SATA3 (6Gbps) port
Network Controllers
Single LAN with Intel® PHY I219LM LAN controller Single LAN with Intel® Ethernet Controller I210IT
Graphics
Intel® HD Graphics Dual channel 48-bit LVDS(up to 1920x1200@60Hz), HDMI 2.0, DP(up to 4096X2304@60Hz)
USB
4 USB 2.0 ports (4 headers), 2 USB 3.0 ports (2 rear), 1 USB 3.1 ports ; 1 USB3.0 OTG Header
Video Output
1 DP (DisplayPort) port, 1 48-bit LVDS port, 1 HDMI port, DP++ (max. resolution up to 4096x2304@60Hz)
BIOS Type
AMI UEFI
