Product Overview
Key Features 8th Generation Intel® Core¿ i7/i5/i3/Pentium®/Celeron® Processor ., Single Socket H4 (LGA 1151) supported, CPU TDP support Up to 95W TDP Intel® Q370 Up to 64GB Unbuffered non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots 1 PCI-E 3.0 x16, 2 PCI-E 3.0 x4 (in x8 slot) M.2 Interface: 1 SATA/PCI-E 3.0 x4 M.2 Form Factor: 2280/22110 M.2 Key: M-Key 1 DVI - I port, 2 DP (DisplayPort) ports, 3 Independent Displays Intel® Q370 controller for 5 SATA3 (6 Gbps) ports; RAID 0,1,5,10 Single LAN with Intel® Ethernet Controller I210-AT Single LAN with Intel® PHY I219LM LAN controller
Specifications
MBD

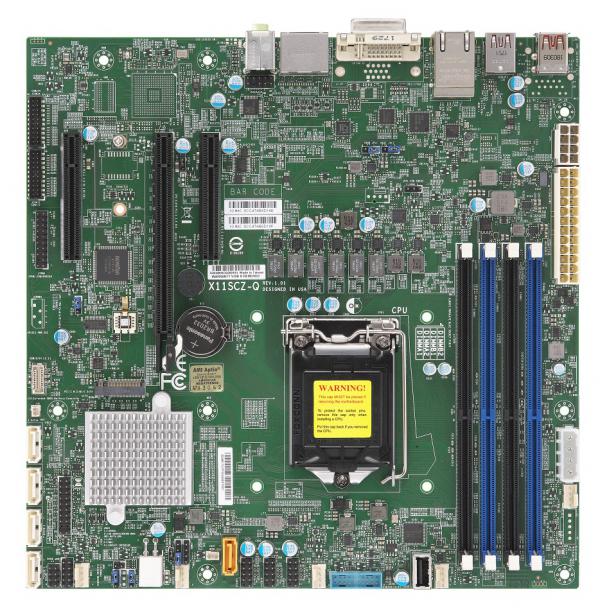

X11SCZ-Q
PCI-Express
1 PCI-E 3.0 x16, 2 PCI-E 3.0 x4 (in x8 slot)
Physical Stats
uATX, 9.6" x 9.6" (24.38cm x 24.38cm)
Processor
8th Generation Intel® Core¿ i7/i5/i3/Pentium®/Celeron® Processor . Single Socket H4 (LGA 1151) supported, CPU TDP support Up to 95W TDP
Memory Capacity
Up to 64GB Unbuffered non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
Memory Type
2666/2400/2133/1866/1600MHz Non-ECC DDR4 SDRAM 72-bit 288-pin UDIMM
DIMM Sizes
4GB, 8GB, 16GB
Memory Voltage
1.2V
Chipset
Intel® Q370
M.2
M.2 Interface: 1 SATA/PCI-E 3.0 x4 Form Factor: 2280/22110 Key: M-Key
SATA
Intel® Q370 controller for 5 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Network Controllers
Single LAN with Intel® Ethernet Controller I210-AT Single LAN with Intel® PHY I219LM LAN controller
LAN
2 RJ45 Gigabit Ethernet LAN ports
Graphics
Intel® HD Graphics 3 Independent Displays
USB
7 USB 2.0 ports (6 headers1 Type A) 2 USB 3.1 Gen1 ports Rear Type A) 6 USB 3.1 Gen2 ports (3 Rears Type A + 1 Rear Type C, 2 headers)
Video Output
1 DVI - I port, 2 DP (DisplayPort) ports, 3 Independent Displays
BIOS Type
AMI UEFI
BIOS Features
ACPI 6.1, SMBIOS 3.1, PCI FW 3.0, UEFI 2.6, RTC (Real Time Clock) Wakeup
