Product Overview
Key Features Intel® Xeon® Scalable Processors, Single Socket P (LGA 3647) supported, CPU TDP support 165W Intel® C621 Chipset Up to 768GB ECC 3DS LRDIMM, up to DDR4-2666MHz; 6x DIMM slots Expansion slots: 2 PCI-E 3.0 x16, 1 PCI-E 3.0 x8 (in x8) 2 GbE LAN ports 12 SATA3 (6Gbps) via C621 Supports 12V DC power input 4-pin Internal power connector 5 USB 3.0 (2 rear, 1 Type-A, 2 via header), 6 USB 2.0 (2 rear, 4 via headers) I/O: 1 VGA, 2 COM, TPM header
Specifications
MBD

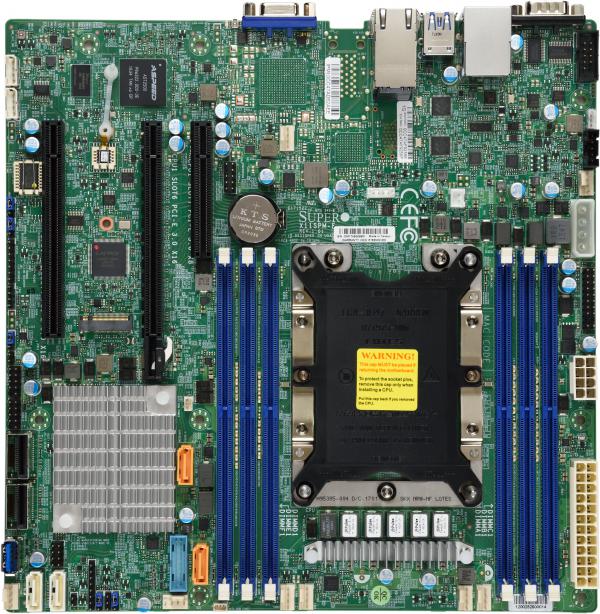

X11SPM-F
PCI-Express
2 PCI-E 3.0 x16, 1 PCI-E 3.0 x8
Physical Stats
microATX, 9.6" x 9.6" (24.38cm x 24.38cm)
Processor
Intel® Xeon® Scalable Processors. Single Socket P (LGA 3647) supported, CPU TDP support 165W
Cores / Cache
Up to 28 cores
Memory Capacity
6x 288-pin DDR4 DIMM slots, Up to 768GB ECC 3DS LRDIMM, Up to 384GB ECC LRDIMM, Up to 192GB ECC RDIMM
DIMM Sizes
2666/2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit 288-pin RDIMM/LRDIMM
Memory Voltage
RDIMM: 4GB, 8GB, 16GB, 32GB LRDIMM: 32GB, 64GB 3DS LRDIMM: 64GB, 128GB
Chipset
Intel® C621
M.2
M.2 Interface: PCI-E 3.0 x4 Form Factor: 2242, 2280 Key: M-Key Double Height Connector
SATA
12 SATA3 (6Gbps) port
Network Controllers
Dual LAN with 1GbE with Marvell® 88E1512
LAN
2 1GbE LAN ports
Graphics
Aspeed AST2500 BMC
USB
6 USB 2.0 ports (2 rear + 4 headers), 5 USB 3.0 ports (2 rear + 2 headers + 1 Type A)
Video Output
1 VGA port
BIOS Type
AMI UEFI
BIOS Features
ACPI 6.0 RTC (Real Time Clock) Wakeup SMBIOS 3.0 or later
