Product Overview
Key Features Intel® Xeon® Scalable Processors, Single Socket P (LGA 3647) supported, CPU TDP support 205W Intel® C621 Chipset Up to 768GB ECC 3DS LRDIMM, up to DDR4-2666MHz; 6x DIMM slots 3 PCI-E 3.0 x16 2 10GbE LAN ports 6 SATA (6Gbps) 5 USB 3.0 (2 rear, 1 Type-A, 2 via header), 4 USB 2.0 (2 rear, 2 via headers) 2 SuperDOM with built-in power I/O: 1 VGA, 1 COM, TPM header Dual M.2 NGFF connectors
Specifications
MBD

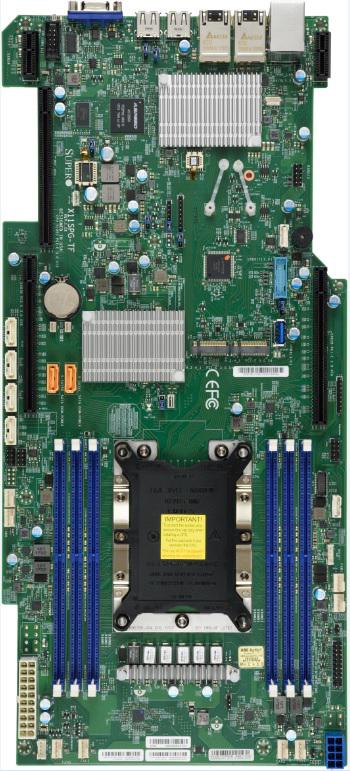

X11SPG-TF
PCI-Express
1 PCI-E 3.0 x16 Center Right Hand Slot, 1 PCI-E 3.0 x16 Left Riser Slot, 1 PCI-E 3.0 x16 Right Riser Slot
Physical Stats
7.71" x 16.64" (19.58cm x 42.27cm)
Processor
Intel® Xeon® Scalable Processors. Single Socket P (LGA 3647) supported, CPU TDP support 205W
Memory Capacity
6x 288-pin DDR4 DIMM slots, Up to 768GB ECC 3DS LRDIMM, Up to 384GB ECC LRDIMM, Up to 192GB ECC RDIMM
Memory Type
2666/2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit 288-pin RDIMM/LRDIMM
DIMM Sizes
RDIMM: 4GB, 8GB, 16GB, 32GB LRDIMM: 32GB, 64GB 3DS LRDIMM: 64GB, 128GB
Memory Voltage
1.2V
Chipset
Intel® C621
M.2
M.2 Interface: PCI-E 3.0 x4 and SATA Form Factor: 2280 Key: M-Key Double Height Connector
SATA
Intel® C621 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Network Controllers
Dual LAN with 10GBase-T with Intel® X550
LAN
2 RJ45 10GBase-T ports
Graphics
Aspeed AST2500 BMC
USB
4 USB 2.0 ports (2 rear + 2 headers), 5 USB 3.0 ports (2 rear + 2 headers + 1 Type A)
Video Output
1 VGA port
BIOS Type
AMI UEFI
BIOS Features
ACPI 6.0, RTC (Real Time Clock) Wakeup, SMBIOS 3.0 or later
