Product Overview
Key Features Intel® Xeon® Scalable Processors, Single Socket P (LGA 3647) supported, CPU TDP support 205W Intel® C622 chipset Up to 1TB ECC 3DS LRDIMM, up to DDR4-2666MHz; 8x DIMM slots Expansion slots: 1 PCI-E 3.0 x16 (x16 || x8), 1 PCI-E 3.0 x8 (x0 || x8), 1 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8) 2 10G SFP+ 10 SATA3 (6Gbps) via C622 8 SAS3 (12Gbps) via Broadcom 3008; RAID 0, 1, 10 2x Port NVMe PCI-E 3.0 x4 via OCuLink 5 USB 3.0 (2 rear, 1 Type-A, 2 via header), 8 USB 2.0 (2 rear, 6 via headers) I/O: 1 VGA, 2 COM, TPM header
Specifications
MBD

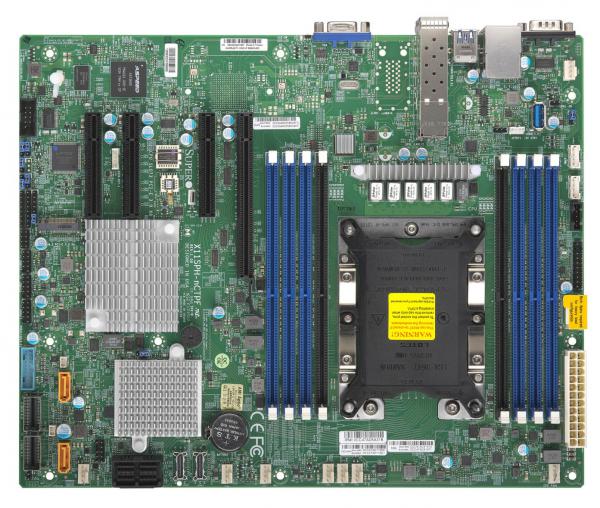

X11SPH-nCTPF
PCI-Express
1 PCI-E 3.0 x16 (x16 or x8 ), 1 PCI-E 3.0 x8 (x0 or x8 ), 1 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8 slot)
Physical Stats
ATX, 12" x 9.6" (30.48cm x 24.38cm)
Processor
Intel® Xeon® Scalable Processors. Single Socket P (LGA 3647) supported, CPU TDP support 205W
Memory Capacity
8x 288-pin DDR4 DIMM slots, Up to 1TB ECC 3DS LRDIMM, Up to 512GB ECC LRDIMM, Up to 256GB ECC RDIMM
Memory Type
2666/2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit 288-pin RDIMM/LRDIMM
DIMM Sizes
RDIMM: 4GB, 8GB, 16GB, 32GB LRDIMM: 32GB, 64GB 3DS LRDIMM: 64GB, 128GB
Memory Voltage
1.2V
Chipset
Intel® C622
M.2
M.2 Interface: PCI-E 3.0 x4 and SATA Form Factor: 2280 Key: M-Key Double Height Connector
SATA
Intel® C622 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10 Broadcom® 3008 SW controller for 8 SAS3 (12Gbs) ports; RAID 0,1,10
Network Controllers
Dual LAN with 10G SFP+ with Intel® X722 + Inphi CS4227
LAN
2 10G SFP+ LAN ports
Graphics
Aspeed AST2500 BMC
USB
8 USB 2.0 ports (2 rear + 6 headers), 5 USB 3.0 ports (2 rear + 2 headers + 1 Type A)
Video Output
1 VGA port
BIOS Type
AMI UEFI
BIOS Features
ACPI 6.0, RTC (Real Time Clock) Wakeup, SMBIOS 3.0 or later
