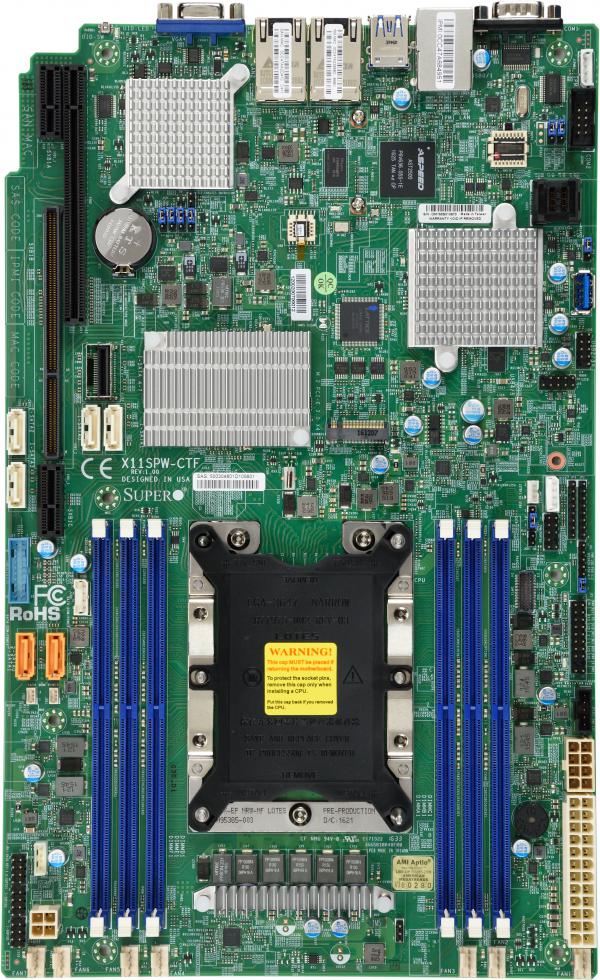

Product Overview
Key Features Intel® Xeon® Scalable Processors, Single Socket P (LGA 3647) supported, CPU TDP support 205W Intel® C622 chipset Up to 768GB ECC 3DS LRDIMM, up to DDR4-2666MHz; 6x DIMM slots Expansion slots: 1 PCI-E 3.0 x8 (in x16), 1 PCI-E 3.0 x32 Left Riser slot 4 SAS3 (12Gbps) via Broadcom 3008; RAID 0, 1, 10 2 10GbE LAN ports 10 SATA3 (6Gbps) via C622 I/O: 1 VGA, 2 COM, TPM header 2 SuperDOM with built-in power M.2 NGFF connector
Specifications
MBD
X11SPW-CTF
PCI-Express
1 PCI-E 3.0 x8 (in x16 slot), 1 PCI-E 3.0 x32 Left Riser Slot
Physical Stats
Proprietary WIO, 8" x 13" (20.32cm x 33.02cm)
Processor
Intel® Xeon® Scalable Processors. Single Socket P (LGA 3647) supported, CPU TDP support 205W
Cores / Cache
Up to 28 cores
Memory Capacity
6x 288-pin DDR4 DIMM slots, Up to 768GB ECC 3DS LRDIMM, Up to 384GB ECC LRDIMM, Up to 192GB ECC RDIMM
Memory Type
2666/2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit 288-pin RDIMM/LRDIMM
DIMM Sizes
RDIMM: 4GB, 8GB, 16GB, 32GB LRDIMM: 32GB, 64GB 3DS LRDIMM: 64GB, 128GB
Memory Voltage
1.2V
Chipset
Intel® C622
M.2
M.2 Interface: PCI-E 3.0 x4 and SATA Form Factor: 2280, 22110 Key: M-Key Double Height Connector
SATA
Intel® C622 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10 Broadcom® 3008 SW controller for 4 SAS3 (12Gbs) ports; RAID 0,1,10
Network Controllers
Dual LAN with 10GBase-T with Intel® X722 + X557
Graphics
Aspeed AST2500 BMC
USB
7 USB 2.0 ports (2 rear + 5 headers), 5 USB 3.0 ports (2 rear + 2 headers + 1 Type A)
Video Output
1 VGA port
BIOS Type
AMI UEFI
BIOS Features
ACPI 6.0, RTC (Real Time Clock) Wakeup, SMBIOS 3.0 or later
