Product Overview
Key Features Intel® Xeon® Scalable Processors., Dual Socket P (LGA 3647) supported, CPU TDP support Up to 140W, 2 UPI up to 10.4 GT/s Intel® C621 Up to 512GB Registered ECC RDIMM, DDR4-2666MHz; Up to 1TB Registered ECC LRDIMM, in 8 DIMM slots 2 PCI-E 3.0 x16, 3 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8 slot) M.2 Interface: SATA/PCI-E 3.0 x4 M.2 Form Factor: 2260, 2280 1 VGA port Intel® C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10 Dual LAN with Lewisburg Marvell 88E1512 PHY
Specifications
MBD

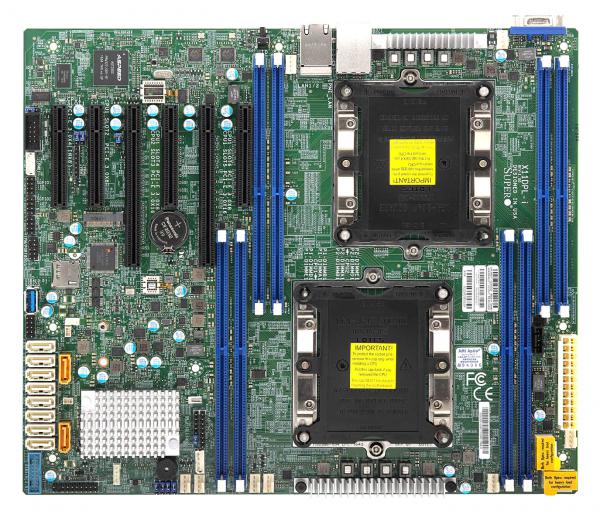

X11DPL-i
PCI-Express
2 PCI-E 3.0 x16, 3 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8 slot)
Physical Stats
ATX, 12.076" x 10.15" (30.67cm x 25.78cm)
Processor
Intel® Xeon® Scalable Processors. Dual Socket P (LGA 3647) supported, CPU TDP support Up to 140W, 2 UPI up to 10.4 GT/s
Memory Capacity
Up to 512GB Registered ECC RDIMM, DDR4-2666MHz; Up to 1TB Registered ECC LRDIMM, in 8 DIMM slots
Memory Type
2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM
DIMM Sizes
RDIMM: 64GB, LRDIMM: 128GB, 3DS LRDIMM: 128GB
Memory Voltage
1.2V
Chipset
Intel® C621
M.2
M.2 Interface: 1 SATA/PCI-E 3.0 x4 Form Factor: 2260, 2280 Key: M-Key
SATA
Intel® C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Network Controllers
Dual LAN with Lewisburg Marvell 88E1512 PHY
Graphics
Aspeed AST2500 BMC
LAN
2 RJ45 Gigabit Ethernet LAN ports
USB
4 USB 2.0 ports (2 rear + 2 headers) 3 USB 3.0 ports (2 headers + 1 Type A)
Video Output
1 VGA port
