Product Overview
Key Features Intel® Xeon® Scalable Processors., Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 2 UPI up to 10.4 GT/s Intel® C622 Up to 1.5TB 3DS ECC RDIMM, DDR4-2666MHz; Up to 1.5TB 3DS ECC LRDIMM, in 12 DIMM slots 1 PCI-E 3.0 x32 Left Riser Slot, 1 PCI-E 3.0 x16 Right Riser Slot, 1 PCI-E 3.0 x16 for Add-On-Module (AOM) M.2 Interface: PCI-E 3.0 x4 M.2 Form Factor: 2242, 2260, 2280, 22110 M.2 Key: M-Key U.2 Interface: PCI-E 3.0 x4, 4 PCI-E 3.0 NVMe x4 Internal Port(s) 1 VGA port Intel® C622 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10 Dual LAN with 10Gbase-T from C622
Specifications
MBD

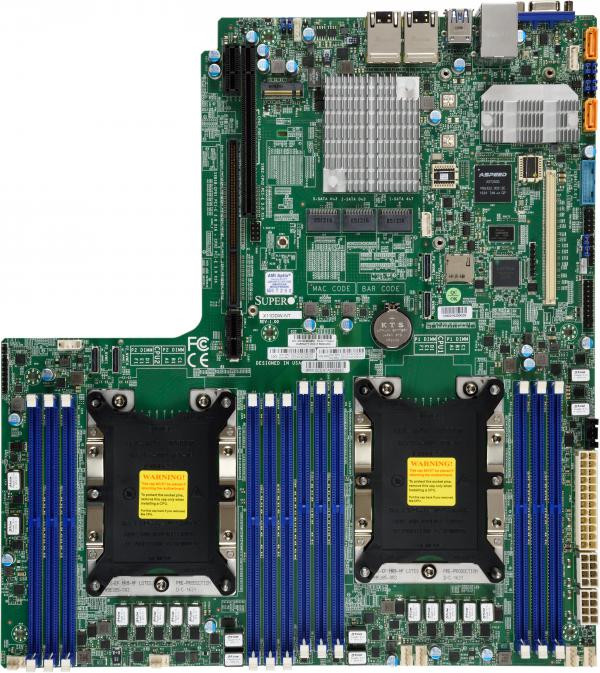

X11DDW-NT
PCI-Express
1 PCI-E 3.0 x32 Left Riser Slot, 1 PCI-E 3.0 x16 Right Riser Slot, 1 PCI-E 3.0 x16 for Add-On-Module (AOM) (Both CPUs need to be installed for full access to PCI-E slots and onboard controllers.)
Physical Stats
Proprietary, 12.3" x 13.4" (31.24cm x 34.04cm)
Processor
Intel® Xeon® Scalable Processors. Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 2 UPI up to 10.4 GT/s
Memory Capacity
Up to 1.5TB 3DS ECC RDIMM, DDR4-2666MHz; Up to 1.5TB 3DS ECC LRDIMM, in 12 DIMM slots
Memory Type
2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM
DIMM Sizes
RDIMM: 64GB, LRDIMM: 64GB, 3DS LRDIMM: 128GB
Memory Voltage
1.2V
Chipset
Intel® C622
M.2
M.2 Interface: PCI-E 3.0 x4 Form Factor: 2242, 2260, 2280, 22110 Key: M-Key
SATA
Intel® C622 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Network Controllers
Dual LAN with 10Gbase-T from C622
LAN
2 RJ45 10GBase-T ports
Graphics
Aspeed AST2500 BMC
USB
6 USB 3.0 ports (4 rear + 2 headers)
Video Output
1 VGA port
BIOS Type
UEFI 256Mb
