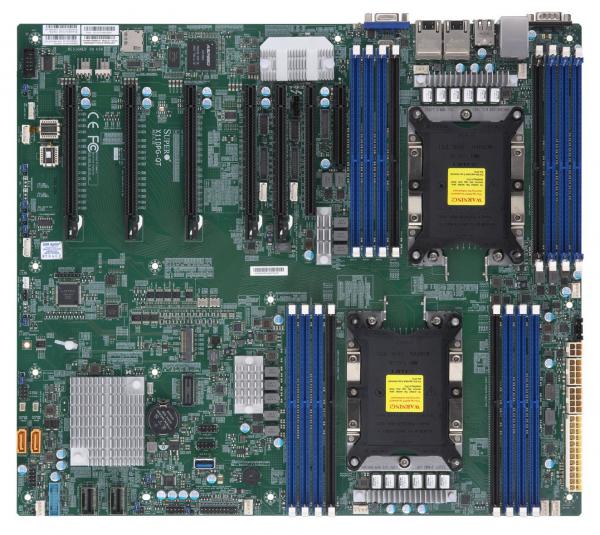

Product Overview
Key Features Intel® Xeon® Scalable Processors., Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 3 UPI up to 10.4 GT/s Intel® C621 Up to 2TB 3DS ECC RDIMM, DDR4-2666MHz; Up to 2TB 3DS ECC LRDIMM, in 16 DIMM slots 6 PCI-E 3.0 x16, 1 PCI-E 3.0 x4 (in x8 slot) M.2 Interface: PCI-E 3.0 x4 M.2 Form Factor: 2280, 22110 Intel® C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10 Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SPM, SSM, SUM, SuperDoctor® 5, Watchdog Dual LAN with Intel® X550 10GBase-T Ethernet Controller Integrated IPMI 2.0 and KVM with Dedicated LAN 5 USB 3.0 ports, 4 USB 2.0 ports HD Audio with optical S/PDIF
Specifications
MBD
X11DPG-QT
PCI-Express
6 PCI-E 3.0 x16, 1 PCI-E 3.0 x4 (in x8 slot)
Physical Stats
Proprietary, 15.12" x 13.2" (38.4cm x 33.53cm)
Processor
Intel® Xeon® Scalable Processors. Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 3 UPI up to 10.4 GT/s
Memory Capacity
Up to 2TB 3DS ECC RDIMM, DDR4-2666MHz; Up to 2TB 3DS ECC LRDIMM, in 16 DIMM slots
Memory Type
2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM
DIMM Sizes
RDIMM: 64GB, LRDIMM: 128GB, 3DS LRDIMM: 128GB
Memory Voltage
1.2V
Chipset
Intel® C621
M.2
M.2 Interface: PCI-E 3.0 x4 Form Factor: 2280, 22110 Key: M-Key
SATA
Intel® C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Network Controllers
Dual LAN with Intel® X550 10GBase-T Ethernet Controller
Graphics
Aspeed AST2500 BMC
USB
4 USB 2.0 ports (2 rear + 1 header), 5 USB 3.0 ports (2 rear + 1 header + 1 Type A)
Video Output
1 VGA D-Sub Connector port
