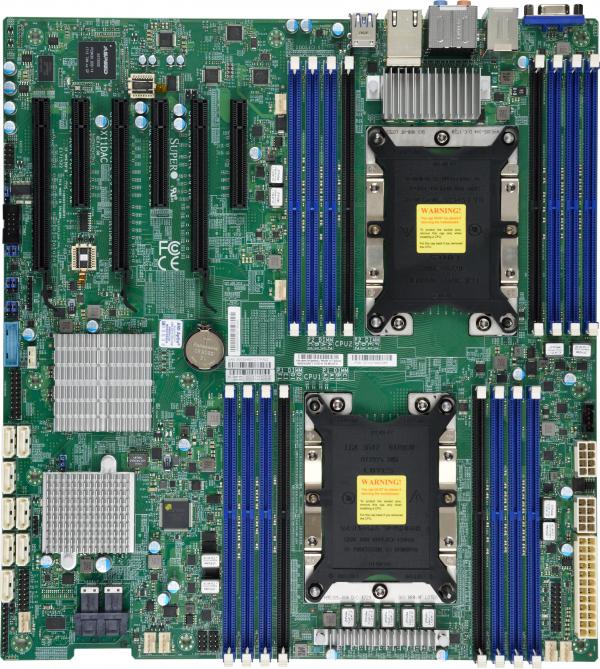

Product Overview
Key Features Intel® Xeon® Scalable Processors., Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 2 UPI up to 10.4 GT/s Intel® C621 Up to 2TB 3DS ECC RDIMM, DDR4-2666MHz, in 16 DIMM slots 3 PCI-E 3.0 x16 (in x16 slot), 3 PCI-E 3.0 x8 1 VGA D-Sub Connector port Intel® C621 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10 Broadcom® 3008 SW controller for 8 SAS3 (12Gbs) ports; RAID 0,1,5,10 Dual LAN with GbE from C621
Specifications
MBD
X11DAC
PCI-Express
3 PCI-E 3.0 x16 (in x16 slot),3 PCI-E 3.0 x8
Physical Stats
E-ATX, 12" x 13" (30.48cm x 33.02cm)
Processor
Intel® Xeon® Scalable Processors.Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 2 UPI up to 10.4 GT/s
Memory Capacity
RDIMM: 64GB, LRDIMM: 64GB, 3DS LRDIMM: 128GB
Memory Type
2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM
Memory Voltage
1.2V
Chipset
Intel® C621
SATA
Intel® C621 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
SAS
Broadcom 3008 SW RAID 8 ports SAS3 0,1,10
IPMI
ASPEED AST2500
Network Controllers
Dual LAN with GbE from C621
Graphics
Aspeed AST2500 BMC
USB
6 USB 3.0 ports (4 rear + 2 headers)
Video Output
1 VGA D-Sub Connector port
BIOS Type
AMI UEFI
