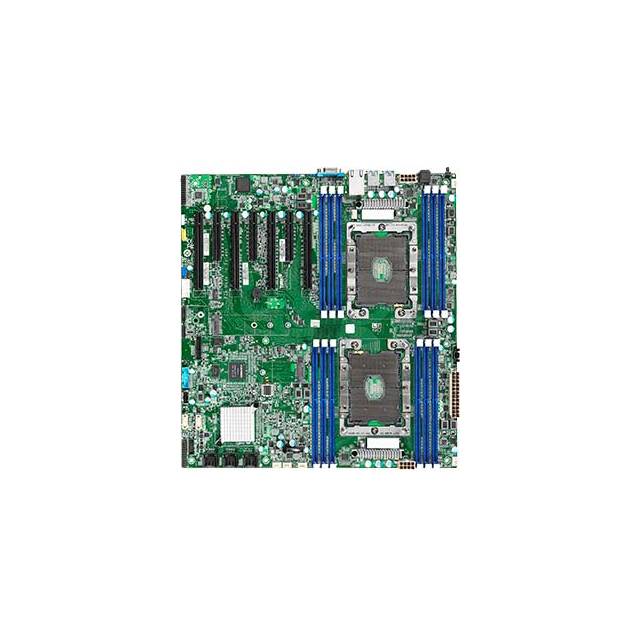

Product Overview

Mfr Part Number: S7100GM2NR CPU: Dual LGA3647 Support Intel Xeon Scalable Processor Up to 10.4/9.6 GT/s Supports up to 205W TDP Chipset: Intel C621 Memory: 12x DDR4-2666 DIMM Slots, 6 Channels per CPU, Supports up to 384GB Registered Memory or 768GB Load Reduced Memory or 1536GB RDIMM 3DS/LRDIMM 3DS Slots: 4x PCI-Express 3.0 x 16 Slots, 3x PCI-Express 3.0 x 8 slots Storage: SATA: 14x SATA3 Ports (12 via Mini-SAS), Support RAID 0, 1, 5, 10 M.2: 2x M.2 Ports, one supports type 2242 (by PCI-E interface), one supports type 2280/2260/2242 (by PCI-E interface) Video: Aspeed AST2500 BMC Graphics LAN: 2x Intel I350-AM2 Gigabit Ethernet Controllers (1 port shared with IPMI) Ports: 6x USB 3.0 ports (2 via cable, 4 rear), 3x USB 2.0 ports (2 via cable, 1 Type-A), 1x VGA Port, 2x RJ45 LAN Ports Power Connector: 1x 24pin Power Connector, 2x 8pin Power Connectors Form Factor: SSI EEB, 12.0 x 13.0 inch / 305.0 x 330.0 mm RoHS Compliant
