Product Overview

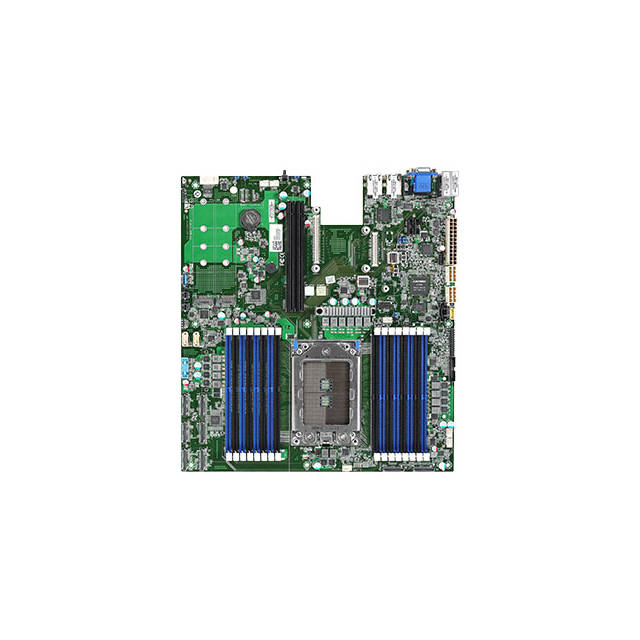

Mfr Part Number: S8026GM2NR-LE CPU: AMD Socket SP3 Supports AMD EPYC 7000 Series Processor Supports up to 180W CPU Chipset: N/A Memory: 16x DDR4-2667 DIMM Slots, 8 Channels per CPU, ECC, Support Up to 1,024GB RDIMM/LRDIMM Slots: 1x PCI-Express 3.0 x24 Slot, 1x PCI-Express 3.0 x24 Slot (w/x16 link; can be x24 link if OCP mezz. conn.B is not used. Please contact with Tyan technical support for details.),1x PCI-E Gen3 x16 OCP 2.0 Slot (conn.A+conn.B) Storage: SATA: 16x SATA Ports M.2: 2x M.2 Port, supports type 2280/2260/2242/ 22110 by PCI-E & SATA interface Video: Aspeed AST2500 BMC Graphics LAN: 2x Broadcom BCM5720 Gigabit Ethernet Controllers, 1x Realtek RTL 8211E PHY Dedicated IPMI LAN Ports: 3x USB 3.0 Ports (2 rear, 1 type A), 2x USB 2.0 Ports (2 via cable), 2x Serial Ports(1 rear, 1 via header), 1x VGA Port, 2x RJ45 LAN Ports, 1x Dedicated for IPMI Power Connector: 1x 24-pin Power Connector, 2x 8-pin Power Connectors Form Factor: EATX, 12.0 x 13.0 inch / 305.0 x 330.0 mm RoHS Compliant
