Product Overview

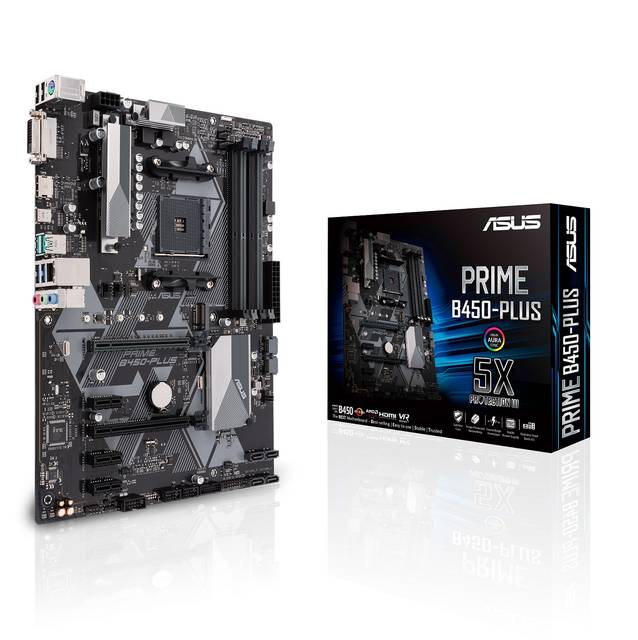

Mfr Part Number: PRIME B450-PLUS CPU: Socket AM4 Supports AMD Ryzen 2nd Generation/Ryzen with Radeon Vega Graphics/ Ryzen 1st Generation Processors Supports CPU up to 8 Cores Chipset: AMD B450 Memory: 4x DDR4-3200(OC)/ 3000(OC)/ 2800(OC)/ 2666/ 2400/ 2133 MHz DIMM Slots, Dual channel, ECC, Un-buffered, Max Capacity of 64GB (AMD Ryzen 2nd Generation/ Ryzen 1st Generation Processors) Slots: 2x PCI Express 3.0 x 16 slots (one runs at x8), 1x PCI Express 2.0 x 16 slot (max at x4 mode), 3x PCI Express 2.0 x 1 slots Multi-Graphics: Supports AMD CrossFireX Technology Storage: SATA: 6x SATA3 Ports, Support RAID 0, 1, 10 M.2: 1x M.2 Ports (w/ M key), supports type 2242/ 2260/ 2280/ 22110 (PCIE 3.0 x4 and SATA modes) storage devices Audio: Realtek ALC 887-VD2 8-Channel High Definition Audio CODEC LAN: Realtek 8111H Gigabit Ethernet Controller Ports: 2x USB 3.1 Gen 2 Ports (2 rear), 5x USB 3.1 Gen 1 Ports (2 Type-A rear, 1 Type-C rear, 2 at mid-board), 6x USB 2.0 Ports (2 rear, 4 at mid-board), 1x PS/2 Keyboard/Mouse Combo Port, 1x HDMI Port, 1x DVI Port, 1x Optical S/PDIF out, 1x RJ45 LAN Port, Audio I/O Jacks Power Connector: 1x 24pin EATX Power Connector, 1x 8pin EATX 12V Power Connector Form Factor: ATX, 12.0 x 9.2 inch / 30.5 x 23.4 cm
