Product Overview

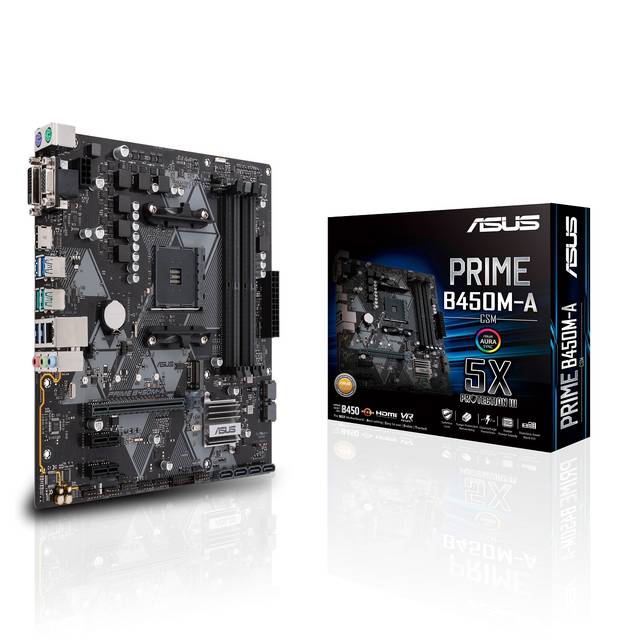

Mfr Part Number: PRIME B450M-A/CSM CPU: Socket AM4 Supports AMD Ryzen 2nd Generation/Ryzen with Radeon Vega Graphics/Ryzen 1st Generation Processors Supports CPU up to 8 cores Chipset: AMD B450 Memory: 4x DDR4-3200(OC)/ 3000(OC)/ 2800(OC)/ 2666/ 2400/ 2133 MHz DIMM Slots, Dual Channel, ECC, Unbuffered, Max Capacity of 64GB Slots: 2x PCI Express 3.0 x16 Slot(one runs at x8), 2x PCI Express 2.0 x1 Slot Storage: SATA: 6x SATA3 Ports, Support RAID 0, 1, 10 M.2: 1x M.2 Port (w/ M Key), supports type 2242/ 2260/ 2280/ 22110 & PCI-Express 3.0 x4 & SATA modes Audio: Realtek ALC887-VD2 8-Channel High Definition Audio CODEC LAN: Realtek 8111H Gigabit Ethernet Controller Ports: 2x USB 3.1 Gen 2 Ports (rear), 6x USB 3.1 Gen 1 Ports (4 rear, 2 at mid-board), 4x USB 2.0/1.1 Ports (at mid-board), 1x PS/2 Keyboard Port, 1x PS/2 Mouse Port, 1x VGA Port, 1x DVI-D Port, 1x HDMI Port, 1x RJ45 LAN Port, Audio I/O Jacks Power Connector: 1x 24pin EATX Power Connector, 1x 8pin ATX 12V Power Connector Form Factor: MicroATX, 9.6 x 9.5 inch / 24.4 x 24.0 cm
