Product Overview

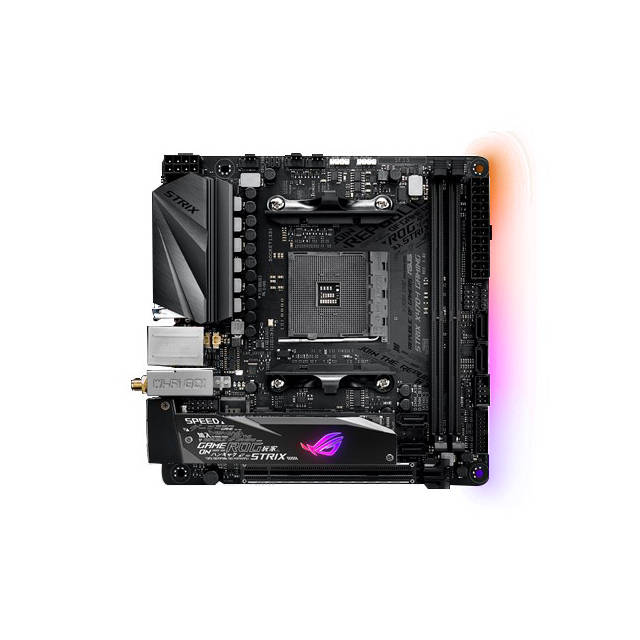

Mfr Part Number: ROG STRIX X470-I GAMING CPU: Socket AM4 Supports AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Ryzen 1st Generation/7th Generation A-Series/Athlon X4 Processors Supports CPU up to 8 Cores Chipset: AMD X470 Memory: 2x DDR4-3466(OC)/ 3200(OC)/ 3000(OC)/ 2933(OC)/ 2800(OC)/ 2666/ 2400/ 2133 MHz DIMM Slots, Dual channel, non-ECC, Un-buffered, Max Capacity of 32GB (AMD Ryzen 2nd Generation Processor); 2x DDR4-3200(OC)/ 3000(OC)/ 2933(OC)/ 2800(OC)/ 2666/ 2400/ 2133 MHz DIMM Slots, Dual Channel, non-ECC, Un-buffered, Max Capacity of 32GB (AMD Ryzen with Radeon Vega Graphics/Ryzen 1st Generation Processors), 2x DDR4-2400/ 2133 MHz DIMM Slots, Dual Channel, non-ECC, Un-buffered, Max Capacity of 32GB (AMD 7th Generation A-Series/Athlon X4 Processors) Slots: 2x PCI-Express 3.0/2.0 x16 Slots (one runs at x8) Storage: SATA: 4x SATA3 Ports M.2: 4x M.2 Ports (w/ M key), two supports type 2242/ 2260/ 2280 & SATA & PCI-Express 3.0 x4 mode, two supports type 2242/ 2260/ 2280 & PCI-Express 3.0 x4 mode Audio: SupremeFX S1220A 8-Channel High Definition Audio CODEC LAN: Intel I211-AT Gigabit Ethernet Controller; Wi-Fi 802.11a/b/g/n/ac Wireless LAN (2.4/5GHz); Bluetooth v4.2, 4.0LE, 3.0+HS Ports: 2x USB 3.1 Gen 2 Ports (Type-A rear), 6x USB 3.1 Gen 1 Ports (4 rear, 2 at mid-board), 2x USB 2.0 Ports (at mid-board), 1x HDMI Port, 1x RJ45 LAN Port, 1x ASUS Wi-Fi module, Audio I/O Jacks Power Connector: 1x 24pin EATX Power Connector, 1x 8pin EATX 12V Power Connector Form Factor: Mini-ITX, 6.7 x 6.7 inch / 17.0 x 17.0 cm
