Product Overview

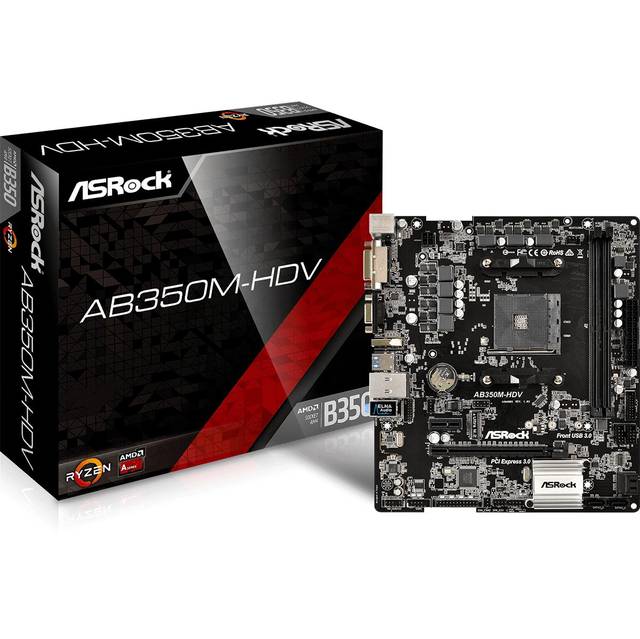

Mfr Part Number: AB350M-HDV CPU: Socket AM4 Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Summit Ridge) Digi Power design 7 Power Phase design Supports CPU up to 65W Chipset: AMD Promontory B350 Memory: 2x DDR4-2400/ 2133 DIMM Slots, Dual Channel, ECC, Non-ECC, Unbuffered, Max Capacity of 32GB Slots: 1x PCI-Express 3.0 x16 Slot, 1x PCI-Express 2.0 x1 Slot Storage: SATA: 4x SATA3 Ports, Support RAID 0, 1, 10 M.2: 1x Ultra M.2 Port (M Key) supports type 2242/ 2260/ 2280 M.2 SATA3 & M.2 PCI-Express 3.0 x4 (32 Gb/s) (with Ryzen Series CPU) or PCI-Express 3.0 x2 (16 Gb/s) (with A-Series APU) Audio: Realtek ALC887 7.1-Channel High Definition Audio CODEC Video: Integrated AMD Radeon R7/R5 Series Graphics w/ 2GB Max Shared Memory LAN: Realtek RTL8111GR PCI-Express x1 Gigabit Ethernet Controller Ports: 6x USB 3.0 Ports (4 rear, 2 via header), 6x USB 2.0 Ports (2 rear, 4 via headers), 1x PS/2 Mouse/Keyboard Port, 1x VGA Port, 1x DVI-D Port, 1x HDMI Port, 1x RJ45 LAN Port, Audio I/O Jacks Power Connector: 1x 24-pin ATX Power Connector, 1x 4-pin 12V Power Connector Form Factor: MicroATX, 9.1 x 8.1 inch / 23.1 x 20.6 cm
