Product Overview

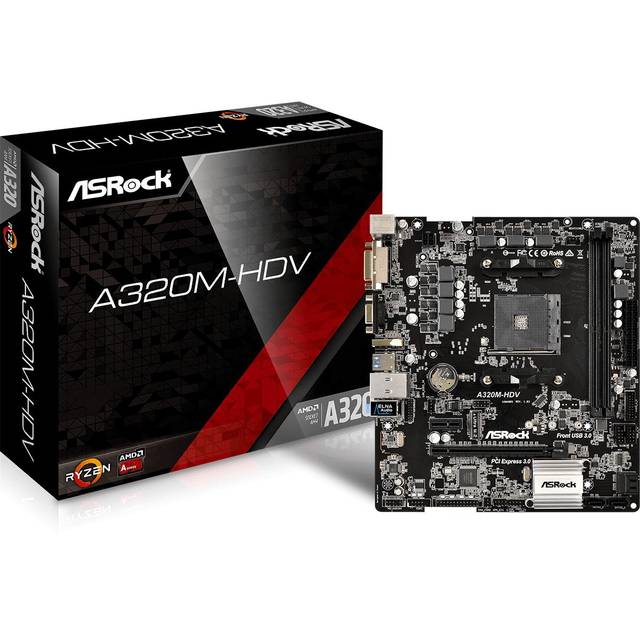

Mfr Part Number: A320M-HDV CPU: Socket AM4 Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Summit Ridge) Digi Power design 7 Power Phase design Supports CPU up to 65W Chipset: AMD Promontory A320 Memory: 2x DDR4 DIMM Slots, AMD Ryzen series CPUs support DDR4 3200+(OC)/ 2933(OC)/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory, AMD 7th Gen A-Series APUs support DDR4 2400/ 2133 ECC & non-ECC, un-buffered memory, Max Capacity of 32GB Slots: 2x PCI-Express 3.0 x16 Slots (one runs at x8), 1x PCI-Express 2.0 x1 Slot Storage: SATA: 4x SATA3 Ports, Support RAID 0, 1, 10 M.2: 1x Ultra M.2 Port (M Key) supports type 2242/ 2260/ 2280 M.2 SATA3 & M.2 PCI-Express 3.0 x4 (32 Gb/s) (with Ryzen Series CPU) or PCI-Express 3.0 x2 (16 Gb/s) (with A-Series APU) Audio: Realtek ALC887 7.1-Channel High Definition Audio CODEC Video: Integrated AMD Radeon R-Series Graphics w/ 2GB Max Shared Memory LAN: Realtek RTL8111GR PCI-Express x1 Gigabit Ethernet Controller Ports: 6x USB 3.0 Ports (4 rear, 2 via header), 6x USB 2.0 Ports (2 rear, 4 via headers), 1x PS/2 Mouse/Keyboard Port, 1x VGA Port, 1x DVI-D Port, 1x HDMI Port, 1x RJ45 LAN Port, Audio I/O Jacks Power Connector: 1x 24-pin ATX Power Connector, 1x 4-pin 12V Power Connector Form Factor: MicroATX, 9.1 x 8.1 inch / 23.1 x 20.6 cm
