Product Overview

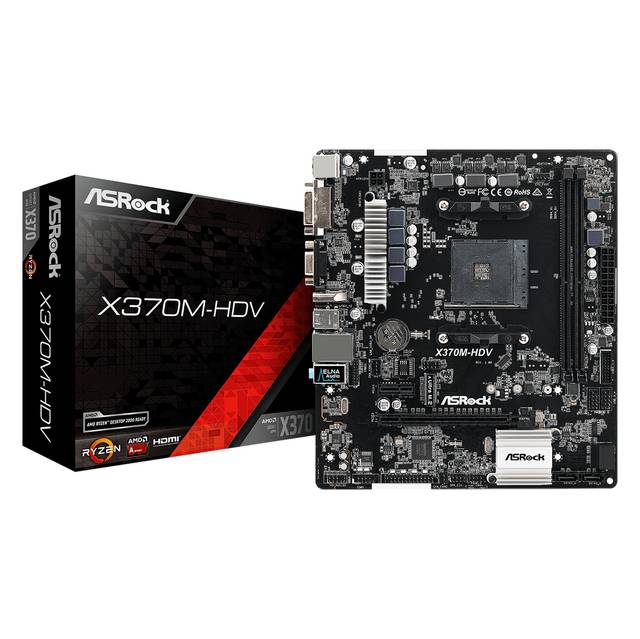

Mfr Part Number: X370M-HDV CPU: Socket AM4 Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Summit Ridge, Raven Ridge and Pinnacle Ridge) Digi Power design 7 Power Phase design Supports CPU up to 105W Chipset: AMD Promontory X370 Memory: 2x DDR4-3200+(OC)/ 2933/ 2667/ 2400/ 2133 DIMM Slots, Dual Channel, ECC & non-ECC, Unbuffered, Max Capacity of 32GB (AMD Ryzen series CPUs (Pinnacle Ridge)) 2x DDR4-3200+(OC)/ 2933(OC)/ 2667/ 2400/ 2133 DIMM Slots, Dual Channel, ECC & non-ECC, Unbuffered, Max Capacity of 32GB (AMD Ryzen series CPUs (Summit Ridge)) 2x DDR4-3200+(OC)/ 2933(OC)/ 2667/ 2400/ 2133 DIMM Slots, Dual Channel, non-ECC, Unbuffered, Max Capacity of 32GB (AMD Ryzen series CPUs (Raven Ridge)) 2x DDR4-2400/ 2133 DIMM Slots, Dual Channel, ECC & non-ECC, Unbuffered, Max Capacity of 32GB (AMD 7th Gen A-Series APUs) Slots: 3x PCI-Express 3.0 x16 Slots (two runs at x8), 1x PCI-Express 2.0 x1 Slot Storage: SATA: 4x SATA3 Ports, Support RAID 0, 1, 10, NCQ, AHCI and Hot Plug M.2: 1x Ultra M.2 Port (w/ M Key), Supports type 2242/ 2260/ 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) Audio: Realtek ALC887 7.1-Channel High Definition Audio CODEC LAN: Realtek RTL8111H PCIE x1 Gigabit Ethernet Controller Ports: 6x USB 3.1 Gen 1 Ports (4 rear, 2 via header), 6x USB 2.0 Ports (2 rear, 4 via headers), 1x PS/2 Mouse/Keyboard Port, 1x VGA Port, 1x DVI-D Port, 1x HDMI Port, 1x RJ45 LAN Port with LED, Audio I/O Jacks Power Connector: 1x 24-pin ATX Power Connector, 1x 4-pin 12V Power Connector Form Factor: MicroATX, 9.1 x 8.1 inch / 23.1 x 20.6 cm
