Product Overview

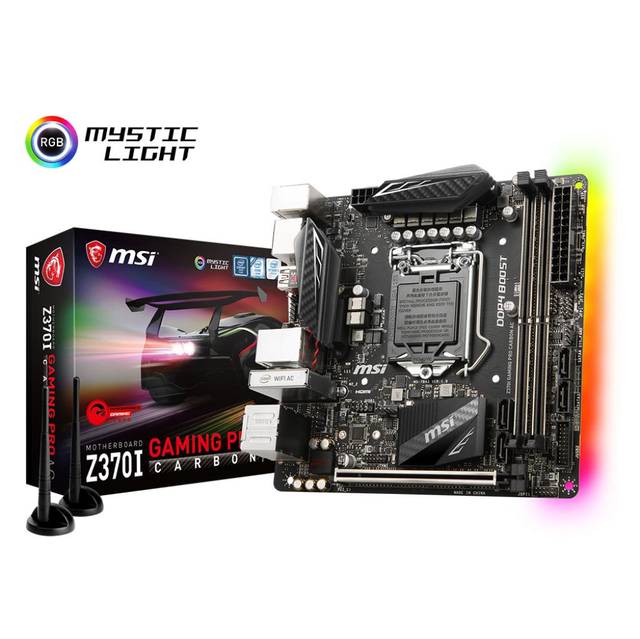

Mfr Part Number: Z370I GAMING PRO CARBON AC CPU: LGA1151 Supports 8th Generation Intel Core/ Pentium/ Celeron Processors Chipset: Intel Z370 Memory: 2x DDR4-4500(OC)/ 4400(OC)/ 4333(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2667/ 2400/ 2133 MHz Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 32GB Slots: 1x PCI-Express 3.0 x16 Slot Storage: SATA: 4x SATA3 Ports, Support RAID 0, 1, 5, 10 M.2: 1x M.2 Port, Key M, Support type 2242/ 2260/ 2280 & SATA3 & PCI-Express 3.0 x4 Mode Audio: Realtek ALC1220 7.1-Channel High Definition Audio CODEC LAN: Intel I219-V Gigabit Ethernet Controller, Wi-Fi Dual Band 802.11a/b/g/n/ac Wireless-AC 8265 LAN (2.4/5GHz), Dual Mode Bluetooth 2.1, 2.1+EDR, 3.0, 4.0, BLE, 4.2 Ports: 2x USB 3.1 Gen2 Ports (1 Type-A rear, 1 Type-C rear), 4x USB 3.1 Gen1 Ports ( 2 Type-A rear , 2 via header), 4x USB 2.0 Ports (2 rear, 2 via header), 1x PS/2 Keyboard/Mouse Combo Port, 1x HDMI Port, 1x DisplayPort, 2x Wi-fi Antenna Connectors , 1x Optical S/PDIF Out, 1x RJ45 LAN Port, Audio I/O Jacks Power Connector: 1x 24-pin ATX Main Power Connector, 1x 8-pin ATX 12V Power Connector Form Factor: Mini-ITX, 6.7 x 6.7 inch / 17.0 x 17.0 cm
