Product Overview

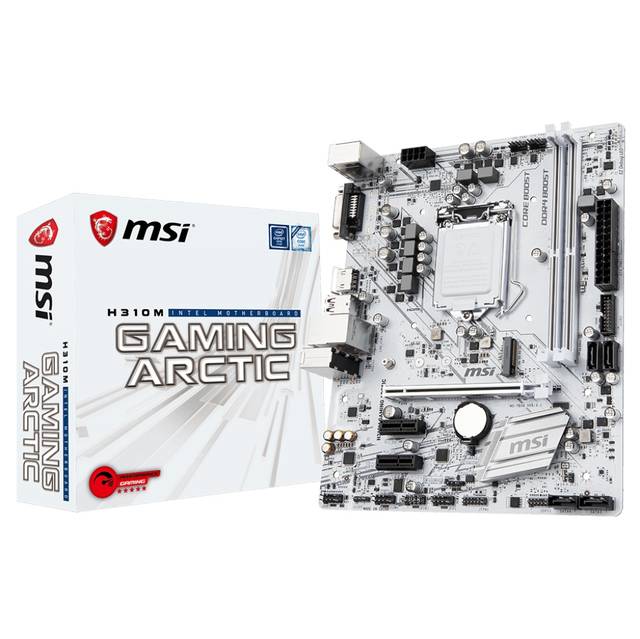

Mfr Part Number: H310MGARC CPU: LGA1151 Supports 8th Generation Intel Core, Pentium Gold and Celeron Processors Chipset: Intel H310 Memory: 2x DDR4-2666/ 2400/ 2133 MHz DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 32GB Slots: 1x PCI-Express 3.0 x16 Slot, 2x PCI-Express 3.0 x1 Slots Storage: SATA: 4x SATA3 Ports M.2: 1x M.2 Port (w/ M Key), Supports up to PCIe 2.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices Audio: Dual Realtek ALC887 7.1-Channel High Definition Audio CODEC LAN: Intel I219-V Gigabit Ethernet Controller Ports: 4x USB 3.1 Gen 1 Ports (2 Type-A rear, 2 via header), 6x USB 2.0 Ports (4 Type-A rear, 2 via header), 1x PS/2 Combo Port, 1x DVI-D Port, 1x HDMI Port, 1x RJ45 LAN Port, Audio I/O Jacks Power Connector: 1x 24pin ATX main Power Connector, 1x 8pin ATX 12V Power connector Form Factor: MicroATX, 9.1 x 7.3 inch / 23.0 x 18.5 cm
