Product Overview

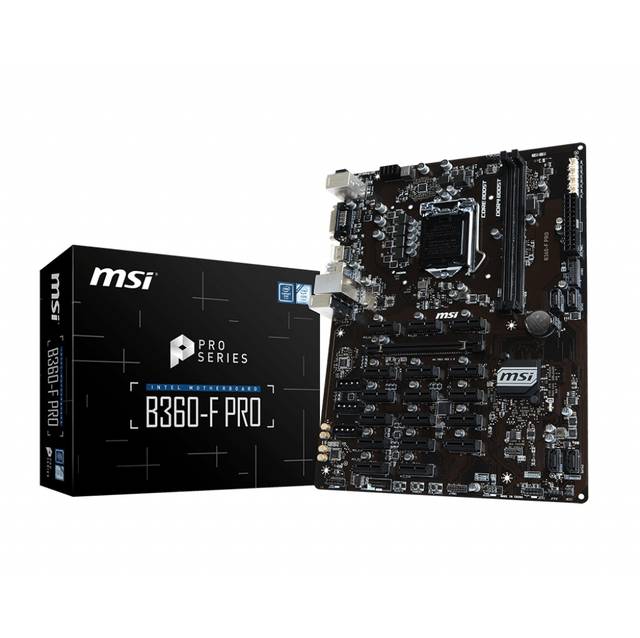

Mfr Part Number: B360-F PRO CPU: Supports 9th / 8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket Chipset: Intel B360 Chipset Memory: 2x DDR4 memory slots, support up to 32GB Supports DDR4 2666/ 2400/ 2133 MHz Supports non-ECC, un-buffered memory Supports Dual-Channel mode Supports Intel Extreme Memory Profile (XMP) Expansion Slots: 1x PCIe 3.0 x16 slot 17x PCIe 2.0 x1 slots Onboard Graphics: 1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz 1x HDMI port 1.4, supports a maximum resolution of 4096x2160@30Hz Storage: Intel B360 Chipset - 4x SATA 6Gb/s ports USB: Intel B360 Chipset - 4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) - 6 x USB 2.0 (High-speed USB) ports (4 Type-A ports on the back panel, 2 ports available through the internal USB connector) Audio: Realtek ALC887 Codec 7.1-Channel High Definition Audio LAN: 1x Intel I219-V Gigabit LAN controller
