Product Overview

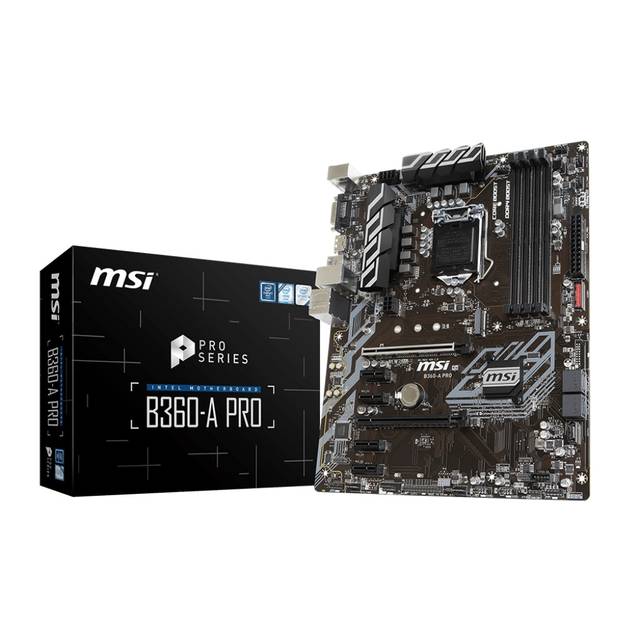

Mfr Part Number: B360APRO CPU: LGA1151 Supports 8th Generation Intel Core, Pentium Gold and Celeron Processors Chipset: Intel B360 Memory: 4x DDR4-2666/ 2400/ 2133 MHz DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 64GB Slots: 2x PCI-Express 3.0 x16 Slots (supports x16/ x4 mode), 4x PCI-Express 3.0 x1 Slots Multi-Graphics: Supports AMD 2-Way CrossFireX Technology Storage: SATA: 5x SATA3 Ports M.2: 1x M.2 Port (Key M), supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices, Intel Optane Memory Ready Audio: Realtek ALC892 7.1-Channel High Definition Audio CODEC LAN: Intel I219-V Gigabit Ethernet Controller Ports: 2x USB 3.1 Gen 2 Ports (1 Type-A rear, 1 Type-C rear), 4x USB 3.1 Gen 1 Ports (2 rear, 2 via header), 6x USB 2.0 Ports (2 Type-A rear, 4 via headers), 1x PS/2 Mouse/Keyboard Port, 1x DVI-D Port, 1x DisplayPort Port, 1x RJ45 LAN Port, Audio I/O Jacks Power Connector: 1x 24pin ATX Main Power Connector, 1x 8pin ATX 12V Power Connector Form Factor: ATX, 12.0 x 9.6 inch / 30.4 x 24.3 cm
