Product Overview

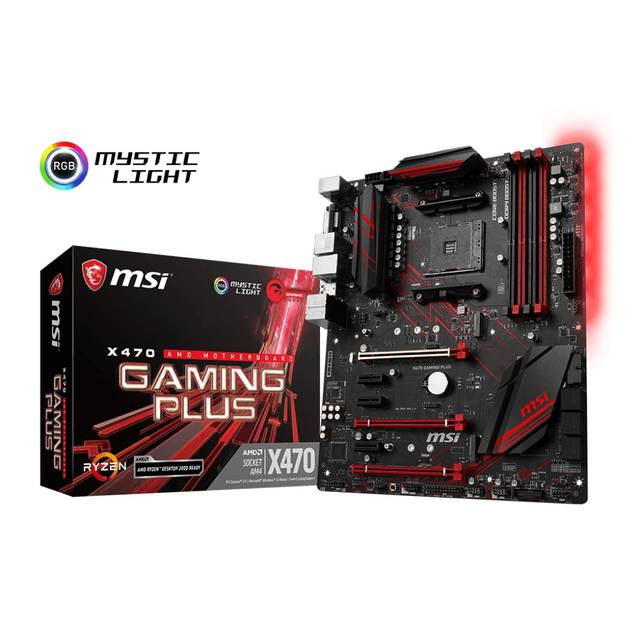

Mfr Part Number: X470GPLUS CPU: Socket AM4 Supports AMD RYZEN Desktop processors and A-series/ Athlon Processors Chipset: AMD X470 Memory: 4x DDR4-2667/ 2400/ 2133/ 1866 MHz Slots, Dual Channel, ECC, Non-ECC, Max Capacity of 64GB (by JEDEC); 4x DDR4-3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz Slots, Dual Channel, ECC, Non-ECC, Max Capacity of 64GB (by A-XMP OC MODE) Slots: 2x PCI-Express 3.0 x16 Slots, 1x PCI-Express 2.0 x16 Slot (runs at x4), 3x PCI-Express 2.0 x1 Slots Multi-Graphics: Supports AMD 3-Way CrossFireX Technology (Ryzen Desktop Processors); Supports AMD 2-Way CrossFireX Technology (Ryzen Desktop Processors with Radeon Vega Graphics and A-Series/Athlon Processors) Storage: SATA: 6x SATA3 Ports, Support RAID 0, 1, 10 M.2: 2x M.2 Ports (Key M), One Supports PCIe 3.0 x4 (Ryzen Desktop Processors ) or PCIe 3.0 x2 (A-series/ Athlon Processors) 2242/ 2260 / 2280/ 22110 storage devices, One Supports PCIe 2.0 x4 and SATA 6Gb/s 2242/ 2260 / 2280 storage devices Audio: Realtek ALC892 7.1-Channel High Definition Audio CODEC LAN: Realtek 8111H Gigabit Ethernet Controller Ports: 2x USB 3.1 Gen 2 Ports (Type-A rear), 8x USB 3.1 Gen 1 Ports (4 Type-A rear, 4 via headers), 6x USB 2.0 Ports (2 Type-A rear, 4 via headers), 1x PS/2 Combo Port, 1x DVI-D Port, 1x HDMI Port, 1x Optical S/PDIF OUT, 1x RJ45 LAN Port, Audio I/O Jacks Power Connector: 1x 24-pin ATX main Power Connector, 1x 8-pin ATX 12V Power Connector, 1x 4-pin ATX 12V Power Connector Form Factor: ATX, 12.0 x 9.6 inch / 30.5 x 24.4 cm
