Product Overview

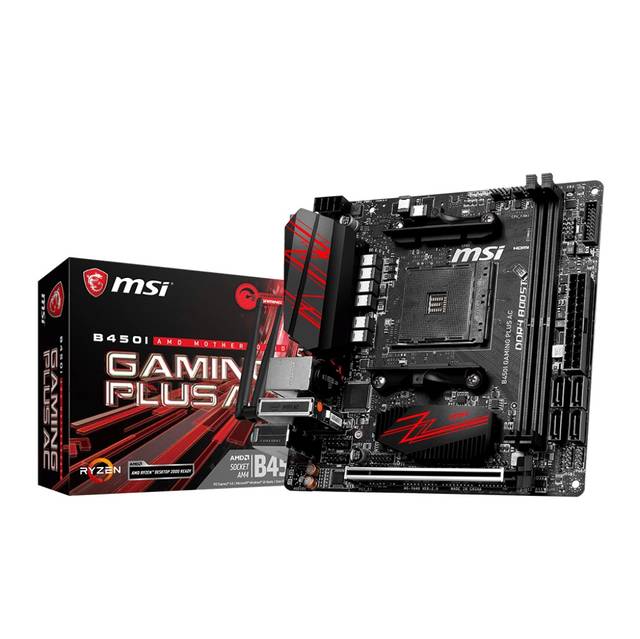

Mfr Part Number: B450I GAMING PLUS AC CPU: Socket AM4 Support AMD Ryzen 1st and 2nd Generation/ Ryzen with Radeon Vega Graphics Processors Chipset: AMD B450 Memory: 2x DDR4-2667/ 2400/ 2133/ 1866 MHz Slots, Dual Channel, ECC, Non-ECC, Max Capacity of 32GB (by JEDEC); 2x DDR4-3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz Slots, Dual Channel, ECC, Non-ECC, Max Capacity of 32GB (by A-XMP OC MODE) Slots: 1x PCI-Express 3.0 x16 Slot Storage: SATA: 4x SATA3 Ports, Support RAID 0, 1, 10 M.2: 1x M.2 Ports (Key M), Supports PCIe 3.0 x4 and SATA 6Gb/s 2280 storage devices Audio: Realtek ALC887 7.1-Channel High Definition Audio CODEC LAN: Realtek 8111H Gigabit LAN controller, Intel Dual Band Wireless-AC 3168 Wireless LAN (2.4/5GHz); Bluetooth 4.2, 4.1, BLE, 4.0, 3.0, 2.1, 2.1+EDR Ports: 6x USB 3.1 Gen 1 Ports (4 Type-A rear, 2 via header), 4x USB 2.0 Ports (2 Type-A rear, 2 via header), 1x PS/2 Combo Port, 1x HDMI Port, 1x DisplayPort, 1x RJ45 LAN Port, Audio I/O Jacks Power Connector: 1x 24-pin ATX Main Power Connector, 1x 8-pin ATX 12V Power Connector Form Factor: Mini-ITX, 6.7 x 6.7 inch / 17.0 x 17.0 cm
