Product Overview

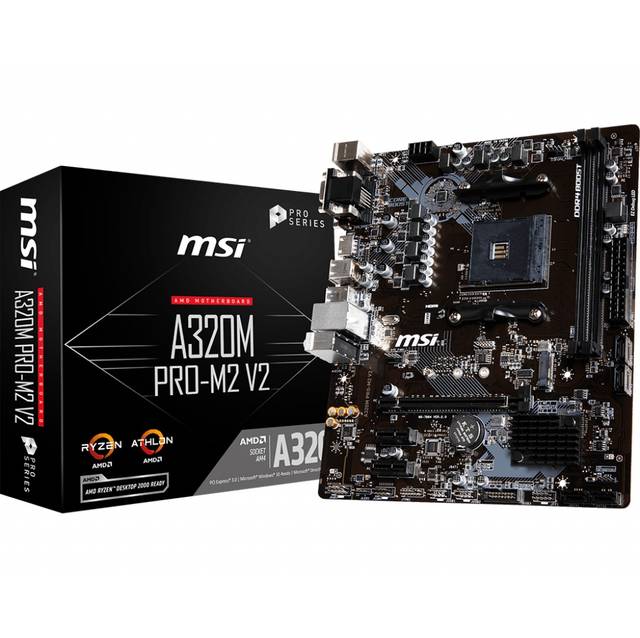

Mfr Part Number: A320MPM2V2 CPU: Socket AM4 Supports AMD Ryzen 1st and 2nd Generation/ Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics and A-series / Athlon X4 Processors Chipset: AMD A320 Memory: 2x DDR4-3200(OC)+/ 2933(OC)/ 2667(OC)/ 2400/ 2133/ 1866 MHz Slots, Dual Channel, Non-ECC, ECC, Max Capacity of 32GB Slots: 1x PCI-Express 3.0 x16 Slot, 2x PCI-Express 2.0 x1 Slots Storage: SATA: 4x SATA3 Ports, Support RAID 0, 1, 10 M.2: 1x M.2 Port, Supports PCI-Express 3.0 x4 (RYZEN series processor) or PCI-Express 3.0 x2 (Athlon with Radeon Vega Graphics and A-series /Athlon x4 Processors) and SATA 6Gb/s, Supports 2242/ 2260 /2280 storage devices Audio: Realtek ALC887 7.1-Channel High Definition Audio CODEC LAN: Realtek 8111H Gigabit LAN Controller Ports: 6x USB 3.1 Gen 1 Ports (4 Type-A rear, 2 via header), 6x USB 2.0 Ports (2 rear, 4 via headers), 1x Keyboard Port, 1x Mouse Port, 1x VGA Port, 1x HDMI Port, 1x DVI-D Port, 1x RJ45 LAN Port, Audio I/O Jacks Power Connector: 1x 24-pin ATX Main Power Connector, 1x 8-pin ATX 12V Power Connector Form Factor: MicroATX, 9.6 x 8.1 inch / 24.4 x 20.6 cm
