Product Overview

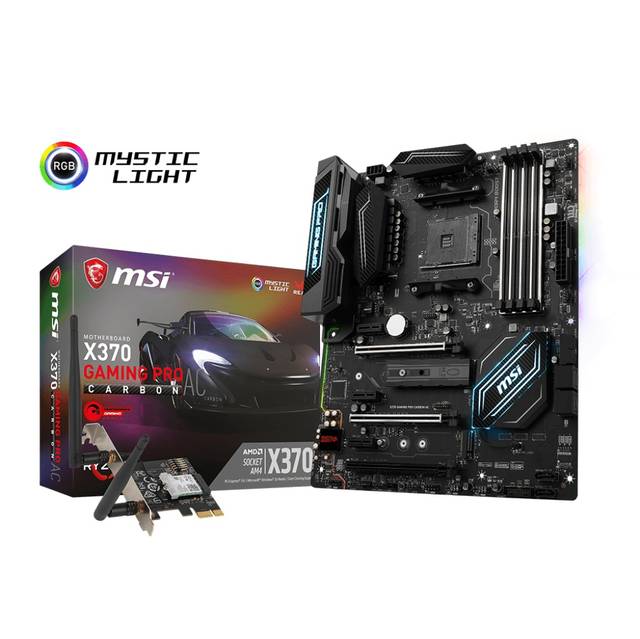

Mfr Part Number: X370 GAMING PRO CARBON AC CPU: Socket AM4 Supports AMD RYZEN Series/ 7th Gen A-series/ Athlon Processors Chipset: AMD X370 Memory: 4x DDR4-3200(OC)+/ 2933(OC)/ 2667(OC)/ 2400/ 2133/ 1866 MHz Slots, Dual Channel, ECC, Non-ECC, Max Capacity of 64GB Slots: 2x PCI-Express 3.0 x16 Slots, 1x PCI-Express 2.0 x16 Slot (runs at x4), 3x PCI-Express 2.0 x1 Slots Multi-Graphics: Supports 3-Way/ 2-Way AMD CrossFireX and 2-Way NVIDIA SLI Technology Storage: SATA: 6x SATA3 Ports, Support RAID 0, 1, 10 M.2: 2x M.2 Ports (Key M), One supports PCIe 3.0 x4 (RYZEN series processors) or PCIe 3.0 x2 (7th Gen A-series/ Athlonprocessors) and SATA 6Gb/s 2242/ 2260 /2280/ 22110 storage devices, One supports PCIe 2.0 x4 and SATA 6Gb/s 2242/ 2260 /2280 storage devices Audio: Realtek ALC1220 7.1-Channel High Definition Audio CODEC LAN: Intel I211AT Gigabit LAN Controller; Intel Dual Band Wireless-AC 3168 Card; Bluetooth 4.2 (BR/EDR, BLE) Ports: 2x USB 3.1 Gen2 Ports (1 Type-A rear, 1 Type-C rear), 8x USB 3.1 Gen1 Ports (4 Type-A rear, 4 via headers), 6x USB 2.0 Ports (2 Type-A rear, 4 via headers), 1x PS/2 Keyboard/Mouse Combo Port, 1x HDMI Port, 1x DVI-D Port, 1x RJ45 LAN Port, 1x Optical S/PDIF Out, Audio I/O Jacks Power Connector: 1x 24-pin ATX Main Power Connector, 1x 8-pin ATX 12V Power Connector Form Factor: ATX, 12.0 x 9.6 inch / 30.5 x 24.4 cm
