Product Overview

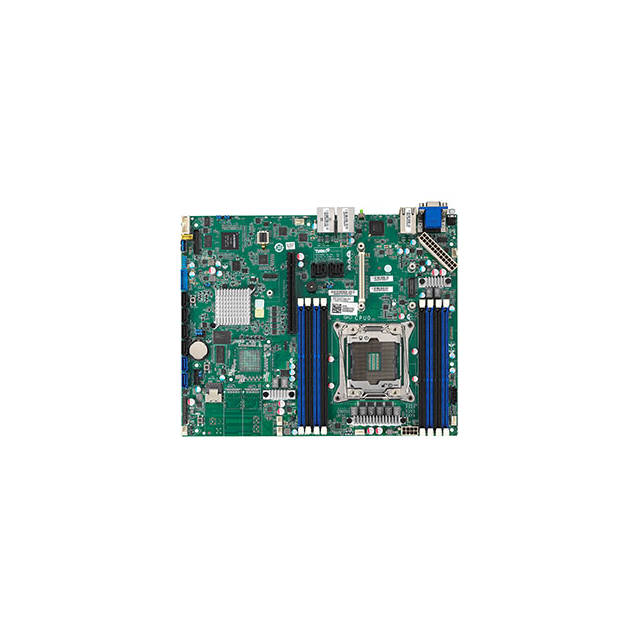

Mfr Part Number: S5620GM2NRE CPU: LGA2011 Supports Intel Xeon E5-2600/ E5-1600 v3/v4 series processors Supports up to 160W TDP Chipset: Intel C612 PCH Memory: 8x DDR4-2400/2133/1866/1600 DIMM Slots, 4 Channels per CPU, Supports up to 256GB Registered Memory or 512GB Load Reduced Memory or 1024GB Load Reduced 3DS Memory Slots: 1x PCI-Express 3.0 x16 Slot SATA: 10x SATA3 Ports (4 via Mini-SAS), Supports RAID 0, 1, 5, 10 Video: Aspeed AST2400 Graphic LAN: 2x Intel I210-AT Dual Gigabit Ethernet Controllers (1 port shared with IPMI) Ports: 5x USB3.0 Ports (2 rear, 2 via cable,1 Type-A), 4x USB 2.0 Ports (2 rear, 2 via cable), 1x VGA Port, 2x RJ45 LAN Ports Power Connector: 1x 24pin Power Connector, 2x 8pin Power Connectors Form Factor: ATX, 12.0 x 9.6 in / 305.0 x 243.8 mm RoHS Compliant
