Product Overview

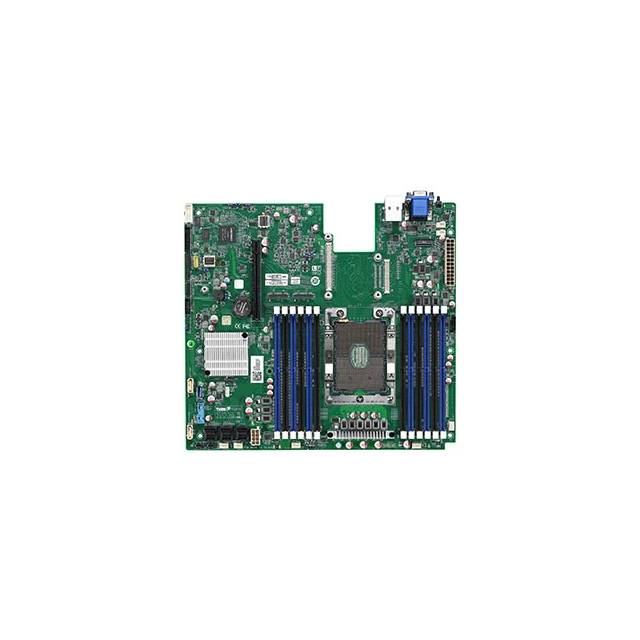

Mfr Part Number: S5630GMR CPU: LGA3647 Support Intel Xeon Scalable Processor Supports up to 205W TDP Chipset: Intel C621 PCH Memory: 12x DDR4-2666 DIMM Slots, 6 Channel, Supports up to 384GB Registered Memory or 768GB Load Reduced Memory or 1536GB Registered 3DS Memory/ Load Reduced 3DS Memory Slots: 1x PCI-Express 3.0 x16 Slot, 1x PCI-Express 3.0 x 8 OCP 2.0 Slots (conn.A+conn.B) SATA: 14x SATA3 Ports (12 via Mini-SAS), Support RAID 0, 1, 5, 10 Video: Aspeed AST2500 Graphics LAN: 1x Realtek RTL 8211E PHY Dedicated IPMI LAN Ports: 5x USB 3.0 Ports (2 rear, 2 via cable, 1 type A), 2x Serial Ports (1 rear, 1 header), 1x VGA Port, 1x RJ45 Dedicated for IPMI Power Connector: 1x 24pin ATX Power Connector, 1x 8pin ATX Power Connector Form Factor: SSI CEB, 12.0 x 10.9 inch / 305.00 x 276.86 mm RoHS Compliant
