Product Overview

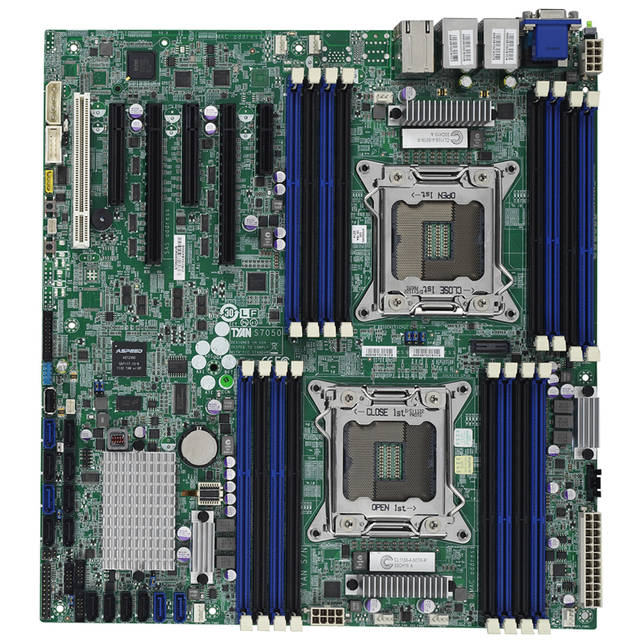

Mfr Part Number: S7050WGM4NR CPU: Dual LGA2011; Supports Intel Xeon E5-2600 Series Processors; QPI up to 8.0GT/s; Supports up to 150W TDP Chipset: Intel C602 Memory: 16x 240pin DDR3-1600/1333/1066/800 DIMM Slots, Quad Channel, ECC, Supports up to 128GB Unbuffered Memory or 256GB Registered Memory Slots: 2x PCI-Express x16 Slots (x16 link or x8 link); 2x PCI-Express x8 Slots (x8 link or x0 link); 1x PCI-Express x4 Slot; 1x 32-bit PCI Slot SAS: Intel C602 Controller, Supports 8x SAS 3.0Gbps Ports, Supports RAID 0/1/10 SATA: 2x SATA3 Ports, 4x SATA2 Ports, Supports RAID 0, 1, 10 Audio: Realtek ALC262 High Definition Audio CODEC Video: Aspeed AST2300 Graphic Controller LAN: Integrated Dual Intel 82574L and Intel I350-AM2 Gigabit Ethernet Controller Ports: 7x USB 2.0 Ports (4 rear, 2 front, 1 type A onboard); 2x Serial Ports(1 rear, 1 header); 1x VGA Port; 4x RJ45 LAN Ports Form Factor: SSI EEB, 12.0 x 13.0 inch / 305.0 x 330.0 mm
