Product Overview

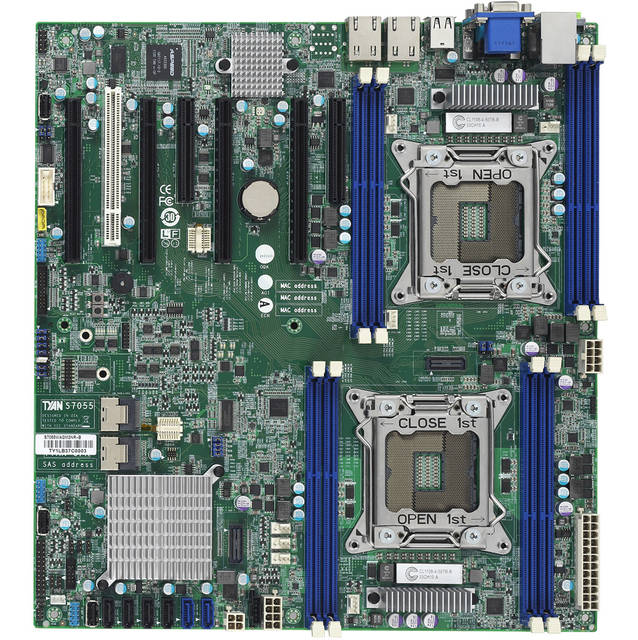

Mfr Part Number: S7055AGM3NR CPU: Dual LGA2011; Supports Intel Xeon E5-2600 Series Processors; QPI up to 8.0GT/s; Supports up to 150W TDP Chipset: Intel C602 Memory: 8x 240pin DDR3-1333/1066/800 DIMM Slots, Quad Channel, ECC, Supports up to 64GB Unbuffered Memory or 128GB Registered Memory Slots: 4x PCI-Express 3.0 x16 Slots; 1x PCI-Express 2.0 x8 Slot; 1x 32-bit PCI Slot SATA: 2x SATA3 Ports, 4x SATA2 Ports, Supports RAID 0, 1, 5, 10 Audio: Realtek ALC262 High Definition Audio CODEC Video: Aspeed AST2300 Graphic Controller LAN: Integrated Intel 82574L / Intel I350-BT2 Gigabit Ethernet Controller Ports: 11x USB 2.0 Ports (4 rear, 6 via cable, 3 type A onboard); 2x Serial Ports (1 rear, 1 header); 1x VGA Port; 3x RJ45 LAN Ports; Audio I/O Jacks Form Factor: SSI EEB, 12.0 x 13.0 in / 305.0 x 330.0 mm
