Product Overview

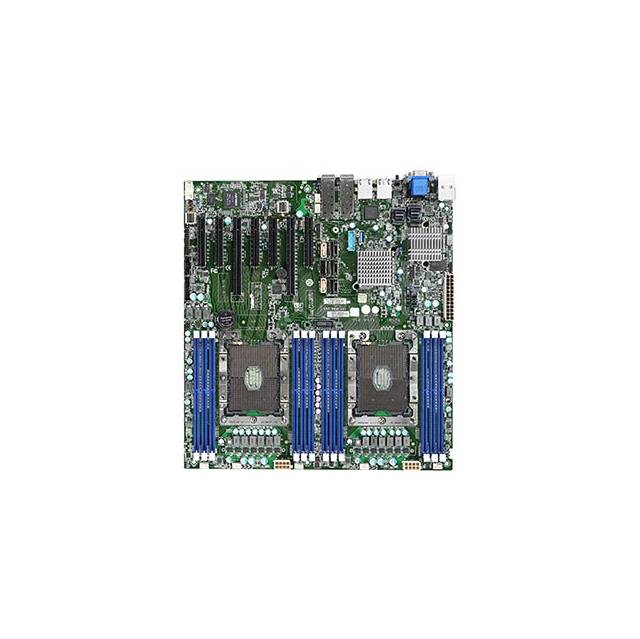

Mfr Part Number: S7103GM2NR-2F-L2 CPU: Dual LGA3647 Support Intel Xeon Scalable Processor Up to 10.4/9.6 GT/s Supports up to 205W TDP Chipset: Intel C622 Memory: 12x DDR4-2666/2400/2133 DIMM Slots, 6 Channels per CPU, Supports up to 384GB Registered Memory or 768GB Load Reduced Memory Slots: 2x PCI-Express 3.0 x 16 Slots, 5x PCI-Express 3.0 x 8 Slots SATA: 14x SATA3 Ports (12 via Mini-SAS), Support RAID 0, 1, 5, 10 SAS: 3x Mini-SAS Connectors (support 12 ports), Support RAID 0, 1, 5, 10 Video: Aspeed AST2500 BMC Graphics LAN: Intel I350-AM2 and Intel C622 PCH 10GbE SFP+ Ethernet Ports; 1x Realtek RTL 8211E PHY Dedicated IPMI LAN Ports: 5x USB 3.0 ports (2 via cable, 2 at rear, 1 Type-A), 1x VGA Port, 2x 10GbE SFP+ LAN Ports, 1x Dedicated IPMI RJ45 LAN Port Power Connector: 1x 24pin Power Connector, 1x 8pin Power Connector Form Factor: EATX, 12.0 x 13.0 inch / 305.0 x 330.0 mm RoHS Compliant
