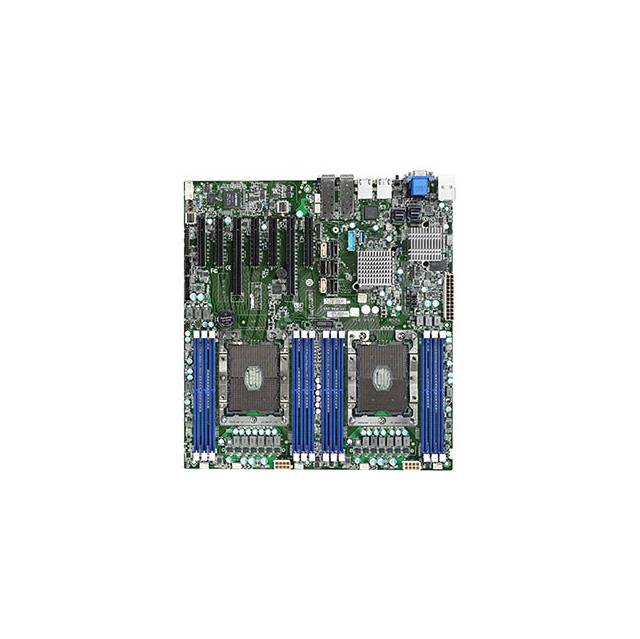

Product Overview

Mfr Part Number: S7103WGM4NR-2F-L2 CPU: Dual LGA3647 Support Intel Xeon Scalable Processor up to 10.4/ 9.6 GT/s up to 205W TDP Chipset: Intel C622 Memory: 12x DDR4-2666/ 2400/ 2133 DIMM Slots, 6 Channels per CPU, ECC, Supports up to 384GB Registered Memory or 768GB Load Reduced Memory Slots: 2x PCI-Express 3.0 x16 Slots, 5x PCI-Express 3.0 x8 Slots SATA: 14x SATA3 Ports(12 via Mini-SAS), Support RAID 0, 1, 5, 10 SAS: 8x Mini-SAS Connectors, Support RAID 0, 1, 5, 10 Video: Aspeed AST2500 Graphics LAN: 2x Intel I350-AM2 Gigabit Ethernet Controllers, 2x 10GbE SFP+ Gigabit Ethernet Controller, 1x Realtek RTL 8211E PHY Dedicated IPMI LAN Ports: 5x USB 3.0 Ports (2 rear, 2 via cable, 1 Type-A), 1x VGA Port, 2x RJ45 LAN Ports, 2x 10GbE SFP+ LAN Ports, 1x Dedicated for IPMI Power Connector: 1x 24pin Power Connector, 1x 8pin Power Connector Form Factor: EATX, 12.0 x 13.0 inch / 305.0 x 330.0 mm RoHS Compliant
