Product Overview

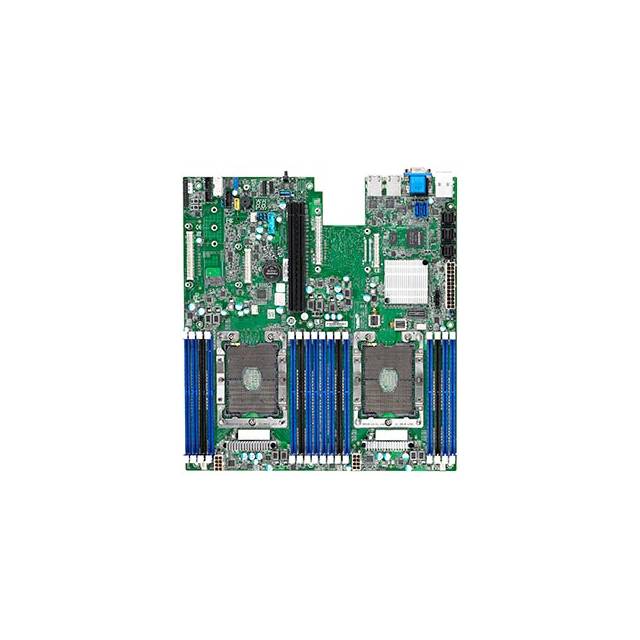

Mfr Part Number: S7106GM2NR CPU: Dual LGA3647 Support Intel Xeon Scalable Processor Up to 10.4/9.6 GT/s Supports up to 205W TDP Chipset: Intel C621 Memory: 16x DDR4-2666 DIMM Slots, 6 Channels per CPU, Supports up to 512GB Registered Memory or 1024GB Load Reduced Memory or 768GB Load Reduced 3DS Memory Slots: 2x PCI-Express 3.0 x24 Slots, 2x PCI-Express 3.0 x16 OCP 2.0 Slots (conn.A+conn.B) Storage: SATA: 14x SATA3 Ports (12 via Mini-SAS), Support RAID 0, 1, 5, 10 M.2: 1x M.2 Port, supports type 2280/2260/2242 by PCI-E interface Video: Aspeed AST2500 BMC Graphics LAN: 2x Intel I210-AT Gigabit Ethernet Controllers; 1x Realtek RTL 8211E PHY Dedicated IPMI LAN Ports: 5x USB 3.0 ports (2 via cable, 2 rear, 1 Type-A), 2x USB 2.0 ports (rear), 2x VGA Port (1 via cable, 1 rear), 2x Serial Ports (1 rear, 1 via header), 2x RJ45 LAN Ports, 1x Dedicated for IPMI Power Connector: 1x 24pin Power Connector, 2x 8pin Power Connectors Form Factor: EATX, 12.0 x 13.0 inch / 305.0 x 330.0 mm RoHS Compliant
