Product Overview

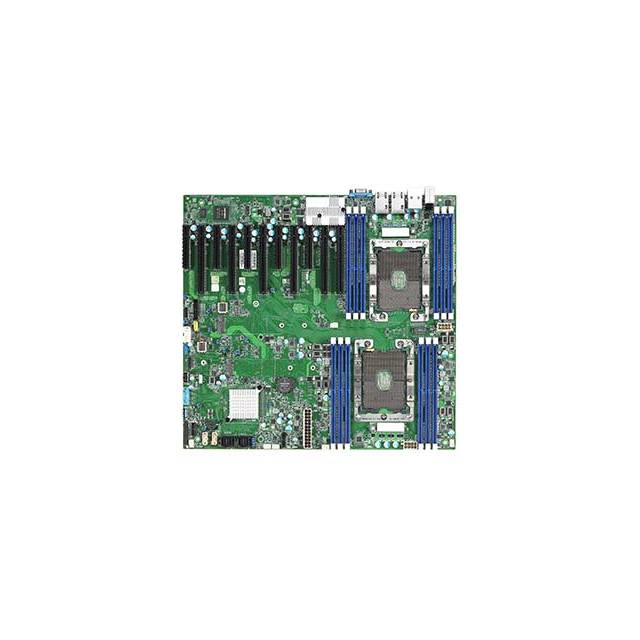

Mfr Part Number: S7105AGM2NR-2T CPU: Dual LGA3647 Support Intel Xeon Scalable Processor Up to 10.4/9.6 GT/s Supports up to 205W TDP Chipset: Intel C621 Memory: 12x DDR4-2666 DIMM Slots, 6 Channels per CPU, Supports up to 384GB Registered Memory or 768GB Load Reduced Memory or 1536GB 3DS Registered Memory/ 3DS Load Reduced Memory Slots: 1x PCI-Express 3.0 x16 Slot, 5x PCI-Express 3.0 x 16 Slots Storage: �??SATA: 10x SATA3 Ports (8 via Mini-SAS), Support RAID 0, 1, 5, 10 M.2: 2x NVMe M.2 slots, Support 22110/2280 (by PCI-E & SATA interface) SAS: 2x Mini-SAS Connectors (8-ports), Support RAID 0, 1, 5, 10 Video: Aspeed AST2500 Graphics LAN: 2x Intel X550-AT2 10GbE Ethernet Ports; 1x Realtek RTL 8211E PHY Dedicated IPMI LAN Ports: 3x USB 3.0 ports (2 at rear, 1 Type-A), 1x VGA Port, 2x RJ45 10GbE LAN Port, 1x Dedicated for IPMI Power Connector: 1x 24pin Power Connector, 2x 8pin Power Connectors Form Factor: Proprietary, 14.2 x 13.2 inch / 361.5 x 336.2 mm RoHS Compliant
