Product Overview

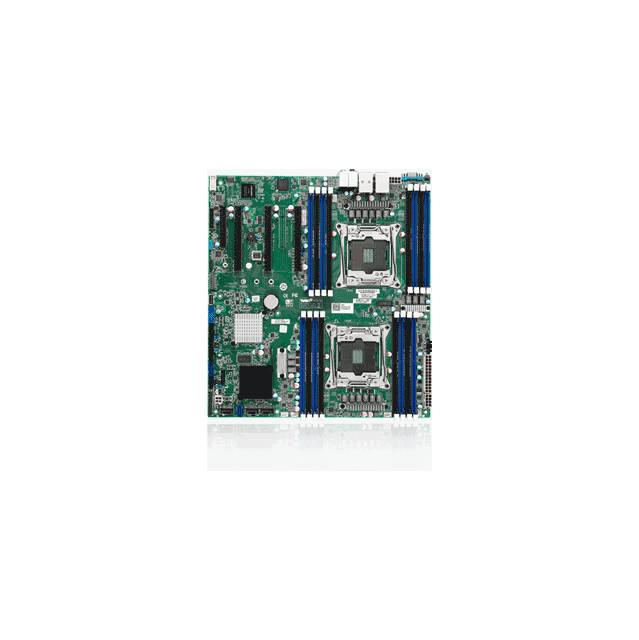

Mfr Part Number: S7070GM2NR CPU: Dual LGA2011 Support Intel Xeon E5-2600 v3 Series Processors Up to 9.6/ 8.0/ 6.4 GT/s Supports up to 160W TDP Chipset: Intel C612 Memory: 16 x DDR4-2133/1866/1600 DIMM Slots, Quad Channel, Supports up to 512GB Registered Memory or 1,024GB Load Reduced Memory or 2,048GB 3DS Load Reduced Memory Slots: 1x PCI-Express 3.0 x 8 Slot, 3x PCI-Express 3.0 x 16 Slots SATA: 6x SATA3 Ports, 4x SATA3 Ports (via 1x Mini-SAS), Support RAID 0, 1, 5, 10 Audio: Realtek ALC892GR Audio CODEC Video: Aspeed AST2400 Graphics LAN: Intel I350-AM2 Gigabit Ethernet Controller Ports: 4 x USB3.0 ports (2 at rear, 2 via cable), 5x USB 2.0 Ports (1 stack-up ports, 1 type A header, 2 via cable), 1 x Serial Port, 1x VGA Port, 2x RJ45 LAN Ports Power Connector: 1x 24pin Power Connector, 2x 8pin Power Connectors, 4pin PCI-E Power Connector Form Factor: SSI EEB, 12.0 x 13.0 inch / 305.0 x 330.0 mm RoHS Compliant
