Product Overview

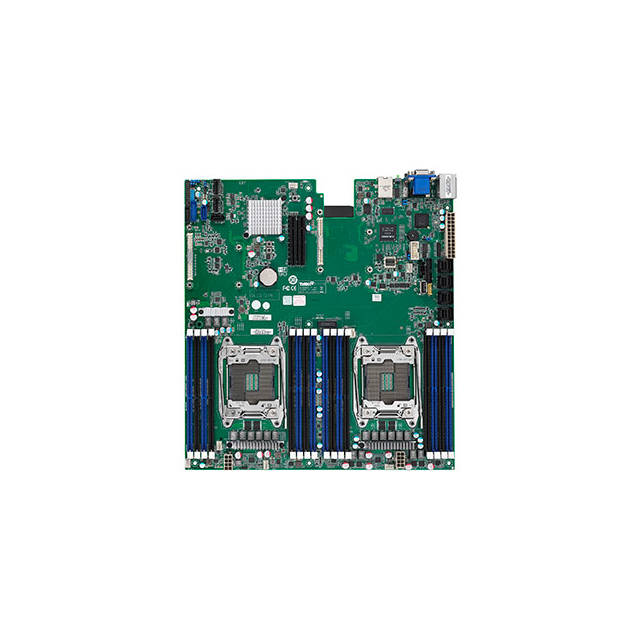

Mfr Part Number: S7076GM2NRE CPU: Dual LGA2011 Supports Intel Xeon E5-2600 v3/v4 product families Supports up to 160W TDP Chipset: Intel C612 PCH Memory: 16x DDR4-2400/2133/1866/1600 DIMM Slots, 4 Channels per CPU, Supports up to 512GB Registered Memory or 1024GB Load Reduced Memory or 2048GB Load Reduced 3DS Memory Slots: 2x PCI-Express 3.0 x8 Slots SATA: 10x SATA3 Ports, Supports RAID 0, 1, 5, 10, 4x SFF-8643 NVMe Ports Video: Aspeed AST2400 Graphic LAN: 2x Intel I350-AM2 Gigabit Ethernet Controllers (1 port shared with IPMI) Ports: 4x USB3.0 Ports (2 rear, 2 via cable), 3x USB 2.0 Ports (2 rear, 1 Type A header), 1x VGA Port; 2x RJ45 LAN Ports Power Connector: 1x 24pin Power Connector, 2x 8pin Power Connectors Form Factor: EATX, 12.0 x 13.0 in / 305.0 x 330.0 mm RoHS Compliant
