Product Overview

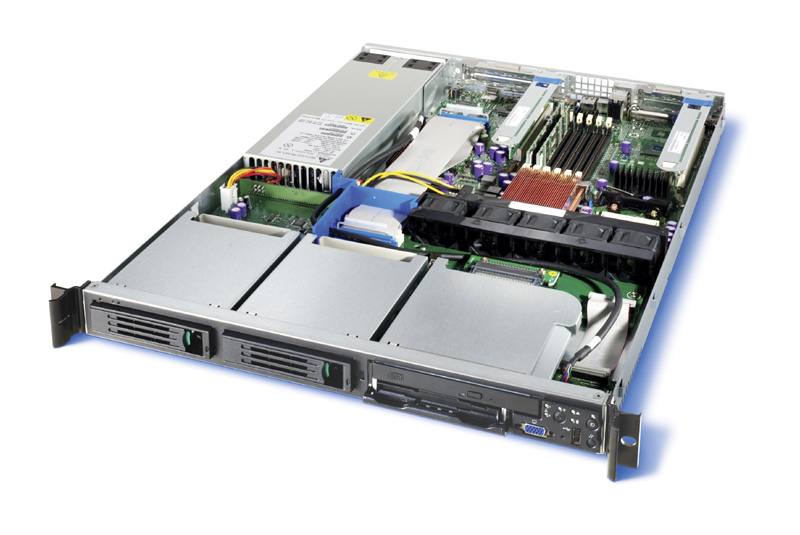

Innovative, 1U Rack-Optimized Server Chassis for Reliable High-Density Solutions High-density rack-mount servers are emerging as one of the strongest segments in the entry-level server space. Their thin design saves space and simplifies the installation, operation, and maintenance of co-located systems. The new Intel® Server Chassis SR1300 provides an ideal foundation for such systems, helping businesses to meet the challenges of consolidating front-end and general-purpose servers.
Specifications
Model
SR1300
Motherboard
Specifically designed for and validated with the Intel® Server Board SE7500WV2
SCSI Drive Bay
Up to three hot-swap Ultra160 SCSI hard-drive bays with SCSI backplane option, Easily expandable storage capacity, SCSI integrity, and up to 160 MB/sec data-transfer rate with hard drives
IDE Drive Bay
Up to two cold-swap ATA/100 (IDE) hard-drive bays with ATA backplane option, Generous storage capacity, ATA (IDE) RAID support with up to 100 MB/sec data-transfer rate
Additional Drive Bay
Additional bay for third hard drive or optional slim-line CD-ROM/floppy-drive module, Flexible system-configuration options
Expansion Slots
Two expansion slots on dual-peer PCI riser cards with up to 64-bit/100MHz support, Room for two high-throughput adapter cards operating on separate buses
USB & Video
Front-access USB and video ports: Easy portable peripheral and video attachment
Cooling
Five fan modules and two power-supply fans: Advanced cooling to support dual Intel® Xeon® processors (PWT processor cooling fan and duct not necessary)
Security and availability
Chassis intrusion protection and support for Intel® Server Management software, including automatic health monitoring, proactive messaging, and post-issue diagnostics
Power Supply
350-watt PFC power supply: Ample power and availability for full 1U system integration, limited risk of power surges, reduced waste
URL
http://www.intel.com/design/servers/sr1300/Index.htm
